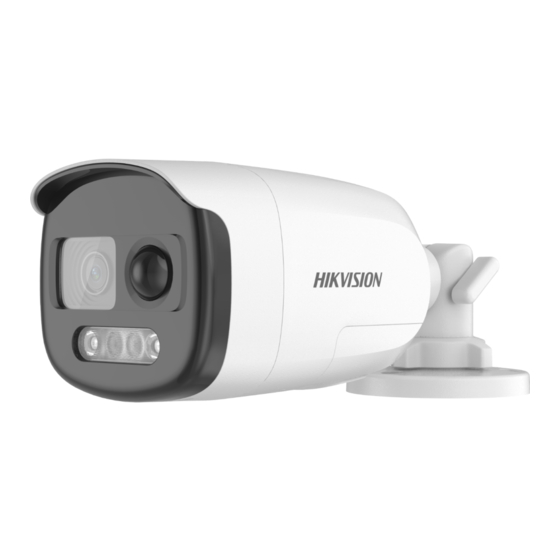

3K 4K ColorVu Bullet & Turret
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type I Camera
Type II Camera
This manual may contain several technical mistakes or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.
Type
User Manual
Model
DS-2CE12KF3T-PIRXO
DS-2CE12UF3T-PIRXO
DS-2CE72KF3T-PIRXO
DS-2CE72UF3T-PIRXO
01000020220329
Camera
Advertisement
Table of Contents
Related Manuals for HIKVISION DS-2CE12KF3T-PIRXO
Summary of Contents for HIKVISION DS-2CE12KF3T-PIRXO
- Page 1 Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Type Model DS-2CE12KF3T-PIRXO Type I Camera DS-2CE12UF3T-PIRXO DS-2CE72KF3T-PIRXO Type II Camera DS-2CE72UF3T-PIRXO This manual may contain several technical mistakes or printing errors, and the content is subject to change without notice.
- Page 2 With the philosophy of “Technology for the Good”, Hikvision requests that every end user of video technology and video products shall comply with all the applicable laws and regulations, as well as ethical customs, aiming to jointly create a better community.
- Page 3 establishing and constantly optimizing network security. Video products have made great contributions to the improvement of social security around the world, and we believe that these products will also play an active role in more aspects of social life. Any abuse of video products in violation of human rights or leading to criminal activities are contrary to the original intent of technological innovation and product development.
- Page 4 The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (https://www.hikvision.com/). Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.
-
Page 5: Regulatory Information
UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS. Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. - Page 6 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
-
Page 7: Product Features
Do not aim the camera at the sun or extra bright places. The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam. - Page 8 Make sure the wall is strong enough to withstand three times the weight of the camera and the mount. If the product does not function properly, contact your dealer or the nearest service center. DO NOT disassemble the camera for repair or maintenance by yourself.
- Page 9 Figure 2-3 Fix the Camera to the Junction Box Cover 6. Secure the junction box body on the wall with three PA4 × 25 screws (supplied). Figure 2-4 Secure the Junction Box on the Wall 7. Route the cables through the bottom cable hole or side cable hole of the junction box and connect the cables.
- Page 10 Figure 2-7 3-Axis Adjustment 1). Rotate the enclosure to adjust the pan position [0° to 360°]. 2). Move the main body up and down to adjust the tilt position [0° to 75°]. 3). Rotate the main body to adjust the rotation position [0°...
-
Page 11: Menu Description
1. Drill Φ 10 mm screw holes in the wall where you want to install the wall mount. 2. Use four M6 expansion bolts to fix the wall mount onto the wall. Figure 2-10 Fix the Wall Mount 3. Use three PM4 screws to fix the installation plate onto the wall mount. -
Page 12: Video Format
VIDEO FORMAT EXPOSURE MODE SLOW SHUTTER ANTI - BANDING EXPOSURE BACK EXIT SAVE & EXIT IMAGE MODE WHITE BALANCE BRIGHTNESS CONTRAST VIDEO SHARPNESS SETTINGS SATURATION 3DNR BACK EXIT SAVE & EXIT LIGHT SMART THRESHOLD LIGHT MAIN MENU LEVEL BACK EXIT SAVE &... -
Page 13: Video Settings
BLC (Backlight Compensation) BLC (Backlight Compensation) compensates light to the object in the front to make it clear, but this may cause over-exposure of the background where the light is strong. HLC (Highlight Compensation) HLC stands for highlight compensation. The camera detects strong spots (over-exposure portion of image) and reduces the brightness of strong spots to improve the overall images. -
Page 14: Image Mode
IMAGE MODE IMAGE MODE is used to adjust the image saturation, and you can set it to STD (Standard), HIGH-SAT (High Saturation), or HIGHLIGHT (better indoor facial details). WHITE BALANCE White balance, the white rendition function of the camera, is to adjust the color temperature according to the environment. - Page 15 automatically turn on the white light and set it to 1-level brightness. 3.5 FUNCTIONS In the FUNCTIONS submenu, you can set the motion detection and the privacy mask of the camera. 3.5.1 ALARM SETTINGS ALARM MODE In the ALARM mode, you can select the ALARM MODE as SOLID, or FLASHING.
-
Page 16: Factory Default
be triggered. Up to 4 motion detection areas can be configured. MOTION DET MODE AREA 0 AREA 1 AREA 2 AREA 3 COLOR SENSITIVITY TRANSPARENCY BACK EXIT SAVE & EXIT Figure 3-5 MOTION Select a MOTION area.
