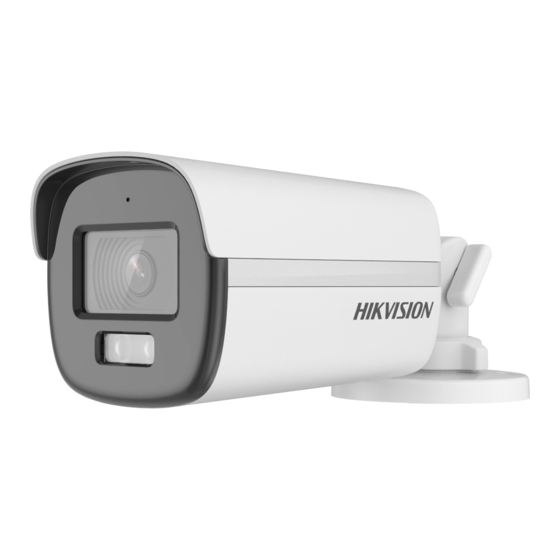

3K ColorVu Bullet & Turret Camera
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type I Camera
Type II Camera
Type III Camera
Type IV Camera
Type V Camera
This manual may contain several technical mistakes or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.
Type
User Manual
Model
DS-2CE12KF0T-FS
DS-2CE10KF0T-FS
DS-2CE10KF0T-PFS
DS-2CE72KF0T-FS
DS-2CE70KF0T-MFS
DS-2CE70KF0T-PFS
01000020210119
Advertisement
Table of Contents
Related Manuals for HIKVISION DS-2CE12KF0T-FS
Summary of Contents for HIKVISION DS-2CE12KF0T-FS
- Page 1 Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Type Model Type I Camera DS-2CE12KF0T-FS DS-2CE10KF0T-FS Type II Camera DS-2CE10KF0T-PFS Type III Camera DS-2CE72KF0T-FS Type IV Camera...
- Page 2 The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (https://www.hikvision.com/). Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.
-
Page 3: Regulatory Information
UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. - Page 4 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
-
Page 5: Product Features
Do not aim the camera at the sun or extra bright places. The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam. -
Page 6: Installation
1.2.3 Overview of Type III Camera Microphone Enclosure Switch Button Main Body Power Cord Base Video Cable Installation Plate Figure 1-3 Overview of Type III Camera Note: Press and hold the switch button for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS 1.2.4 Overview of Type IV Camera Base... - Page 7 Installation of Type I and Type II Camera Before you start: The installation of type I and type II camera are similar. Following guide takes type I as example. 2.1.1 Ceiling/Wall Mounting without Junction Box Steps: 1. Paste the drill template (supplied) to the installation location.
- Page 8 Figure 2-4 Secure the Junction Box on the Wall 7. Route the cables through the bottom cable hole or side cable hole of the junction box and connect the cables. 8. Fix the junction box cover on its body with three PM3 ×...
- Page 9 Triangle Mark Set Screw Figure 2-7 Dissemble the Camera iii. Secure the base to the ceiling with three PA4 × 25 screws (supplied). iv. Align the screw hole with the triangle mark to install the camera back to the base and secure it. Triangle Mark Figure 2-8 Install the Camera to Ceiling...
- Page 10 Junction Box Cover Installation Plate PM4 × 10 Figure 2-10 Fix the Camera to the Junction Box For Type IV and Type V camera: PM3 × 13 Junction Box Cover M4 × 10 Installation Plate/Base Figure 2-11 Fix the Camera to the Junction Box 7.
-
Page 11: Menu Description
Figure 2-13 Fix the Installation Plate For Type IV camera: i. Refer to Step 3 of Section 2.2.1 to dissemble the camera ii. Use M4 × 10 screws to fix the base onto the wall mount. Figure 2-14 Fix the Base 4. -
Page 12: Video Format
VIDEO FORMAT EXPOSURE MODE ANTI - BANDING EXPOSURE BACK EXIT SAVE & EXIT IMAGE MODE WHITE BALANCE BRIGHTNESS CONTRAST VIDEO SHARPNESS SETTINGS SATURATION MIRROR BACK EXIT SAVE & EXIT AUDIO MAIN MENU VOLUME AUDIO BACK SETTINGS EXIT SAVE & EXIT LIGHT SMART THRESHOLD... -
Page 13: Video Settings
GLOBAL GLOBAL refers to the normal exposure mode which adjusts lighting distribution, variations, and non-standard processing. BLC (Backlight Compensation) BLC (Backlight Compensation) compensates light to the object in the front to make it clear, but this may cause over-exposure of the background where the light is strong. -
Page 14: Audio Settings
You can set the R-GAIN/B-GAIN value to adjust the shades of red/blue color of the image. Figure 3-4 WHITE BALANCE BRIGHTNESS Brightness refers to the brightness of the image. You can set the brightness value from 1 to 9 to darken or brighten the image. -
Page 15: Factory Default
LEVEL You can adjust the maximum brightness of supplement light. 3.6 FACTORY DEFAULT Reset all the settings except video format to factory defaults. 3.7 EXIT Move the cursor to EXIT and click Iris+ to exit the menu. 3.8 SAVE & EXIT Move the cursor to SAVE &...
