Configure The Networks - urmet domus IPerCom VOG 7 1761 Configuration Booklet

1.1.6 Configure the Networks

To configure the networks of the video door phone, follow the procedure below:
• Turn on the screen, if off, by tapping it at any point or by pressing the Home button.
• Press the icon to access the Top Page.
• Press the icon to access the video door phone parameter configuration page.

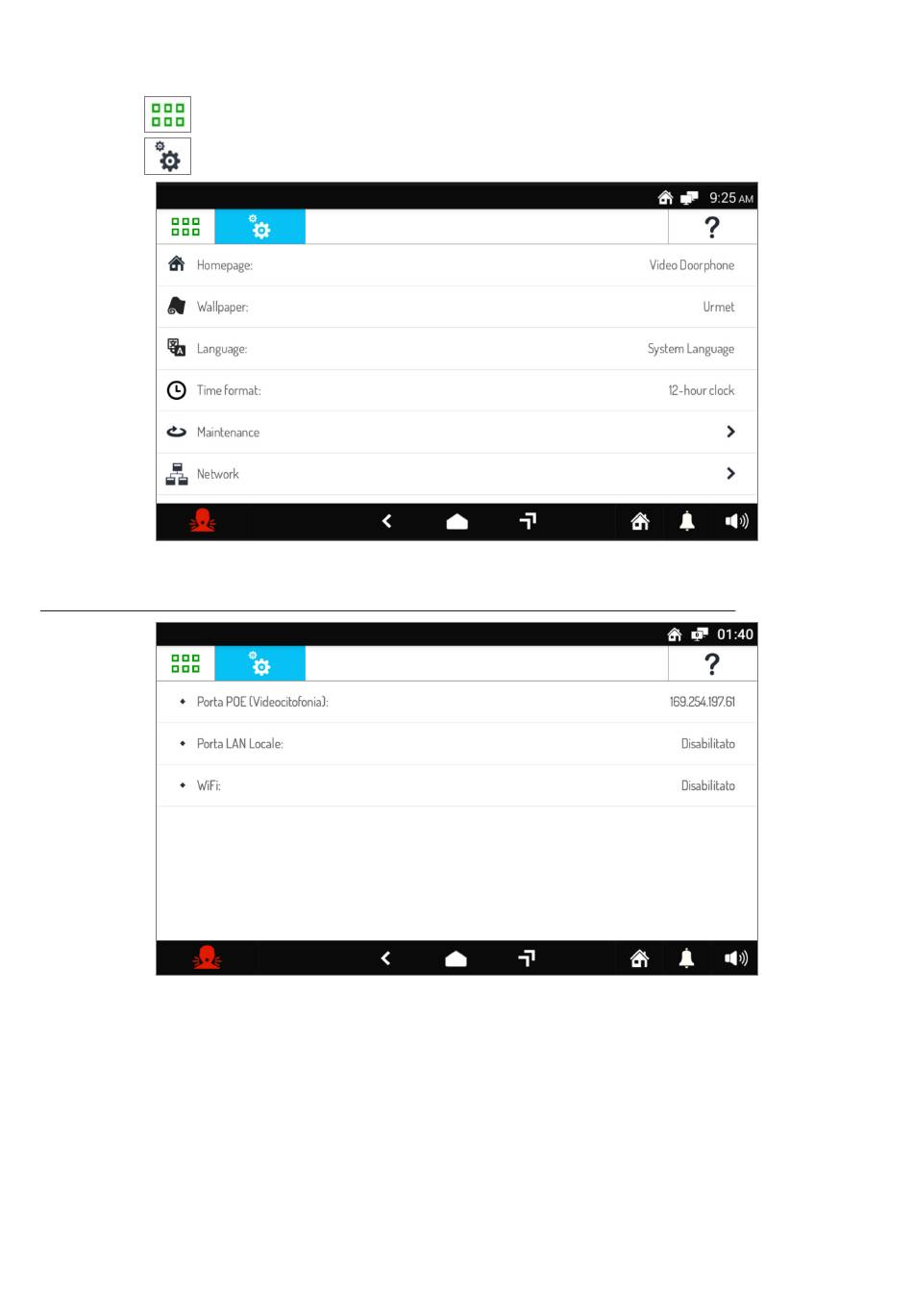

Press the Network parameter to display the screen where the available networks are listed.
The network settings identified as ''POE Port (Video Door Phone)'' cannot be changed.
The "LOCAL LAN PORT'' network and the WiFi network can be configured. When you tap the name of
a network or link, a pop-up window opens where you can enter and change the network parameters, as
shown below.
The second "LOCAL LAN PORT'' interface and the WiFi connection cannot co-exist.
13
DS1761-026
