MERLIN STEALTH
LIVE WIRE CONNECTION
Preferred connection method
The earth spikes are connected to one
wire of the fence and the wire is only
coupled to the other fence earth wires at
the main earth spike
EARTH WIRE CONNECTION WITHOUT
EARTH LOOP MONITORING

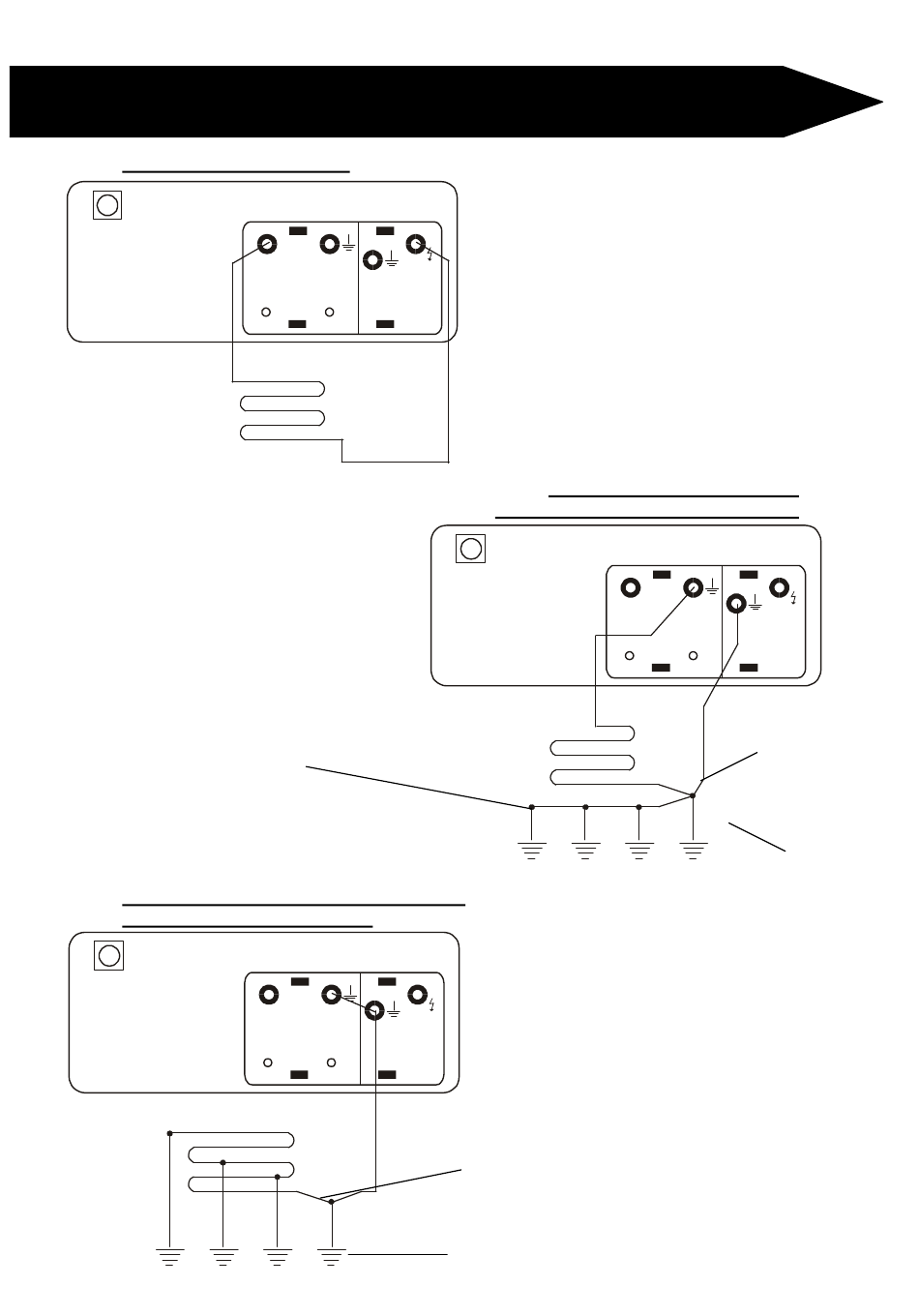

High voltage wiring diagram M15S & M18S
1
RETURN
EARTH
COMM
C
FENCE 1
1
RETURN
EARTH
COMM
C
FENCE 1
1
FENCE
OUT
EARTH WIRE CONNECTION
WITH EARTH LOOP MONITORING
1
Alternative connection method
FENCE
OUT
Fence earth wire to be connected from the
main earth spike, NOT straight from the
energizer
Main earth spike – install close to the
energizer
NOTE:
The installation and erection of the electric
fence to be done in South Africa according
to SANS 10222-3 latest edition. In other
countries according to the local
specifications.
1
RETURN
EARTH
COMM
C
FENCE 1
Main earth spike –
install close to the
energizer
16
1
FENCE
OUT
Fence earth wire to
be connected from
the main earth spike,
NOT straight from
the energizer
