MERLIN STEALTH
*Energizer to be mounted vertically against a flat surface, in well ventilated area.
*Avoid prolonged exposure to direct sunlight

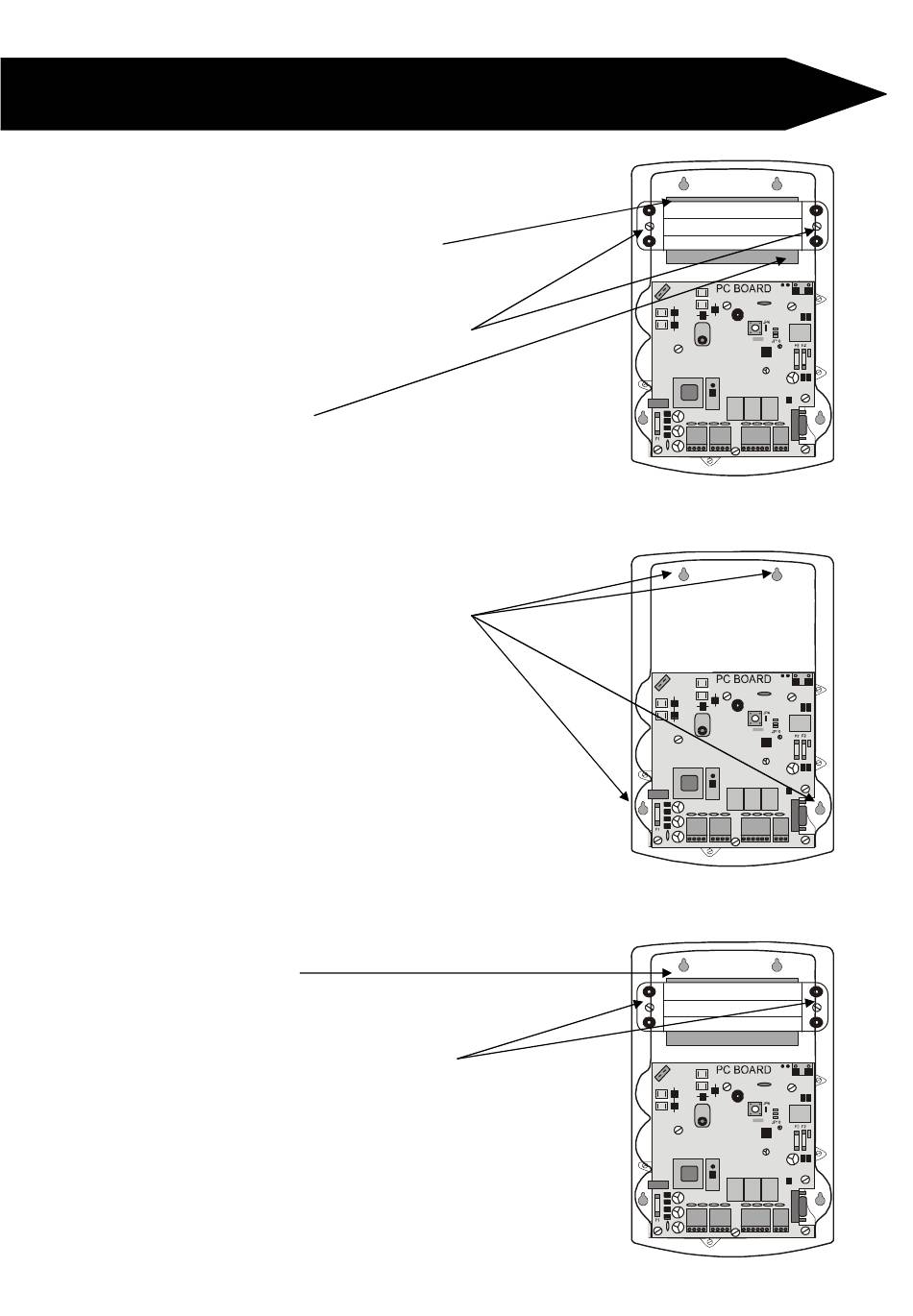

STEP 1: Disconnect mains. Open the lid by
removing the two cap screws. Unplug the
battery terminals if connected.
STEP 2: Remove screws and battery bracket
STEP 3: Remove battery
*Dispose of old battery according to legal requirements.
Do NOT replace with non-rechargeable battery!!
STEP 4: Drill 4 x 8mm holes for mounting the
unit. Four nail-in anchors are supplied with
the unit. Insert the plastic sleeve of the nail-in
anchor from the inside of the box and then
hammer the screw in with a screw driver and
hammer.
NB: Always insert the plastic sleeve from the
inside of the box.
STEP 5: Connect the Black battery lead to the
negative terminal of the battery.
Insert battery with the positive terminal to the
top.
STEP 6: Place the battery bracket back and
fasten the screws.
STEP 7: Connect the Red battery lead to the
positive terminal of the battery.
Close the lid by hooking the top of the lid in
first and then fasten the bottom down with the
two cap screws. Apply mains to the unit.
Mounting / Battery Replacement Procedures
12V 7AH Battery
12V 7AH Battery
14
