MERLIN STEALTH

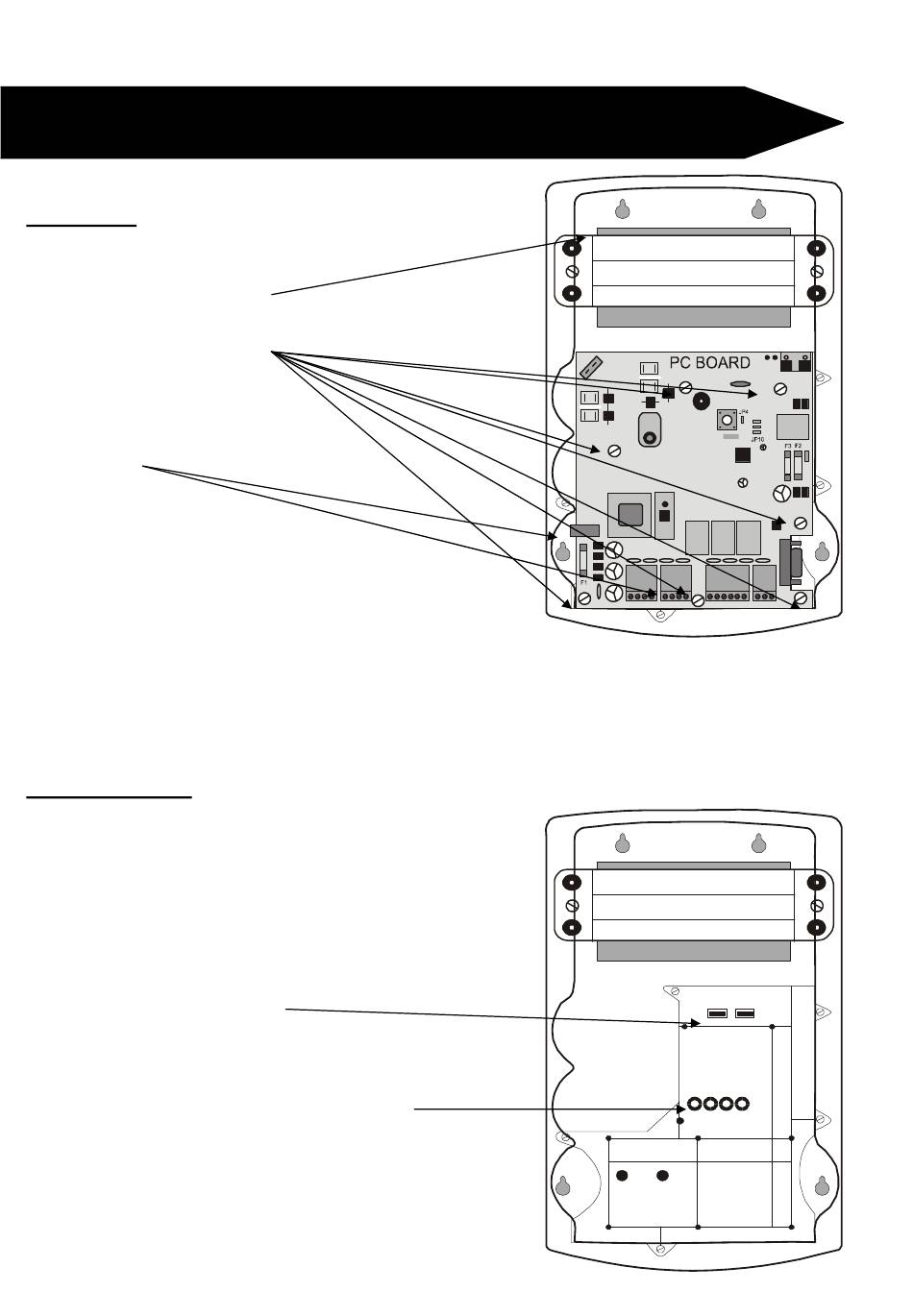

REMOVAL:
STEP 1: Disconnect mains and battery
terminals if connected
STEP 2: Remove screws
STEP 3: Remove all connectors from
PC Board
STEP 4: Gently pull PC Board straight
up to remove (connections on the
back)
REPLACEMENT:
STEP 5: Gently push PC Board back into
place
Take care that the spade connectors are
correctly positioned before pushing the
PC Board into place.
Also ensure that the opto-couplers (look
like
LED's)
are
before pushing the PC Board into place
STEP6: Insert and tighten all screws
STEP 7:
Reconnect all connectors to
PC Board
STEP 8: Reconnect battery terminals
PC Board Replacement Procedures
correctly
positioned
12V 7AH Battery
12V 7AH Battery
19
