2 PRESENTATION

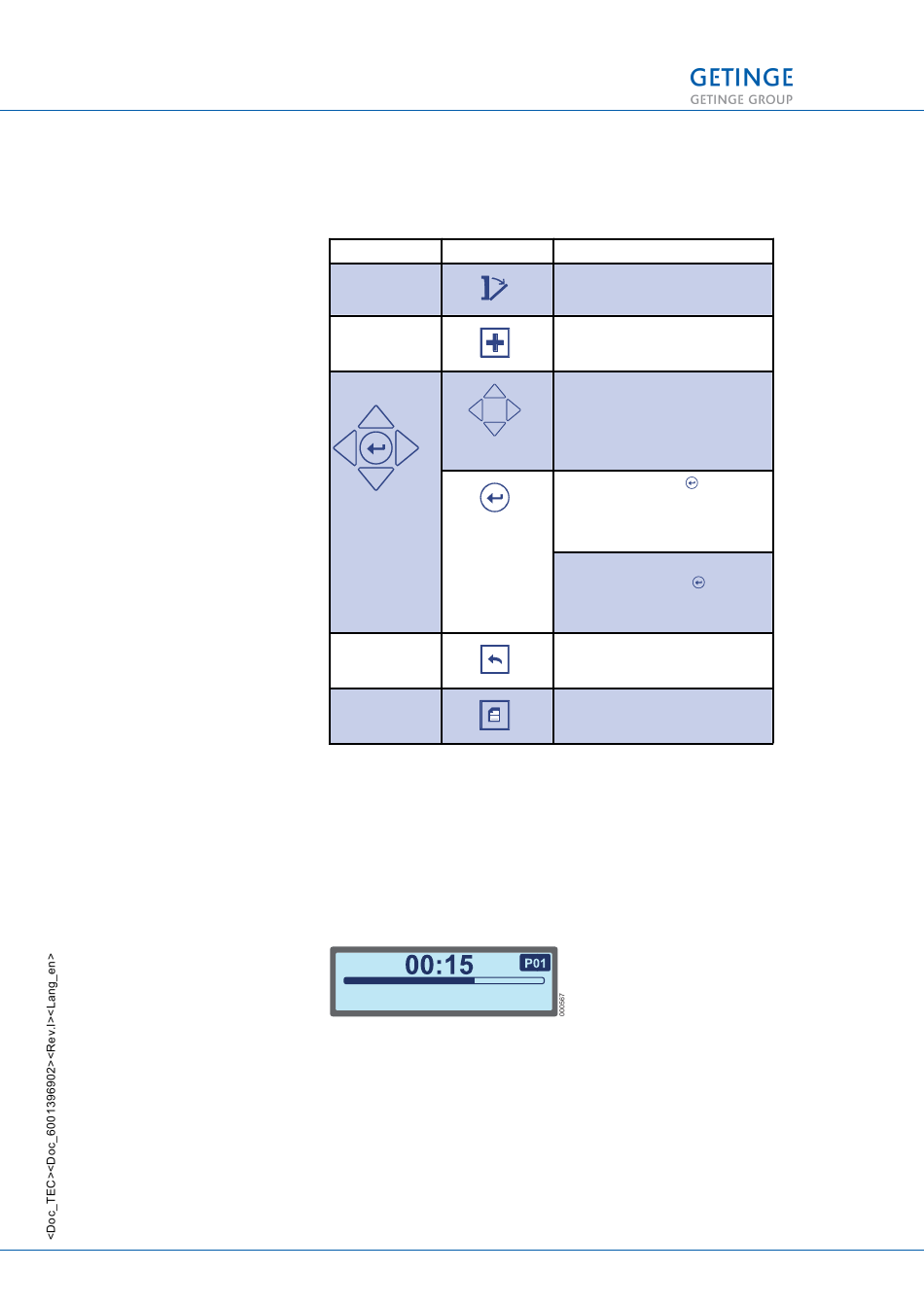

2.2.2 Control buttons

2.2.3 Window

2.2.3.1 Example of a Process window
14 (128)
The keys are used to navigate through the machine program and
to select functions.
Function Key
Open the door
More
Navigation
Back
Menu
Information is displayed in the window about the current process
(process window) and a number of various types of "pop-up"
windows (Alarm window, Information windows, Dialog window and
Input window).
91.2 °C 91.2 °C
TEMP CHAMBER TEMP IND CHAMBER
The process window displays the current process and the
remaining time. See also in the 3.1.3 Process screen section.
TECHNICAL MANUAL GETINGE WD15 CLARO
Description
The machine door unlocks and
opens.
Can be selected during a
process.
The Up, Down, Right, and Left
arrows are used to control the
cursor and other values in the
process diagram, also called
cursor keys.
In operating mode is used
as the START key and to
acknowledge the alarm to stop
the audible signal.
When navigating, the
machine's program is used
to select, enter, or confirm the
highlighted alternatives.
Return to the previous window
or menu, or undo an entry.
Go to main menu.
