Assembling The Adafruit Shield; Figure 4. Assembling The Adafruit 1.8" Tft Shield - ST Nucleo STM32F302R8 User Manual

Getting started with the demonstration
2.2.2

Assembling the Adafruit shield

The Adafruit TFT shield comes with all surface mount parts pre-soldered. User can install
the headers following the next steps:
•
Cut the breakaway header strip into sections to fit the holes on the edge of the shield:
two sections of 6 pins and two other sections of 8 pins are needed.
•
To align the header strips for soldering, insert them (long pins down) into the headers of
the STM32 Nucleo board using the connectors CN5, CN6, CN8 and CN9.
•
Place the shield over the header strips so that the short pins stick up through the holes.
•
Solder on each pin of the header onto the shield PCB to ensure good electrical contact.
The sequence is shown in
8/18
Figure 4.

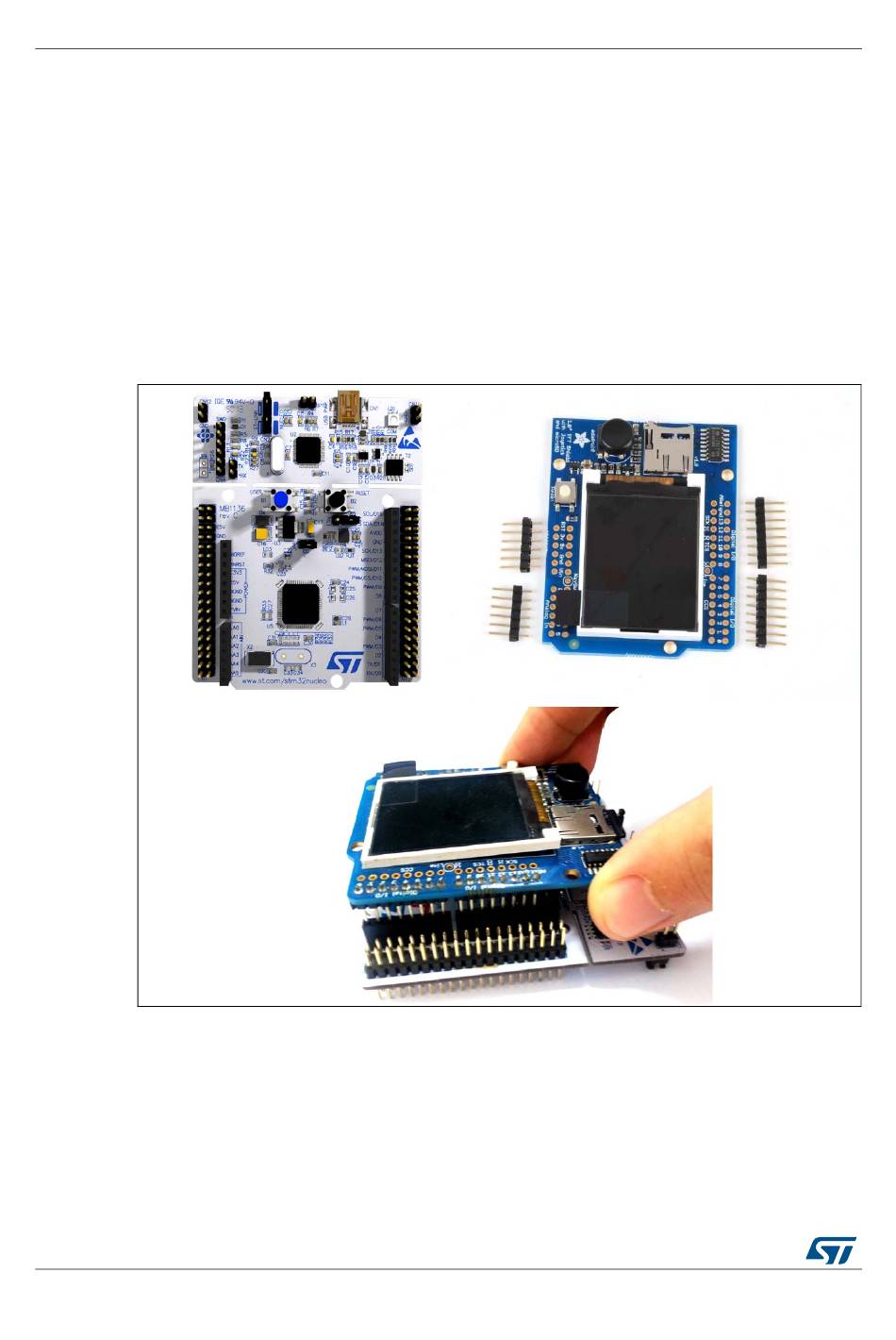

Figure 4. Assembling the Adafruit 1.8" TFT shield
