Immobilizer Interface With Oem Immobilizer Receiver (Alternative) - Directechs DB3 Installation Manual

Immobilizer interface (alternative installation) Immobilizer interface
For vehicles with Keyless Entry you must remove battery from OEM key (the OEM remote may differ from For vehicles with Keyless Entry you must remove battery from OEM key (the OEM remote may differ from
the models shown in the illustrations). the models shown in the illustrations).
Key Wrap for Push-to-Start (PTS)
- Make 4-6 loops and place them around the front of the plastic body of the vehicle's coded key as shown above.
- Make connections to the OEM Immobilizer Receiver as shown above.
- Test and secure mounted loops before reassembling the vehicle.
9
403.VW08 1.39 2020 Audi Q7 (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Note: OEM Immobilizer receiver is located in
center console near the arm rest.

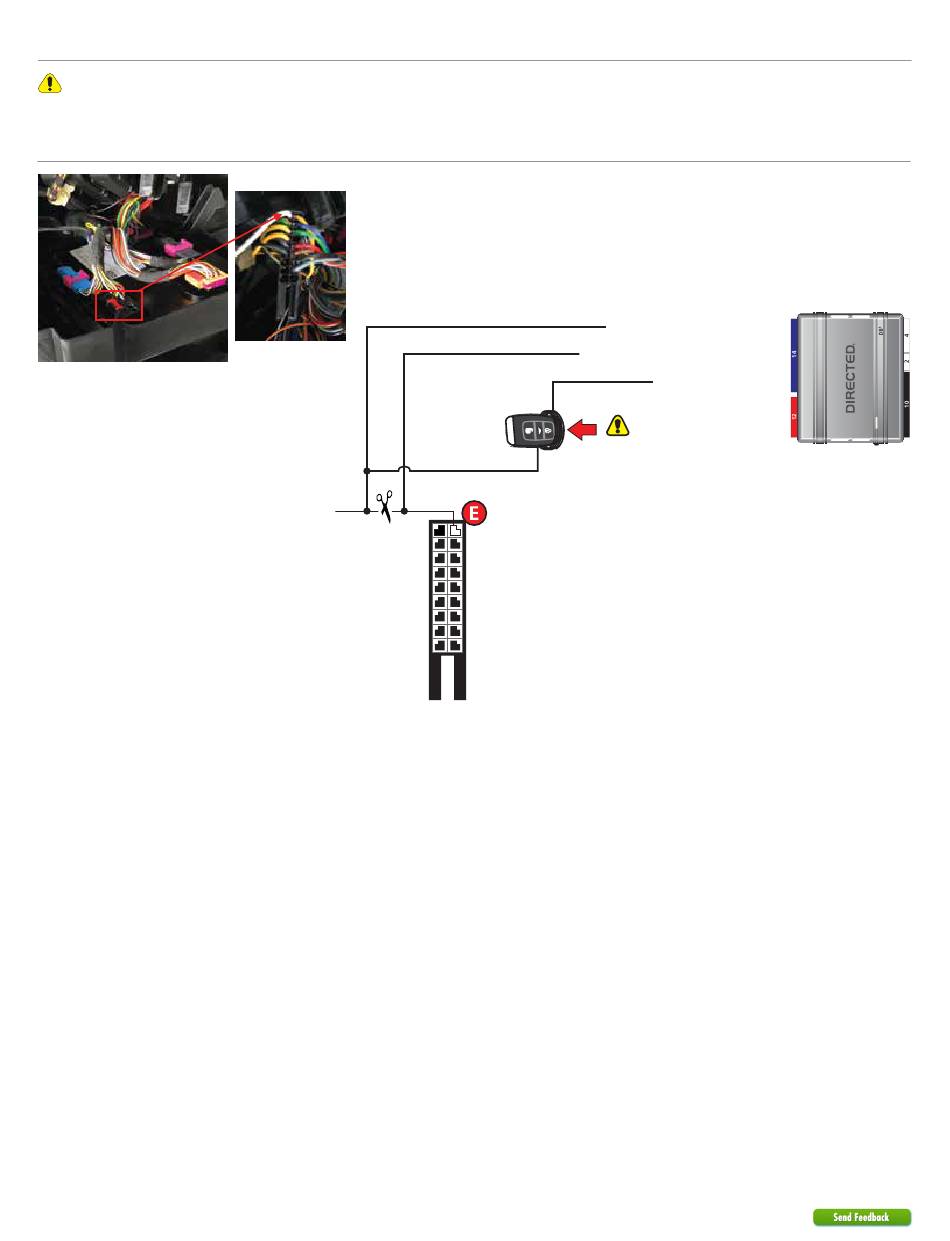

This diagram shows the alternative location and connections.
Cut
IMMO Antenna: 11
Yellow, pin 11
N.C Relay 2 (veh. side): Orange/Red: 10
Common Relay 2 (conn. side): Yellow/Red: 11
N.O. Relay 2: Brown/Red: 12
4-6 loops
Remove battery
from OEM
Remote Control
