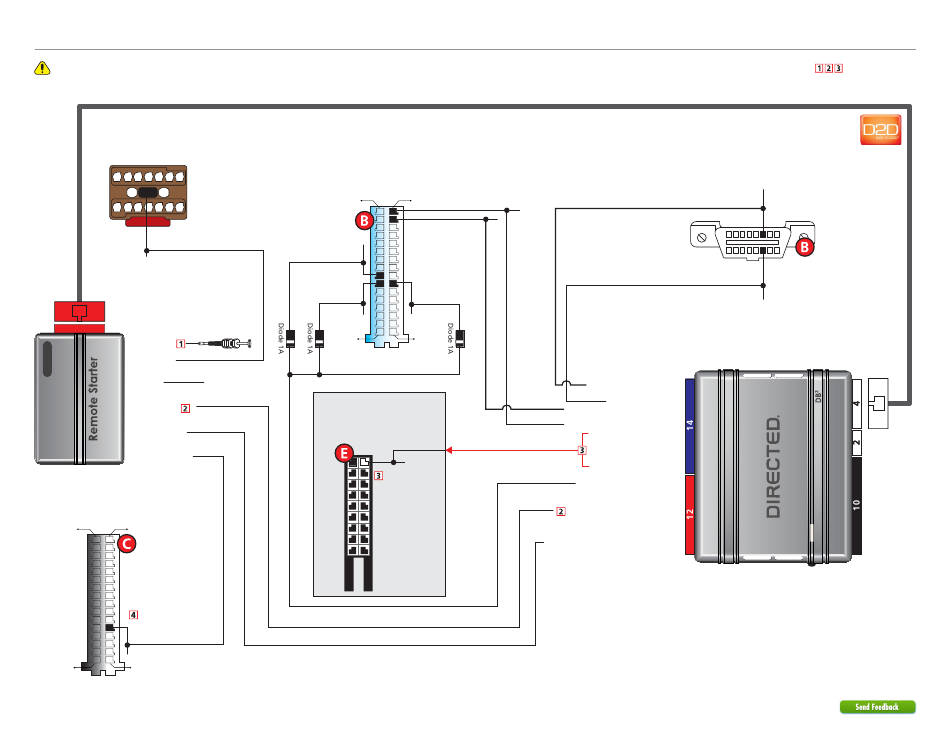

Wiring diagram (alternative installation)

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Comfort System Module
(brown conn.
in left rear quarter panel,
below fuse box)
1 2 3 4 5 6 7
15 16 17
8 9 10 11 12 13 14
(+) 12V:
Red/Yellow,pin 16
D2D Port
Hood Pin
(-) Hood Input
(+) 12V Input
(-) Ground (-) Ground
(AC) Tach Input
(+) Ignition Input
(+) Starter Output
Comfort System Module
(black/white conn.
in left rear quarter panel,
below fuse box)
17 1
(+) Brake:
Black/Red,
pin 12
32
16
6 403.VW08 1.39 2020 Audi Q7 (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Comfort System Module
(blue/white conn.
in left rear quarter panel,
below fuse box)
HS CAN 2 Low:
1
17
Orange/Brown, pin 1
HS CAN 2 High:
Green, pin 2
(-) PTS 1:
Yellow/Gray,
pin 25
(-) PTS 3:
(-) PTS 2:
Blue/Yellow,
White/Gray,
pin 10
pin 26
32 16
Comfort System Module
(black conn.
in left rear quarter panel,
below fuse box)
11
IMMO Antenna:
Yellow, pin 11
HS CAN 1 High: Blue/Green, pin 6
1
9
HS CAN 1 Low: Violet/Brown,pin 14
HS CAN 1 High: Tan/Black: 3
HS CAN 1 Low: Tan: 4
HS CAN 2 High: Orange/Green: 5
HS CAN 2 Low: Orange/Brown: 6
Key Wrap: Orange/Red: 10
Key Wrap: Yellow/Red: 11
Key Wrap: Brown/Red: 12
(-) PTS Output: Green/Black: 2
(AC) Tach Output: Violet/White: 5
(+) Ignition Status Output: Gray/Black: 7
).
XKD2D65
OBDII
8
Diagnostic
Connector
16
