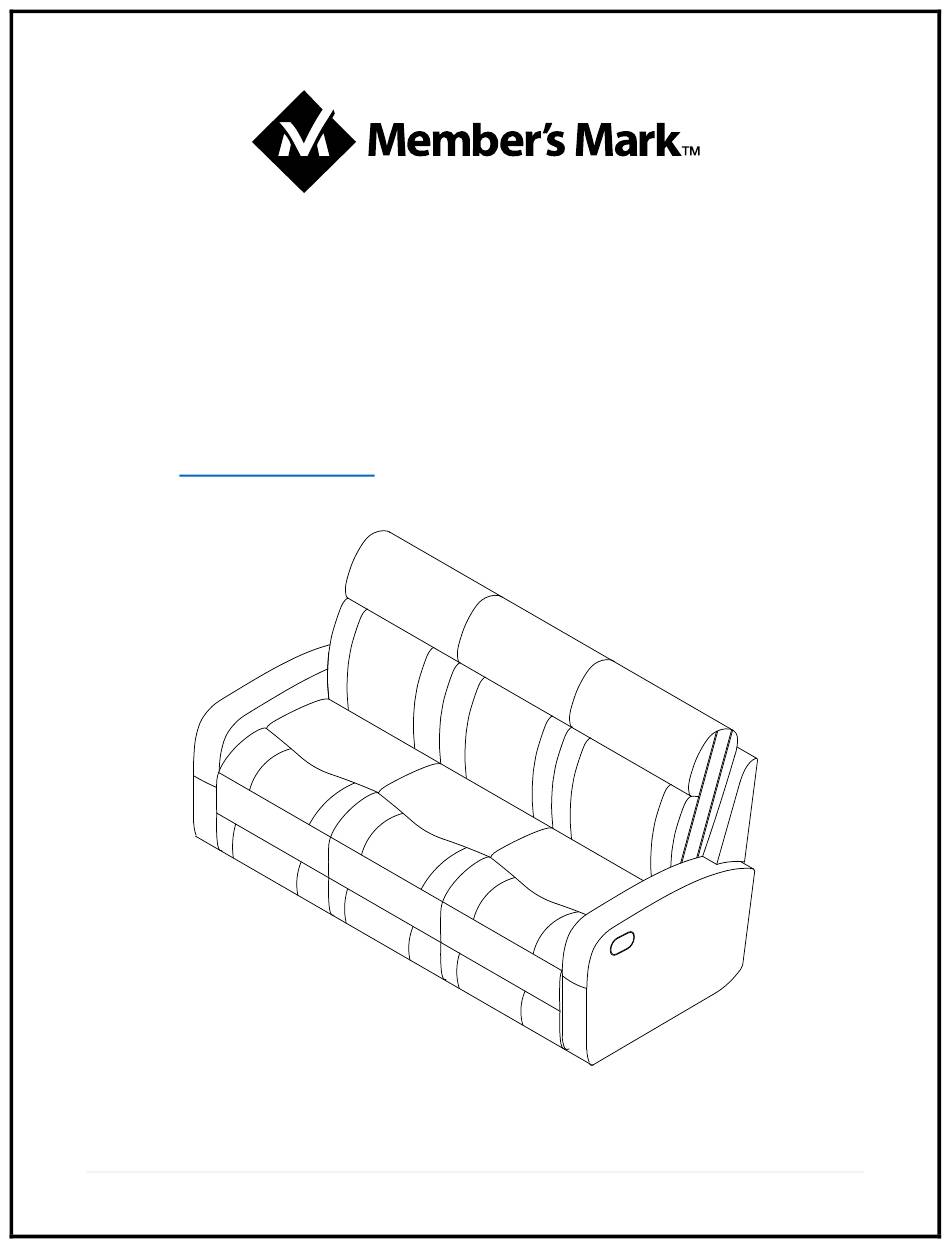

Assembly Instructions & User's Manual
for

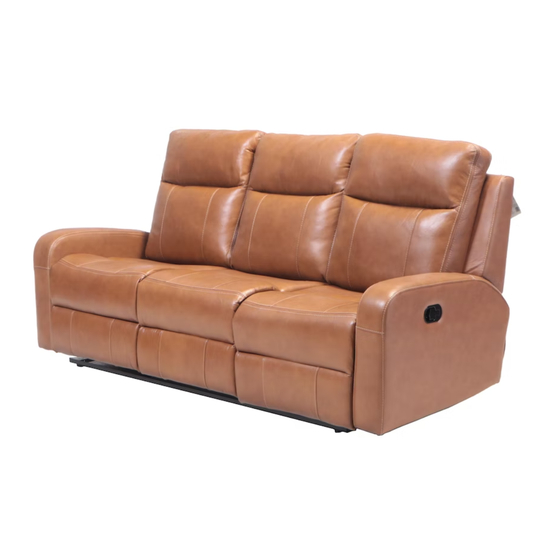

Member's Mark Manhattan Sofa - Caramel
Item Number:
Model Number: 9M222U3-1
Customer Assistance
: 1-844-707-0195
(spare/replacement parts)
or Email:
info@mci-home.com
THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Member's Mark Manhattan 9M222U3-1
Summary of Contents for Member's Mark Manhattan 9M222U3-1
- Page 1 Assembly Instructions & User’s Manual Member’s Mark Manhattan Sofa - Caramel Item Number: Model Number: 9M222U3-1 Customer Assistance : 1-844-707-0195 (spare/replacement parts) or Email: info@mci-home.com THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
-
Page 2: Table Of Contents
Table of Contents Quality Statement ............................. 3 Important Safety Information ........................ 3 Before Assembly ............................3 Care & Use ..............................3 Package Contents ............................ 4 Product Information ..........................4 Step 1 – Step 5 ............................5 Warranty Information ..........................10 P a g e... -
Page 3: Quality Statement
Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Package Contents
Package Contents Component Description Quantity Component Description Quantity Sofa Base Right Back Cushion Left Back Cushion Power Cord Center Back Cushion Product Information Overall Dimensions: 84” x 36.25” x 41.5” (213.36 cm x 92.08 x 105.41 cm) Net weight: 206.8 lbs (94 kg) Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 5: Step 1 - Step 5
Step 1 Receiver Bracket Metal Post Position Receiver Brackets on Left Backrest (B) to the corresponding metal post on Seat Base (A). Push down to secure backrest into locked position. To remove the back, use a screwdriver pressing outward on the back tab in the receiver on both sides and lift the back from the base. - Page 6 Step 2 Position Receiver Brackets on Center Backrest (C) to the corresponding metal post on Seat Base (A). Push down to secure backrest into locked position. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 7 Step 3 Position Receiver Brackets on Right Backrest (D to the corresponding metal post on Seat Base (A). Push down to secure backrest into locked position. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 8 Step 4 Connect power adaptor cord (E) as shown in picture above. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 9 Step 5: Complete Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
-
Page 10: Warranty Information
Warranty Information This product component has a 1-year limited warranty. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number 1-844-707-0195 or email us at info@mci-home.com NOTE: Please consider recycling all applicable packaging material. Distributed by Sam’s West Inc.
