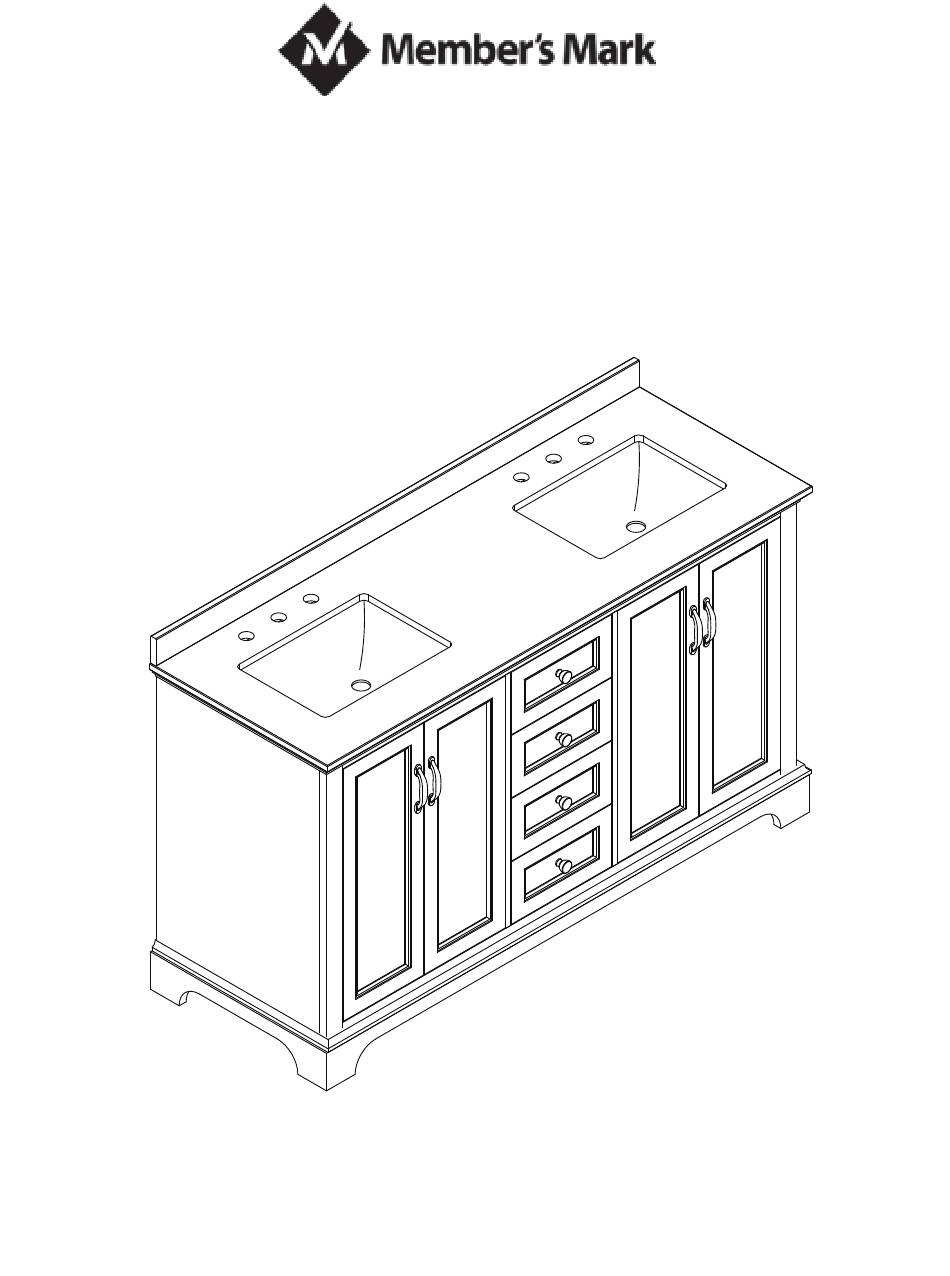

- Page 1 Assembly Manual Bathroom Double Sink Vanity Model Number: 9V304V60 THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Important Safety Information
Important Safety Information Please read all instructions carefully before assembling this vanity. For your safety, installation by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. NOTICE: It is suggested that this product be installed by a professional and be permanently attached to the wall. - Page 3 Components A....Vanity Base....1 B....Backsplash....1 C..Left Adjustable Shelf..1 D..Right Adjustable Shelf..1 Hardware (CC) (AA) (BB) Adjustable Shelf Pin Touch-up Qty: 8 Leveler Qty: 1 Qty: 4 NOTICE: It is suggested that this product be installed by a professional and be permanently attached to the wall. Not intended to be a free-standing unit. Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
- Page 4 Step 1 (AA) Adjustable Leveler Qty: 4 Wall (AA) Adjustable All 4 corner feet underneath the vanity, have Levelers (AA). To adjust, screw in or out Leveler (AA) using your hands. NOTICE: It is suggested that this product be installed by a professional and be permanently attached to the wall.
-
Page 5: Step 2: Anti-Tip
Step 2: Anti-Tip Wall G1....Bracket....1 G2...Tie Wrap...1 G3..Long Screw..1 G4..Short Screw..1 Wall Remove anti-tipping pack from back Panel, assemble it to avoid tipping. Need Assistance? Visit us at: samsclub.com/membersmarkhelp... - Page 6 Step 3 Backsplash Vanity Qty: 1 Qty: 1 Back Splash Wall For application of backsplash (B) to drywall: Make sure the wall is smooth and flat. Clean the wall and the back of the backsplash (B) with damp cloth to remove any grease or debris.
- Page 7 Step 4 (BB) Shelf Pin Left Right Qty: 8 Adjustable Shelf Adjustable Shelf Qty: 1 Qty: 1 (BB) (BB) Reposition the Shelf Pin into the desired position. Place the Adjustable Shelf back onto the Shelf Pin. Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
- Page 8 Step 5 Uneven floor may cause doors to misalign. Please place furniture on a leveled flat surface or adjust the levelers at the bottom toensure that it is perfectly leveled. If necessary, you can also adjust the doors with a Philips screwdriver when the below adjustable hinge is installed on your furniture.
-
Page 9: Step 6: Drawer Removal
Step 6: Drawer Removal Need Assistance? Visit us at: samsclub.com/membersmarkhelp... - Page 10 Step 7: Drawer Install Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
- Page 11 Dimensions 22 in / 55.9 cm 60 in / 152.4 cm 35 in / 89 cm 39.25 in / 99.7 cm Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
