Assembly Instructions & User's Manual
for

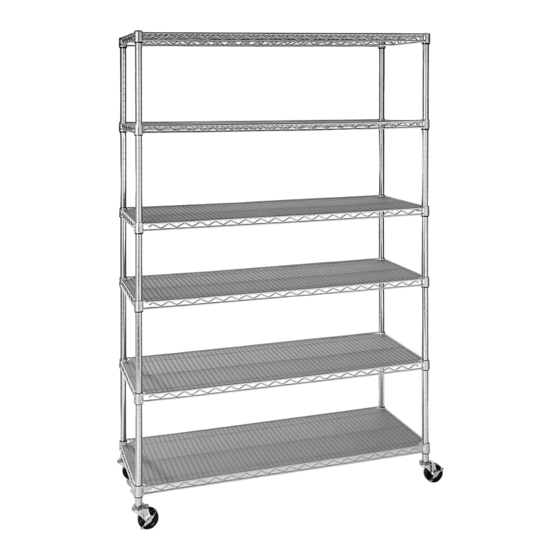

Member's Mark Commercial-Grade 6-Tier
Steel Wire Shelving with Wheels
Item Number: 990290812
Model Number: 18496VB
Customer Assistance
: 1 (800) 323-5565
(spare/replacement parts)
or Email:
Support@SevilleClassics.com
THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Member's Mark 18496VB
Summary of Contents for Member's Mark 18496VB
- Page 1 Assembly Instructions & User’s Manual Member’s Mark Commercial-Grade 6-Tier Steel Wire Shelving with Wheels Item Number: 990290812 Model Number: 18496VB Customer Assistance : 1 (800) 323-5565 (spare/replacement parts) or Email: Support@SevilleClassics.com THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Table of Contents Quality Statement ............................. 3 Important Safety Information ........................ 3 Before Assembly ............................3 Care & Use ..............................3 Package Contents ............................ 4 Product Information ..........................5 Components .............................. 5 Tip-Over Prevention Hardware Kit ....................... 6 Step 1 ................................7 Step 2 ................................ -
Page 3: Quality Statement
Quality Statement Important Safety Information Please read all instructions carefully before assembling this product. Where applicable, and for your safety, assembly by an adult is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Package Contents
Package Contents Component Description Quantity Component Description Quantity Bottom poles Locking wheels Top poles Caps Connectors Threaded inserts Shelves Liners Slip sleeves Straps Leveling feet Anchors Wheels Screws Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 5: Product Information
Product Information Dimensions: 47.75" W x 18" D x 75.5" H (on wheels) Weight capacity Per shelf Overall On leveling feet 1000 lbs. (453.6 kg.) 6000 lbs. (2721.6 kg.) On wheels 133.33 lbs. (60.5 kg.) 800 lbs. (362.9 kg.) Components A. -
Page 6: Tip-Over Prevention Hardware Kit
Tip-Over Prevention Hardware Kit L. Straps (2) M. Anchors (4) N. Screws (4) Phillips Screwdriver Power Drill Stud Finder (Not Included) (Not Included) (Not included) Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 7: Step 1
Step 1 Screw LEVELING FEET (F) or WHEELS (G,H) into base of BOTTOM POLES (A). Repeat for all bottom poles. Step 2 Screw CONNECTORS (C) into top of BOTTOM POLES (A). Screw TOP POLES (B) to CONNECTORS (C). Connectors may be pre-installed. Step 3 Snap SLIP SLEEVES (E) around the grooves on BOTTOM POLES (A) for the lowest shelf. -
Page 8: Step 4
Step 4 Fit SHELF (D) over the top of the 4 poles and over SLIP SLEEVES (E). Repeat STEPS 3-4 for remaining shelves. Place LINERS (K) into shelves to finish. Assembling 2 Units STEP 1. Screw THREADED INSERT (J) into base of TOP POLES (B). STEP 2. -
Page 9: Tip-Over Prevention Instructions
Tip-Over Prevention Instructions Tip-over prevention hardware kit is recommended per assembly instruction below. Use a stud finder to locate studs when positioning shelving. Secure wall straps to wood studs whenever possible. Avoid water or electric lines when securing shelf to wall. Loop STRAPS (L) around rear poles or back of upper shelves. -
Page 10: Warning
Warning DO NOT stand on or climb on the rack. DO NOT drop heavy items on the shelves. Place heavier items on the lower shelves and lighter ones on the top shelves. Move the system carefully while loaded. Always check that the wheels are screwed tight to the poles before moving. Immediately replace wheels that are worn or damaged. - Page 11 Need Assistance? Visit us at: samsclub.com/membersmarkhelp 11 | P a g e...
