Assembly Instructions & User's Manual
Member's Mark
Sleeper Accent Chair
Item Number: 990388578 / 990388579
Model Number: 3247-6355BF-18 / 3247-6465F-18
Customer Assistance
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
(spare/replacement parts)
:
1-800-318-9669
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Member's Mark 3247-6355BF-18
Summary of Contents for Member's Mark 3247-6355BF-18

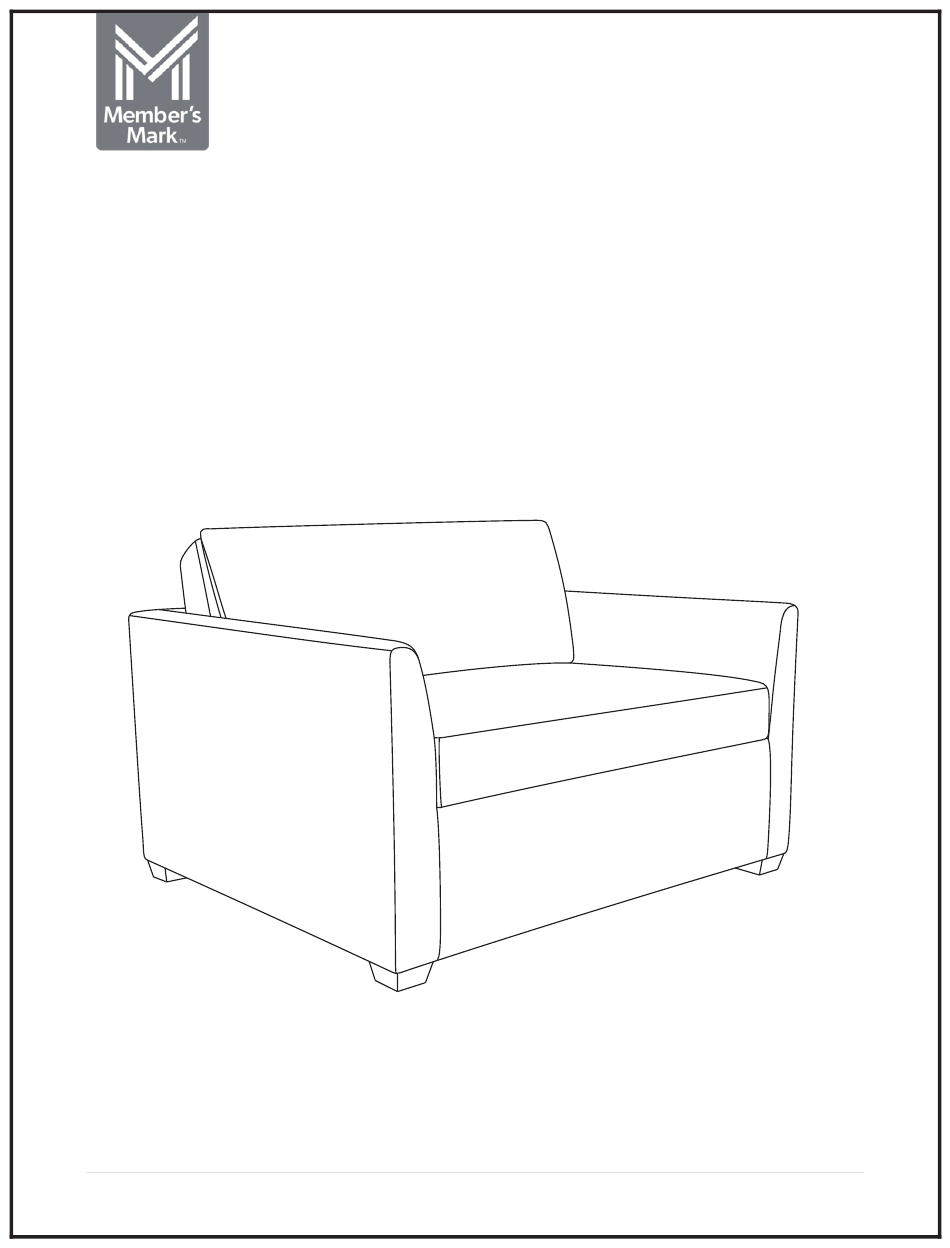

- Page 1 Assembly Instructions & User’s Manual Member’s Mark Sleeper Accent Chair Item Number: 990388578 / 990388579 Model Number: 3247-6355BF-18 / 3247-6465F-18 Customer Assistance 1-800-318-9669 (spare/replacement parts) THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
-
Page 2: Table Of Contents
Assembly Instructions & User’s Manual Table of Contents Quality Statement ..........................3 Important Safety Information ......................3 Before Assembly ..........................3 Care & Use ............................3 Package Contents ..........................4 Product Information ........................... 5 Components ............................5 Step 1 – Step 4 ..........................6-9 Operating Instructions ...................... -
Page 3: Quality Statement
Assembly Instructions & User’s Manual Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Package Contents
Assembly Instructions & User’s Manual Package Contents Component Quantity Description Seat frame Back frame Back cushion Legs Hardware bag Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 5: Product Information
Assembly Instructions & User’s Manual Product Information Dimensions: 47.75” x 41.5” x 32.75” (121.3 cm x 105.5 cm x 83.2 cm) Weight Capacity per seat: Supports up to 300 lbs. (136 kg.) Components Seat frame Back frame Back cushion Qty: 1 Qty: 1 Qty: 1 Allen key... -
Page 6: Step 1 - Step 4
Assembly Instructions & User’s Manual Step 1 Get legs (D) from leg box on the bottom of the seat frame (A). Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... - Page 7 Assembly Instructions & User’s Manual Step 2 LEGS LEGS CORRECT BOTTOM VIEW INCORRECT BOTTOM VIEW Place the legs (D) on bottom (A) as shown, note the glides positions. Secure by engaging Bolt with washers (E) using the provided Allen Key (F), stacking the hardware in the order as shown. DO NOT OVER TIGHTEN.
- Page 8 Assembly Instructions & User’s Manual Step 3 Attach the back frame (B) to the seat frame (A) by sliding the receivers into the mechanism posts located on the seat frame (A). From the back, press down on both sides of the back frame (B) to firmly secure.
- Page 9 Assembly Instructions & User’s Manual Step 4 Put the back cushion in the place. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
-
Page 10: Operating Instructions
Assembly Instructions & User’s Manual Operating Instructions Open Sleeper Accent Chair Remove the pillow before opening the sleeper chair. Lift up the seat first, and then pull it outward. Need Assistance? Visit us at: samsclub.com/membersmarkhelp 10 | P a g e... - Page 11 Assembly Instructions & User’s Manual Operating Instructions Open Sleeper Accent Chair CAUTION: Keep your feet a safe distance away from the metal support while releasing it on floor. Need Assistance? Visit us at: samsclub.com/membersmarkhelp 11 | P a g e...
- Page 12 Assembly Instructions & User’s Manual Operating Instructions Open Sleeper Accent Chair Correct Incorrect CAUTION: The metal support should be fully opened in a correct position to ensure safety. Need Assistance? Visit us at: samsclub.com/membersmarkhelp 12 | P a g e...
- Page 13 Assembly Instructions & User’s Manual Operating Instructions Open Sleeper Accent Chair Put the back cushion in the place. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 14 Assembly Instructions & User’s Manual Operating Instructions Close Sleeper Accent Chair WARNING: Keep hands and fingers clear of the seat bottom when closing to avoid injury. Remove the pillow before closing the sleeper chair. Lift up the seat first and release the seat carefully in place. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 15 Assembly Instructions & User’s Manual Operating Instructions Close Sleeper Accent Chair Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
-
Page 16: Danger
Assembly Instructions & User’s Manual Danger Don't drag the chair on the floor. Troubleshooting Problem Possible Cause Prevention / Solution Check bolts periodically and Leg loose Bolt is loose tighten them if necessary Care & Use Instructions 1. Do not stand on the seat cushion. 2. - Page 17 Assembly Instructions & User’s Manual NOTE: Please consider recycling all applicable packaging material. Distributed by Sam’s West Inc. 2101 SE Simple Savings Dr. Bentonville, Arkansas 72716-0745 Made in Vietnam Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
