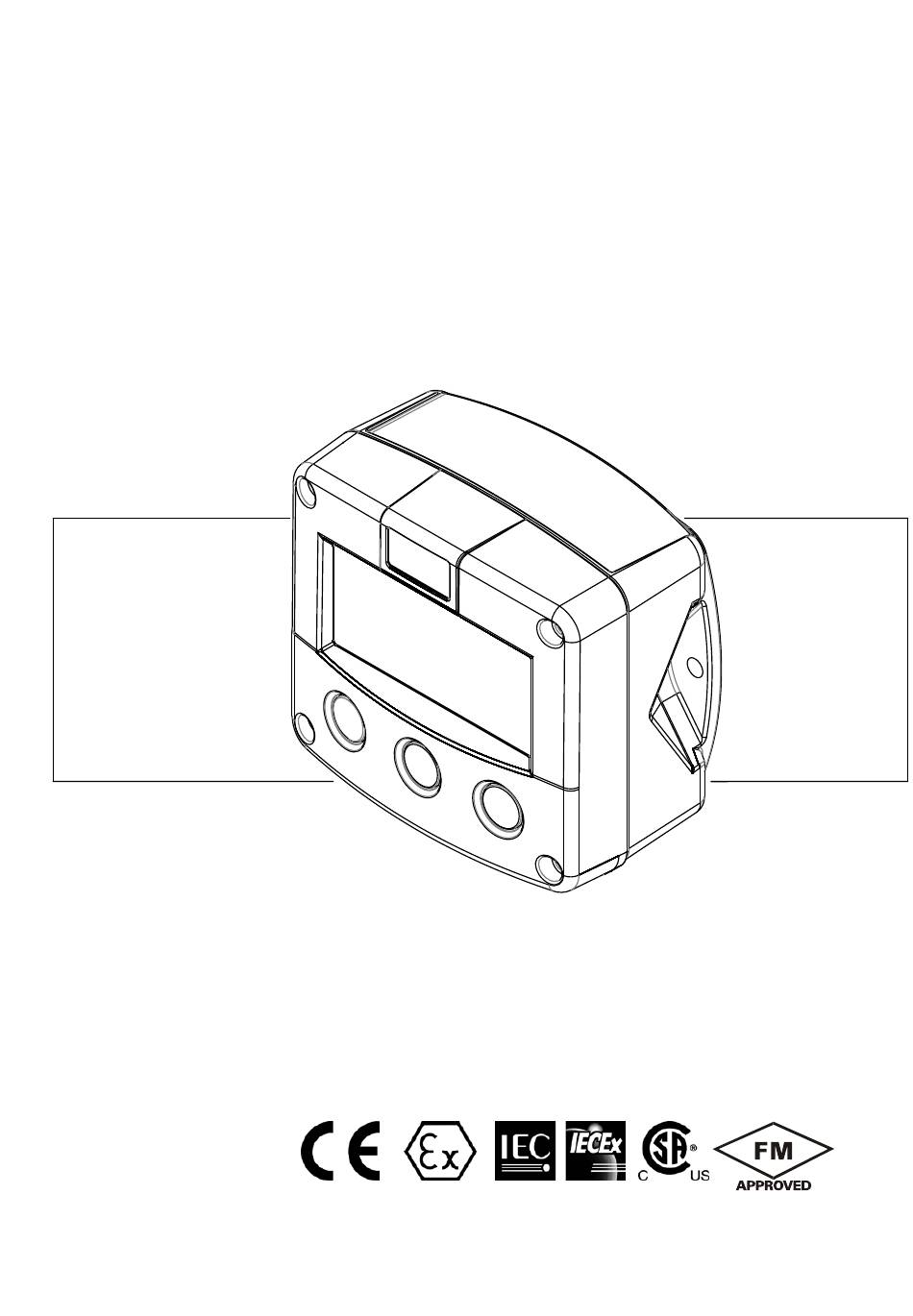

- Page 1 F011-A TOTALIZER Signal input flowmeter: (0)4-20mA. Options: Intrinsically Safe. F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries...
-
Page 2: Safety Instructions
Compatibility). Do connect a proper grounding to the aluminum casing as indicated if the F011-A has been supplied with the 115-230V AC power-supply type PM. The green / yellow wire between the back-casing and removable terminal-block may never be removed. -
Page 3: About The Operation Manual
This operation manual describes the standard unit as well as most of the options available. For additional information, please contact your supplier. A hazardous situation may occur if the F011-A is not used for the purpose it was designed for or is used incorrectly. Please carefully note the information in this operating manual indicated by the pictograms: A "warning"... -
Page 4: Table Of Contents
Safety rules and precautionary measures ....................... 2 About the operation manual ..........................3 Contents manual .............................. 4 Introduction ..........................5 1.1. System description of the F011-A ..................5 Operational ..........................6 2.1. General ..........................6 ... -
Page 5: Introduction
Fig. 1: Typical application for the F011-A. Configuration of the unit The F011-A has been designed to be implemented in many types of applications. For that reason, a SETUP-level is available to configure your F011-A according to your specific requirements. -
Page 6: Operational
Take careful notice of the " Safety rules, instructions and precautionary measures " in the front of this manual. This chapter describes the daily use of the F011-A. This instruction is meant for users / operators. 2.2. CONTROL PANEL The following keys are available: Fig. -
Page 7: Operator Information And Functions
SETUP-settings. The signal generated by the connected flowmeter is measured by the F011-A in the background, whichever screen refresh rate setting is chosen. After pressing a key, the display will be updated very quickly during a 30 second period, after which it will slow-down again. - Page 8 Page 8 Range error As soon as the input value is 5% outside the calibrated measuring range, “ALARM” will be displayed. Meanwhile, the calibrated value will be displayed. After pressing the SELECT key, the reason of the alarm will be displayed: “LO RANGE” or “HI RANGE”.
-
Page 9: Configuration
Operating Manual before carrying out its instructions. The F011-A may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. - Page 10 Page 10 Matrix structure SETUP-level: SCROLLING THROUGH SETUP-LEVEL Selection of function-group and function: SETUP is divided into several function groups and functions. Each function has a unique number, which is displayed below the word "SETUP" at the bottom of the display. The number is a combination of two figures. The first figure indicates the function-group and the second figure the sub-function.
- Page 11 Page 11 To change or select a value: To change a value, use to select the digits and to increase that value. If the new value is invalid, the increase sign or decrease-sign will be displayed while you are programming.
-
Page 12: Overview Functions Setup Level
CUT-OFF 0.0 - 99.9% CALIBRATE LOW default - calibrate - calibrate set CALIBRATE HIGH default - calibrate - calibrate set OTHERS TYPE / MODEL F011-A SOFTWARE VERSION 03.xx.xx SERIAL NO. xxxxxxx PASS CODE 0000 - 9999 TAGNUMBER 0000000 - 9999999... -
Page 13: Explanation Of Setup-Functions
Page 13 3.2.3. EXPLANATION OF SETUP-FUNCTIONS 1 - TOTAL SETUP - 11 determines the measurement unit for total and accumulated MEASUREMENT UNIT total. The following units can be selected: L - m3 - kg - lb. - GAL - USGAL - bbl - _ (no unit). Alteration of the measurement unit will have consequences for operator and SETUP-level values. -
Page 14: Display
When used with the internal battery option, the user can expect reliable measurement over a long period of time. The F011-A has several smart power management functions to extend the battery life time significantly. Two of these functions can be set:... -
Page 15: Flowmeter
The analog output signal of a flowmeter does mirror the actual flow. This signal is measured several times a second by the F011-A. The value measured is a "snap-shot" of the real flow as it will be fluctuating. With the help of this digital filter a stable and accurate reading can be obtained while the filter level can be set to a desired value. -
Page 16: Flowmeter (Continued)
TYPE OF MODEL For support and maintenance it is important to have information about the characteristics of the F011-A. Your supplier will ask for this information in the case of a serious breakdown or to assess the suitability of your model for upgrade considerations. -
Page 17: Installation
Operating Manual before carrying out its instructions. The F011-A may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 18: Dimensions- Enclosure
Page 18 4.3. DIMENSIONS- ENCLOSURE Aluminum enclosures: 75 mm (2.95") 112 mm (4.40") 130 mm (5.12") 12mm 12mm 30mm 30mm 24mm 24mm M20 x 1,5 6 x M12 36mm 36mm 30mm 30mm M16 x 1,5 M16 x 1,5 1/2"NPT M20 x 1,5 0.12"... - Page 19 Page 19 GRP enclosures: 75 mm (2.95") 112 mm (4.40") 130 mm (5.12") HK back box: (flat bottom) 75 mm (2.95") 118 mm (4.65”) 25mm 25mm D=20mm D=20mm 12mm 12mm 30mm 30mm 24mm 24mm D=12mm D=16mm D=16mm D=20mm 36mm 36mm 0.12”...
-
Page 20: Installing The Hardware
This unit must be installed in accordance with the EMC guidelines (Electro Magnetic Compatibility). Do ground the aluminum casing properly as indicated, if the F011-A has been supplied with the 115-230V AC power-supply type PM. The green / yellow wire between the back- casing and removable terminal-block may never be removed. -
Page 21: Terminal Connectors With Power Supply - Type : Pb / Pd / Pl / Px
REMARKS: TERMINAL CONNECTORS: Terminals 1-2; Flowmeter input: The F011-A requires a (0)4-20mA flowmeter signal which will be processed 4 times a second with a 16 bits accuracy. The input is not isolated. The screen of the signal wire must be connected to the common ground terminal. - Page 22 Page 22 Terminal 4-5: POWER SUPPLY UNIT - TYPE PD / PX: To power the unit an internal battery can be used (type PB) and / or an external DC power supply of 8-30V DC (type PX) or 16-30V DC (type PD). Connect the "-"...
-
Page 23: Terminal Connectors With Power Supply - Type : Pf / Pm
TYPE: A PF / PM ANALOG (0)4-20mA Fig. 9: Overview of terminal connectors F011-A-(PF / PM) and options. SENSOR SUPPLY Type PF-PM: Sensor supply: 8.2V, 12V or 24 V: With this option, a real power supply for the sensor is available. The sensor can be powered with 8.2, 12 or 24 V DC (max. - Page 24 400mA@24V DC. Terminals 5-7; Flowmeter input: The F011-A requires a (0)4-20mA flowmeter signal which will be processed 4 times a second with a 16 bit accuracy. The input is not isolated. The screen of the signal wire must be connected to the common ground terminal 5.
-
Page 25: Intrinsically Safe Applications
Safety Instructions Certificates, safety values, control drawing and declaration of compliance can be found in the document named: “Fluidwell F0..-A-XI - Documentation for Intrinsic Safety”. For installation under ATEX directive: this intrinsically safe device must be installed in accordance with the Atex directive 94/9/EC and the product certificate KEMA 05ATEX1168 X. - Page 26 FWCD-0001. Tamb CSA Certificate nr: CSA.08.2059461 – FM Project ID: 3033306 -40°C ... +70°C Made in Veghel, The Netherlands by Fluidwell bv -40°F ... +158°F KEMA 05ATEX1168 X Battery powered applications: II 1 G Ex ia IIC T4 Replace with certified II 1 D Ex iaD 20 IP 65 / 67 T 100°C...
-
Page 27: Terminal Connectors Intrinsically Safe Applications
Page 27 5.2. TERMINAL CONNECTORS INTRINSICALLY SAFE APPLICATIONS: Terminal connectors F011-A-(PC / PD / PL / PX)-XI-(ZB): SENSOR SIGNAL POWER SUPPLY SENSOR POWER SUPPLY BACKLIGHT ANALOG INPUT UNIT SUPPLY TYPE: A (0)4-20mA TYPE: PD / PX TYPE: PD OPTION: ZB Fig. - Page 28 Page 28 Configuration example no. 2 Configuration example IIA - IIB and IIC application - F010-A-PD-XI-ZB HAZARDOUS AREA SAFE AREA TERMINAL CONNECTORS F0-series = max. 30 V Power supply Supply backlight = max. 200 mA Backlight option: type ZB For example = max.
-
Page 29: Battery Replacement Instructions
Page 29 5.4. BATTERY REPLACEMENT INSTRUCTIONS FW-LiBAT-001 - INST001 Fig. 18: Battery replacement instructions Intrinsically Safe Battery. HF011AEN_v0403_03 Atex_IECEx_CSA_FM... -
Page 30: Maintenance
Operating Manual before carrying out its instructions. The F011-A may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 31: Appendix A: Technical Specification
Page 31 APPENDIX A: TECHNICAL SPECIFICATION GENERAL Display Type High intensity reflective numeric and alphanumeric LCD, UV-resistant. Digits Seven 17mm (0.67") and eleven 8mm (0.31"). Various symbols and measuring units. Refresh rate User definable: 8 times/sec - 30 secs. Type ZB (option) Bi-color configurable LED-backlight - green or amber. - Page 32 Page 32 Sensor excitation Type PB / PC / PX Sensor supply voltage: 3.2V DC for pulse signals and 1.2V DC for coil pick-up. Please note: this is not a real sensor supply. Only suitable for sensors with a very low power consumption like coils (sine wave) and reed-switches.
- Page 33 Page 33 OPERATIONAL Operator functions Displayed functions total and accumulated total. total can be reset to zero by pressing the CLEAR-key twice. Total Digits 7 digits. Units L, m3, GAL, USGAL, KG, lb, bbl, no unit. Decimals 0 - 1 - 2 or 3. Note total can be reset to zero.
-
Page 34: Appendix B: Problem Solving
APPENDIX B: PROBLEM SOLVING In this appendix, several problems are included that can occur when the F011-A is going to be installed or while it is in operation. Flowrate displays "0 / zero" while there is flow (total is counting): Check: ... -
Page 35: Index Of This Manual
Fig. 7: Grounding aluminum enclosure with option PM 115-230V AC..........20 Fig. 8: Overview of terminal connectors F011-A-(PB / PD / PL / PX) and options......21 Fig. 9: Overview of terminal connectors F011-A-(PF / PM) and options........... 23 ... - Page 36 54 pass code 0000 55 tagnumber 0000000 Fluidwell bv HF011AEN_v0403_03 Atex_IECEx_CSA_FM PO box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives The Netherlands The Netherlands Copyright Fluidwell bv - 2012 - HF110AEN_v0501_03...
