Summary of Contents for Fluidwell F013-A

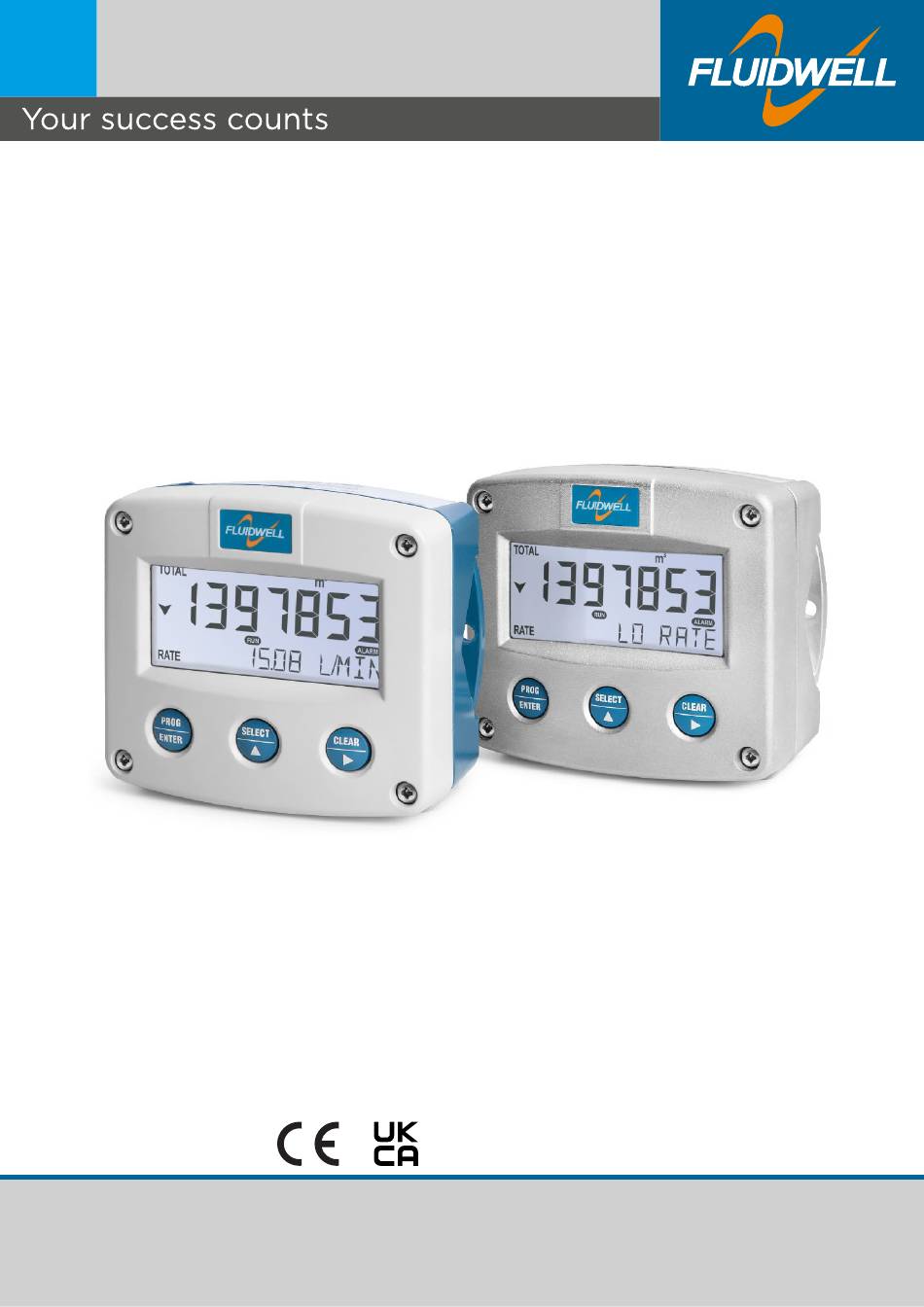

- Page 1 FLOW RATE MONITOR / TOTALIZER WITH HIGH / LOW FLOW RATE ALARMS Signal input: (0)4-20 mA flowmeter signal Signal output: one flow rate alarm Options: intrinsically safe backlight F-Series - Field mounted indicators for safe and hazardous areas More info: www.fluidwell.com/fseries...
-
Page 2: Table Of Contents
Menu 6: Flowmeter ......................17 5.4.7 Menu 7: Others ......................18 INSTALLATION........................19 Installation / environmental conditions ................19 Handling the F013-A enclosure ..................20 6.2.1 Identification........................20 6.2.2 Opening, assembling and closing the F-Series .............. 21 Mechanical installation....................23 6.3.1... - Page 3 Power supply ........................40 7.3.2 Sensor supply ......................... 40 Configuration examples Intrinsically Safe applications ........... 41 7.4.1 F013-A-OT-PX-XI-ZB - Ex ia IIC/IIIC ................41 7.4.2 F013-A-OT-PD-XI-ZB - Ex ia IIC/IIIC................41 7.4.3 F013-A-OT-PL-XI-ZB - Ex ia IIC/IIIC ................42 MAINTENANCE........................43 General directions......................
-
Page 4: About This Manual
● incorrect functioning of the unit or connected instruments. A note informs you of important information. WARRANTY AND TECHNICAL SUPPORT For warranty and technical support on your Fluidwell products, visit our internet site www.fluidwell.com or contact us at support@fluidwell.com. MODEL REFERENCE Hardware version: 03.03.xx... -
Page 5: Safety
F013-A User Manual SAFETY PERSONAL SAFETY ● Explosion hazard: Never open the unit when explosive atmosphere is present, and the unit is connected to a power supply or consuming device like the internal battery supply. ● Risk of electric shock: Only open the unit if all leads are free of potential electrical energy. -
Page 6: Introduction
INTRODUCTION SYSTEM DESCRIPTION The flow rate monitor / totalizer model F013-A is a microprocessor-driven instrument designed to show the current flow rate, resettable total and non-resettable accumulated total, as well as to monitor the flow rate for high and/or low values. -
Page 7: Input
● Several options are available for powering the sensor. 3.2.3 OUTPUT ● An external device such as an alarm or a switch can be connected to the F013-A. ● Several driving options are available, depending on the ordered Type. 3.2.4... -
Page 8: Operation
Section 2: Safety [»5] INTRODUCTION This chapter describes the daily use and operation of the F013-A. For this, the F-Series is equipped with a control panel that provides the operator with various functions, information and operating modes. 4.1.1... -
Page 9: Backlight (Type Zb)
F013-A User Manual Normally, the display is updated depending on the refresh rate selected in the configuration settings. By pressing any key, the display switches to refreshing the information 8 times per second. After 30 seconds of key inactivity, the display returns to the configured refresh rate. -
Page 10: Operator Alarms
User Manual F013-A PROGRAM Fig. 5: Example of display information during programming minimum flow rate alarm level When a value was changed but ENTER has not been pressed, the change can be canceled by waiting for 20 seconds or by pressing ENTER and holding for three seconds. -
Page 11: Configuration
INTRODUCTION This chapter describes how technicians can use configuration settings to configure the F-Series for optimal functionality. Configuration of the F013-A can be done in SETUP mode, using the front keys. CONFIGURING USING SETUP MODE For an overview of Operating modes, see Section 4.1.1: Operating modes [»8]... -
Page 12: Changing Configuration Settings
User Manual F013-A 5.2.3 CHANGING CONFIGURATION SETTINGS A menu item either contains a value (a number with optionally a decimal point and sign, e.g. -123.45) or a selection list (e.g. L – m - USGAL). After a menu item is selected in the SETUP menu, a new value can be programmed by performing the following steps. -
Page 13: Setup Menu Overview
F013-A User Manual SETUP MENU OVERVIEW TOTAL DEFAULT UNIT L - m3 - kg - lb - GAL - USGAL - bbl - no unit DECIMALS 0 - 3 0.0010 - 999,999 1600 SPAN DECIMALS SPAN 0 - 6 FLOW RATE... -
Page 14: Setup Menu Explanations
User Manual F013-A SETUP MENU EXPLANATIONS 5.4.1 MENU 1: TOTAL Calculating the Span for Total The Span is used to convert the flowmeter output current to a quantity. The basis is the flow rate per second at 20 mA signal. Two examples are given. -
Page 15: Menu 3: Alarm
F013-A User Manual ● The flowmeter generates 20 mA at a flow rate of 2,481.3 Liter/minute. ● The flow will be displayed using L/min ( 2.1: FLOW RATE > UNIT 2.2: FLOW RATE > TIME UNIT ● Thus, the span is 2481.3. -
Page 16: Menu 4: Display
With this setting, the optional backlight can be turned on or off. BACKLIGHT BACKLIGHT ALARM If the F013-A generates an alarm, the backlight can be set to change to red. The following settings are available: OFF: during an alarm the color is white. -
Page 17: Menu 6: Flowmeter
FILTER The analog output signal of a flowmeter mirrors the actual process value. This signal is sampled several times per second by the F013-A. Consequently, random and/or fast changes in sensor signal may lead to instable displayed process values. With the help of the filter setting a stable and accurate reading can be obtained. -
Page 18: Menu 7: Others
(0)4mA at flow rate zero, this function is needed to set the minimum input current at flow rate zero. The input loop powered version of the F013-A (Type PL) requires an input signal of at least 4 mA, not lower. -
Page 19: Installation
Personnel must read and understand this Operating Manual before carrying out its instructions. ● The F013-A may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 20: Handling The F013-A Enclosure
User Manual F013-A HANDLING THE F013-A ENCLOSURE 6.2.1 IDENTIFICATION The F-Series can be supplied as suitable for Safe Area or Hazardous Area. Suitability for Intrinsic Safety is indicated in the model Type XI. Refer to for identification and installation labels Section 7: Intrinsically safe applications [»34]... -
Page 21: Opening, Assembling And Closing The F-Series
F013-A User Manual Fig. 10: Example of F0-Series installation label (Safe Area - Type PM or PF) Serial number and year of production The serial number can be reviewed on the identification label, the installation label, or in . The production SETUP 7.3: OTHERS >... - Page 22 User Manual F013-A Closing / replacing the cover 1. Re-insert all terminals to their original position. 2. Carefully position the front cover onto the back cover, making sure that the gasket falls nicely into the gutter of the back cover.
-
Page 23: Mechanical Installation
F013-A User Manual MECHANICAL INSTALLATION 6.3.1 MECHANICAL DIMENSIONS Aluminum and stainless steel enclosures 75 mm (2.95") 90 mm (3.54") 130 mm (5.12") 112 mm (4.40") 12mm 12mm 30 mm 30 mm 30mm 30mm M16 x 1,5 M16 x 1,5 M20 x 1,5... - Page 24 User Manual F013-A Non-metallic enclosures 75 mm (2.95") 130 mm (5.12") 112 mm (4.40") HK back box: (flat bottom) 75 mm (2.95") 118 mm (4.65”) 25mm 25mm D=20mm D=20mm 12mm 12mm 30mm 30mm 24mm 24mm D=12mm D=16mm D=16mm D=20mm 36mm 36mm 0.12”...
-
Page 25: Mounting The F-Series
F013-A User Manual 6.3.2 MOUNTING THE F-SERIES The enclosure can be installed by itself or with the aid of a mounting plate in the configurations shown below. When the product is installed on a wall or onto a meter, please use components and installation techniques that are suitable for the used materials. -
Page 26: Electrical Installation
● The wire screens shall be terminated at one side to prevent wire loops. Inside of the F013-A, the different common ground terminals are connected to each other. It is advised, as illustrated, to terminate the wire screens in the vicinity of the sensor and to insulate the wire screen with a shrink tube at the F013-A side. -
Page 27: Field Wiring Connections
User Manual Connecting Protective Earth to a non-metallic enclosure When the F013-A is supplied with a non-metal enclosure (e.g. plastic), the field mount enclosure meets the requirements of class 2 (double insulated). Therefore any incoming PE conductor can be terminated with an insulating end cap. -
Page 28: Power Supply
C22.2 No. 61010-1 / UL61010-1 / EN/IEC 61010-1. The F013-A can be powered from an external power supply. For Type PX or PD, an optional internal power supply is also available in the form of a lithium battery (Type PB). When both external and internal power supplies are available, the internal power supply is interrupted and will act as a backup supply. -
Page 29: Terminal Connectors Safe Area Applications - Type Px, Pd, Pl
Section 6.4.3: Field wiring connections [»27] Section 6.4.4: Power before applying any field or power supply wiring. supply [»28] The following terminal connectors are available on the F013-A when supplied with Type PX, PD or SENSOR SENSOR ALARM POWER SUPPLY POWER SUPPLY... -
Page 30: Terminals 1-2 (6): Flowmeter Input
TERMINALS 4-5: POWER SUPPLY - TYPE PX AND PD To power the F013-A a 8-30V DC (type PX) or 16-30V DC (type PD) power supply can be applied. Connect the "-" to terminal 4 and the "+" to terminal 5. -
Page 31: Terminals 7-8: Alarm Output - Type Ot
F013-A User Manual 6.5.4 TERMINALS 7-8: ALARM OUTPUT - TYPE OT With the function of this output is set. A passive transistor output is 3.6: ALARM > ALARM OUTPUT available with this option. Max driving capacity 300mA@50V DC. 50 V DC @ 300 mA... -
Page 32: Terminal Connectors Safe Area Applications - Type Pf, Pm
Overview of terminal connectors - Type PF or PM 6.6.1 TERMINALS GND-1-2: POWER SUPPLY To power the F013-A with a power supply option of type PF or type PM, connect a suitable power supply to the terminals as indicated in below table. Note: NC is not connected. -
Page 33: Terminals 5-7: Flowmeter Input
6.6.3 TERMINALS 5-7: FLOWMETER INPUT The F013-A requires a (0)4-20mA flowmeter signal which will be processed 4 times per second with 16 bit accuracy. The input is not isolated. The screen of the signal wire can be connected to the common ground terminal (see Section 6.4.3:... -
Page 34: Intrinsically Safe Applications
User Manual F013-A INTRINSICALLY SAFE APPLICATIONS IDENTIFICATION The F0-Series can be supplied as suitable for Safe Area or Hazardous Area. Suitability for Intrinsic Safety is indicated in the model Type XI. If Type XI is not indicated your unit is not suitable for Intrinsically Safe applications! -
Page 35: Electrical Installation In Hazardous Areas
Personnel must read and understand this Operating Manual before carrying out its instructions. ● The F013-A may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 36: Electrical Data - Control Drawing
User Manual F013-A 7.2.2 ELECTRICAL DATA - CONTROL DRAWING trol Dr ing F -A-XI Ce t r ific t a ion F0-SERIES – Type -XI T RMINAL CONNE CTORS F0 ERIE c mm on ground Ce tif r ica e number: CSA.08.2059461... - Page 37 F013-A User Manual trol Dr ing F -A-PL-XI Ce t r ific t a ion F0-SERIES – Type -XI T RMINAL CONNE CTORS F0 ERIE c mm on ground Ce tif r ica e number: CSA.08.2059461 Intr ins call S...
-
Page 38: Installations Based On Atex Or Iecex Certificate
User Manual F013-A 7.2.3 INSTALLATIONS BASED ON ATEX OR IECEX CERTIFICATE Installation instructions ● For installation under ATEX directive: this Intrinsically Safe device must be installed in accordance with ATEX directive 2014/34/EU and product certificate KEMA 03ATEX1168 X. ● For installation under IECEx scheme: this Intrinsically Safe device must be installed in accordance with product certificate IECEx DEK 08.0006X. -
Page 39: Electrical Data - Annex 1
F013-A User Manual 7.2.4 ELECTRICAL DATA - ANNEX 1 Annex 1 ( mo el p s eci fic) to prod uct certif c i ates KEMA 03ATEX1168 X, IECEx DEK 08. 00 6X . Model F0..-A-XI Model F0..-A-PL-XI Int nal... -
Page 40: Terminal Connectors Hazardous Area Applications
7.3.1 POWER SUPPLY The F013-A can be powered from an external power supply. For Types PX or PD, an optional internal power supply is also available in the form of an intrinsically safe lithium primary battery (Type PC). When both external and internal power supplies are available, the internal power supply is interrupted and will serve as a backup supply. -
Page 41: Configuration Examples Intrinsically Safe Applications
F013-A-OT-PX-XI-ZB - Ex ia IIC/IIIC - Intrinsically Safe application Please note: Type PX may be used in combination with the battery (Type PC). PX will power the F013-A, the battery will be disabled automatically until the power is disconnected. 7.4.2 F013-A-OT-PD-XI-ZB - EX IA IIC/IIIC Fig. 30:... -
Page 42: F013-A-Ot-Pl-Xi-Zb - Ex Ia Iic/Iiic
F013-A-OT-PL-XI-ZB - Ex ia IIC/IIIC - Intrinsically Safe application Please note: Type PL may be used in combination with the battery (Type PC). PL will power the F013-A, the battery will be disabled automatically until the power is disconnected. Page 42... -
Page 43: Maintenance
Personnel must read and understand this Operating Manual before carrying out its instructions. ● The F013-A may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 44: Battery Replacement
User Manual F013-A BATTERY REPLACEMENT 8.3.1 SAFETY INSTRUCTIONS ● Handle the battery with the utmost care to prevent a short circuit and damage. A mistreated battery can become unsafe. Unsafe batteries can cause serious injury. Do not recharge, crush, disassemble, incinerate, heat above its rated temperature or expose the contents to water. -
Page 45: Battery Replacement Procedure
F013-A User Manual 8.3.2 BATTERY REPLACEMENT PROCEDURE Before starting the battery replacement procedure, make sure that the marking on the new battery corresponds with the type of installation, as shown in Section 8.3.1: Safety instructions [»44] When used in Intrinsically Safe applications - Type PC: The hook-and-loop fastener that holds the battery is antistatic and thus fit for Hazardous Area use. -
Page 46: Appendix A - Technical Specification
User Manual F013-A APPENDIX A - TECHNICAL SPECIFICATION GENERAL DISPLAY Type High intensity reflective numeric and alphanumeric LCD, UV-resistant Digits 7 with height 17mm (0.67”) and 11 with height 8mm (0.31”). Various symbols and measuring units. Dimensions 90 x 40 mm (3.5” x 1.6”) - Page 47 F013-A User Manual POWER REQUIREMENTS Type PB SAFE AREA ONLY - Standard lithium primary battery. Life up to 5 years. Type PC INTRINSICALLY SAFE - Certified lithium primary battery. Life up to 5 years. Type PD 16-30 V DC. Max power consumption 1 W.
-
Page 48: Input
User Manual F013-A HAZARDOUS AREA (TYPE XI OR XF) Intrinsically safe ATEX appr. KEMA 05ATEX1168 X IECEx appr. IECEx KEM 08.0006X Type XI II 1 G Ex ia IIC T4 Ga Ex ia IIC T4 Ga II 1 D Ex ia IIIC T 100ºC Da... - Page 49 F013-A User Manual ALARM VALUES Digits 7 digits. Unit According to settings for Flow rate Decimals According to settings for Flow rate Measurement unit According to settings for Flow rate period Type of alarm Low and high Flow rate alarm. Includes configurable delay time and alarm output.
-
Page 50: Appendix B - Troubleshooting
APPENDIX B - TROUBLESHOOTING Table 1 lists and describes how to troubleshoot problems that can occur when installing or operating the F013-A. Table 2 lists internal alarm codes and conditions signaled by a blinking ALARM flag on the display ). Press the SELECT key several times to display the 4-digit error code shown in Table 2. -
Page 51: Appendix C - Legal Information
DECLARATIONS OF CONFORMITY EU De cla tio n of Conformi Fluidwell F0‒Series indicators he , February 2022 We, Fluidwell BV, declare under our s e ol respons ibility that the F0 ‒Series indicators are de igne d and will operate conform the following applicable European... - Page 52 User Manual F013-A LIST OF CONFIGURATION SETTINGS SETTING DEFAULT DATE: DATE: TOTAL UNIT DECIMALS SPAN 1600 DECIMALS SPAN FLOW RATE UNIT TIME UNIT DECIMALS SPAN 1600 DECIMALS SPAN ALARM FLOWZERO default ALARM LOW ALARM HIGH DELAY ALARM LOW DELAY ALARM HIGH...
- Page 53 F013-A User Manual NOTES FW_F013-A_M_v0501-01_EN Page 53...
- Page 54 User Manual F013-A Page 54 FW_F013-A_M_v0501-01_EN...
- Page 55 F013-A User Manual FW_F013-A_M_v0501-01_EN Page 55...
- Page 56 Fluidwell bv P.O. Box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives the Netherlands the Netherlands © Copyright 2022 - FW_F013-A_M_v0501-01_EN...
