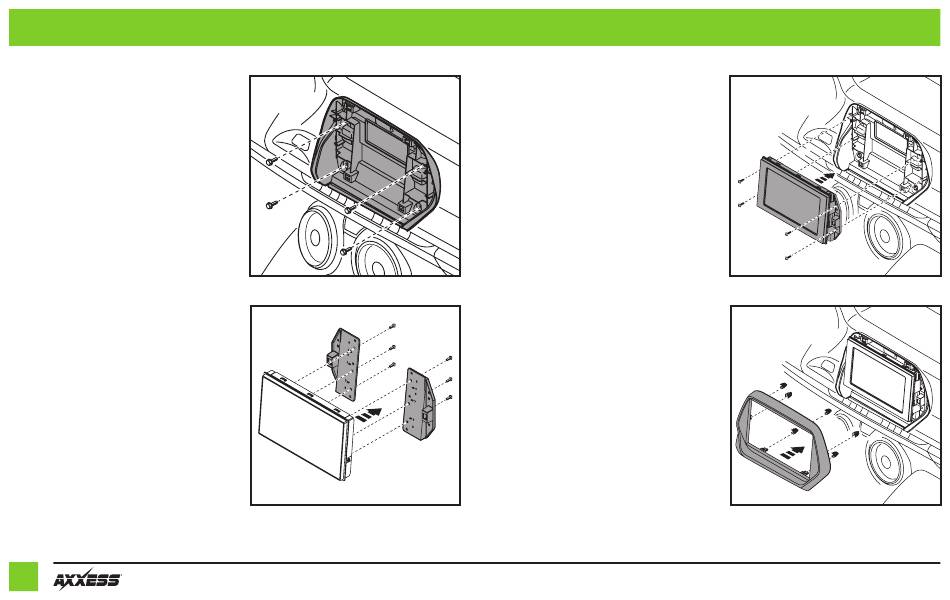

1. Secure the display screen housing to the
dash using the (4) 9/32' factory screws
removed in dash disassembly. (Figure A)
Note: For vehicles equipped with an
8-inch touchscreen radio, remove (2)
9/32" screws from the dash beforehand.
2. Remove the locator pins stamped "8"
from the display screen brackets. Using
the holes stamped "7", secure the
display screen to the brackets using (6)
screws supplied with the radio.
(Figure B)
Note: Reference the installation manual
provided with the radio for which
hardware to use. The display screen and
radio chassis use two different types
of screws.
3. Find a suitable location for the radio
chassis. Route the RGB extension cable
from the radio chassis to the display
screen, then connect it to the
display screen.
6
KIT ASSEMBLY
(Figure A)
(Figure B)
4. Place the display screen trim over the
bracket/display assembly, then secure
the assembly to the display screen
housing using (4) Phillips screws
provided. (Figure C)
5. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio assembly. Metra recommends
using the proper mating adapter from
Metra and/ or Axxess.
6. Reconnect the negative battery terminal
and test the Pioneer radio for proper
operation.
7. Attach (6) panel clips provided onto the
display screen trim bezel, then clip the
bezel over the radio to complete the
installation. (Figure D)
(Figure C)
(Figure D)
