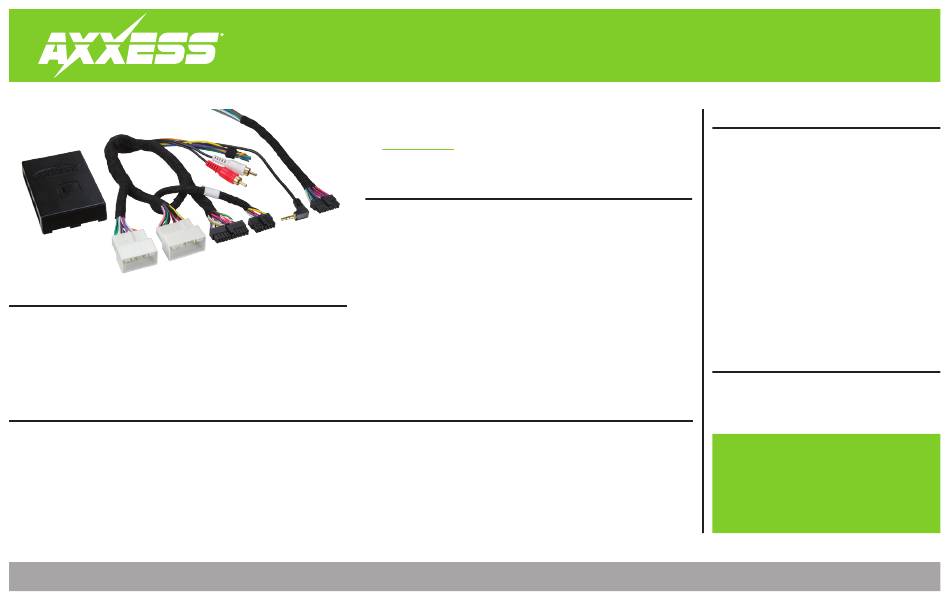

INTERFACE COMPONENTS
• AX-HK1 interface
• AX-HK1 harness
• 16-pin harness with stripped leads
• Female 3.5mm connector with stripped leads
APPLICATIONS
HYUNDAI
Elantra *
2011-2016
Sonata *
Genesis Coupe *
2013-2016
Sonata Hybrid *
Santa Fe *
2013-2016
Tucson *
Santa Fe Sport *
2014-2016
* Without NAV
AxxessInterfaces.com
Hyundai/Kia Data Interface with SWC
Visit
AxxessInterfaces.com
for more detailed information about the product and up-to-date
vehicle specific applications
INTERFACE FEATURES
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains BlueLink
• Designed for amplified* and non-amplified models**
• Retains balance and fade†
• Micro-B USB updatable
* Requires the AX-HYKIA-SPDIF (sold separately)
** Bristol Audio Systems not covered
† Non-amplified models only
KIA
2011-2016
Optima *
2011-2015
Optima Hybrid *
2010-2015
Sorento (with UVO) * 2011-2013
© COPYRIGHT 2021 METRA ELECTRONICS CORPORATION
2010-2016
2011-2015
Sorento *
2014-2016
2011-2016
Soul *
2012-2013
Sportage
2011-2016
AXDIS-HK1
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections ........................................................ 2-4
Installation .............................................................5
Programming .........................................................6
Steering Wheel Control Settings ...................... 7-9
L.E.D. feedback ....................................................5
Changing radio type ...........................................7
Remapping .......................................................7-8
Dual assignment .............................................8-9
Troubleshooting .....................................................9
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun, solder,
and heat shrink • Tape • Wire cutter • Zip ties
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
REV. 9/20/21 INSTAXDIS-HK1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axxess AXDIS-HK1
Summary of Contents for Axxess AXDIS-HK1
-
Page 1: Table Of Contents
AXDIS-HK1 I N S TA L L AT I O N I N S T R U C T I O N S Hyundai/Kia Data Interface with SWC 2010-2016 TABLE OF CONTENTS Connections ............2-4 Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications Installation .............5... -
Page 2: Connections
NON-AMPLIFIED VEHICLES AUX IN RETENTION USB RETENTION Black - Ground Yellow - Constant Blue - Power antenna Orange - Illumination Blue/Pink - VSS Green - Left Rear (+) Green/Black - Left Rear (-) Purple - Right Rear (+) Purple/Black - Left Rear White - Left Front (+) IMPORTANT! White/Black - Left Front (-) - Page 3 AMPLIFIED VEHICLES WITHOUT NAVIGATION SPDIF AUX IN RETENTION USB RETENTION Black - Ground Yellow - Constant Blue - Power antenna Orange - Illumination Blue/Pink - VSS Green - Left Rear (+) Green/Black - Left Rear (-) Purple - Right Rear (+) Purple/Black - Left Rear IMPORTANT! White - Left Front (+)
- Page 4 AMPLIFIED VEHICLES WITH NAVIGATION SPDIF AUX IN RETENTION USB RETENTION Black - Ground Yellow - Constant Blue - Power antenna Orange - Illumination Blue/Pink - VSS Green - Left Rear (+) Green/Black - Left Rear (-) Purple - Right Rear (+) Purple/Black - Left Rear IMPORTANT! White - Left Front (+)
-
Page 5: Installation
INSTALLATION *Note: If the AX-HK1 flashes Red (7) With the key in the off position: L.E.D. feedback L.E.D. Feedback Legend times, and you do not have an Alpine radio • Connect the 16-pin harness with Flash Count Radio The (21) Red L.E.D. flashes represent which connected to it, that means the ASWC-1 stripped leads, and the AX-HK1 Eclipse (type 1) †... -
Page 6: Programming
PROGRAMMING For the steps below, the L.E.D. located inside the interface can only be seen while active. The The radio will shut off at this point. This process should take 5 to 30 interface does not need to be opened to see the L.E.D. seconds. -
Page 7: Steering Wheel Control Settings
Mute button. Follow the steps below to remap the steering wheel control buttons: If the LED flash count does not match the radio in the Radio Legend, then the AXDIS-HK1 must be 1. Ensure the AX-HK1 is visible so you can see the L.E.D. flashes to confirm button recognition. - Page 8 STEERING WHEEL CONTROL SETTINGS (CONT.) Button assignment legend Dual assignment (long button press) The AX-HK1 has the capability to assign (2) functions to a single button, except Volume-Up and 1. Volume-Up 10. Band Volume-Down. Follow the steps below to program the button(s) to the desired setting. 2.
-
Page 9: Dual Assignment
STEERING WHEEL CONTROL SETTINGS TROUBLESHOOTING (CONT.) TROUBLESHOOTING Dual assignment legend Resetting 1. Not allowed 10. Band 1. The Blue reset button is located between the two connectors on the outside of the interface. 2. Press and hold the reset button for 2 seconds, and then let go to reset the interface. 2. - Page 11 REV. 9/20/21 INSTAXDIS-HK1...
- Page 12 AXDIS-HK1 I N S TA L L AT I O N I N S T R U C T I O N S Having difficulties? We’re here to help. Contact our Tech Support line at: 1-386-257-1187 Or via email at: techsupport@metra-autosound.com...
