Local Area Network (LAN) Connection

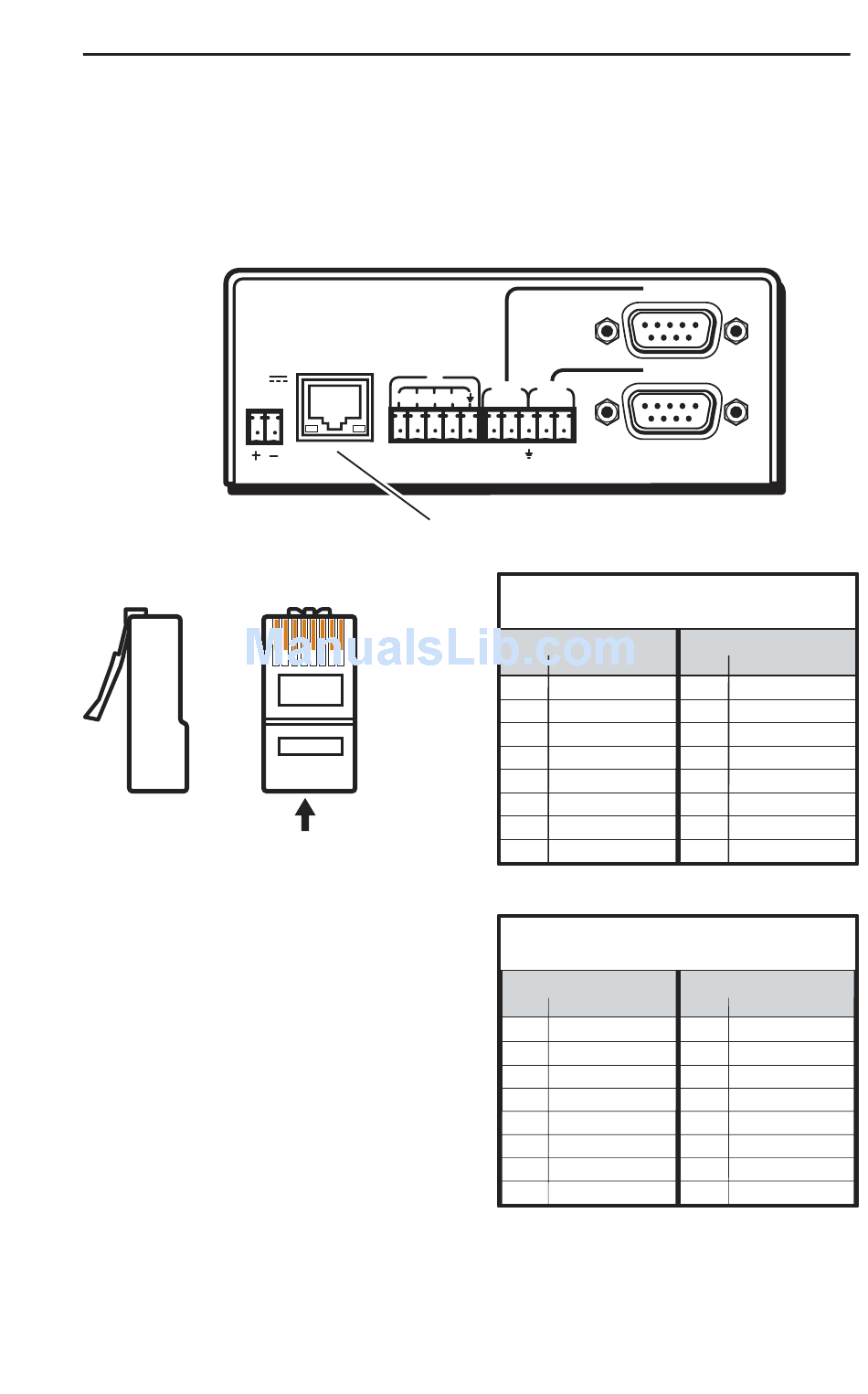

Connect a patch (straight-through) Ethernet cable to the LAN
receptacle on the rear panel if you are connecting the interface
to a switch, hub, or router on your A/V network.
Connect a crossover Ethernet cable to the LAN receptacle on the
rear panel if you are connecting the interface directly to a PC.
POWER
12V
.5A MAX
Side View
Pair Wires
RJ-45 Connector
LAN
I/O
1
2 3
Pins:
1 2 3 4 5 6 7 8
Insert
Twisted
IPL T SF Series Interfaces • Hardware Setup
COM1 COM2
4
TX RX TX RX
Local Area Network (LAN) Receptacle
Straight-through Cable
(for connection to a switch, hub, or router)
End 1
Pin Wire Color
1 white-orange
2 orange
3 white-green
4 blue
5 white-blue
6 green
7 white-brown
8 brown
Crossover Cable
(for direct connection to a PC)
End 1
Pin Wire Color
1 white-orange
2 orange
3 white-green
4 blue
5 white-blue
6 green
7 white-brown
8 brown
COM 1
COM 2
End 2
Pin Wire Color
1 white-orange
2 orange
3 white-green
4 blue
5 white-blue
6 green
7 white-brown
8 brown
End 2
Pin Wire Color
1 white-green
2 green
3 white-orange
4 blue
5 white-blue
6 orange
7 white-brown
8 brown
2-5
