Hardware Setup, cont'd

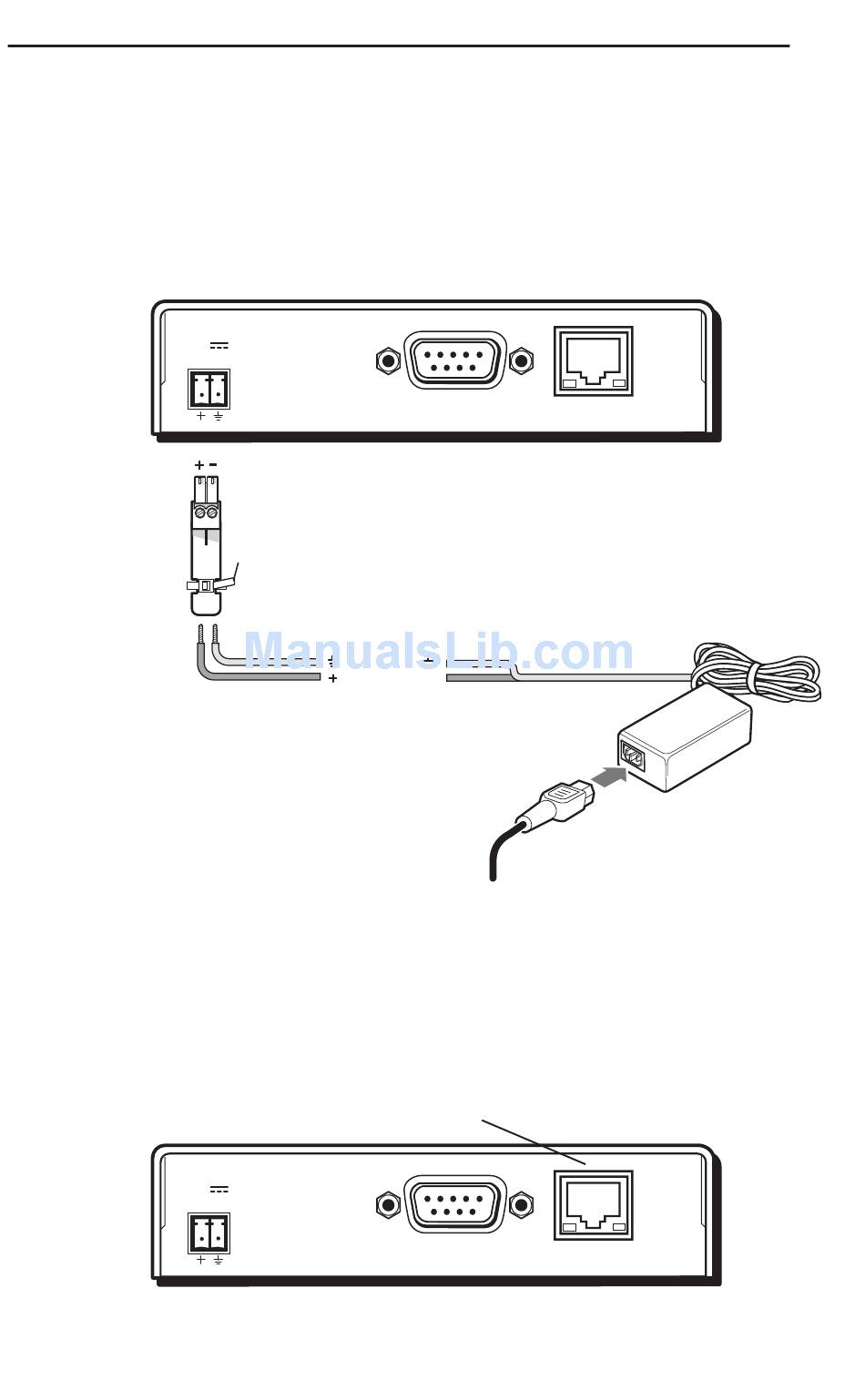

Power Connection
To connect the power supply:
1.
2.
Local Area Network (LAN) Connection
Connect a patch (straight-through) Ethernet cable to the LAN
receptacle on the rear panel if you are connecting the interface
to a switch, hub, or router on your A/V network.
Connect a crossover Ethernet cable to the LAN receptacle on the
rear panel if you are connecting the interface directly to a PC.
IPL T S Series Interfaces • Hardware Setup
2-4
Insert the 2-pole captive screw connector into the power
supply receptacle on the rear panel of the interface.
Connect the female end of the power supply AC cord into
the power supply and connect the male plug end into a
110 VAC receptacle.
00-05-A6-00-00-01
12V
0.5 A
Orange Captive Screw
Connector
Tie Wrap
LAN Receptacle
00-05-A6-00-00-01
12V
0.5 A
COM1
Ground
+12 VDC
COM1
LAN
External
Power Supply
(12 VDC, 1 A )
LAN
