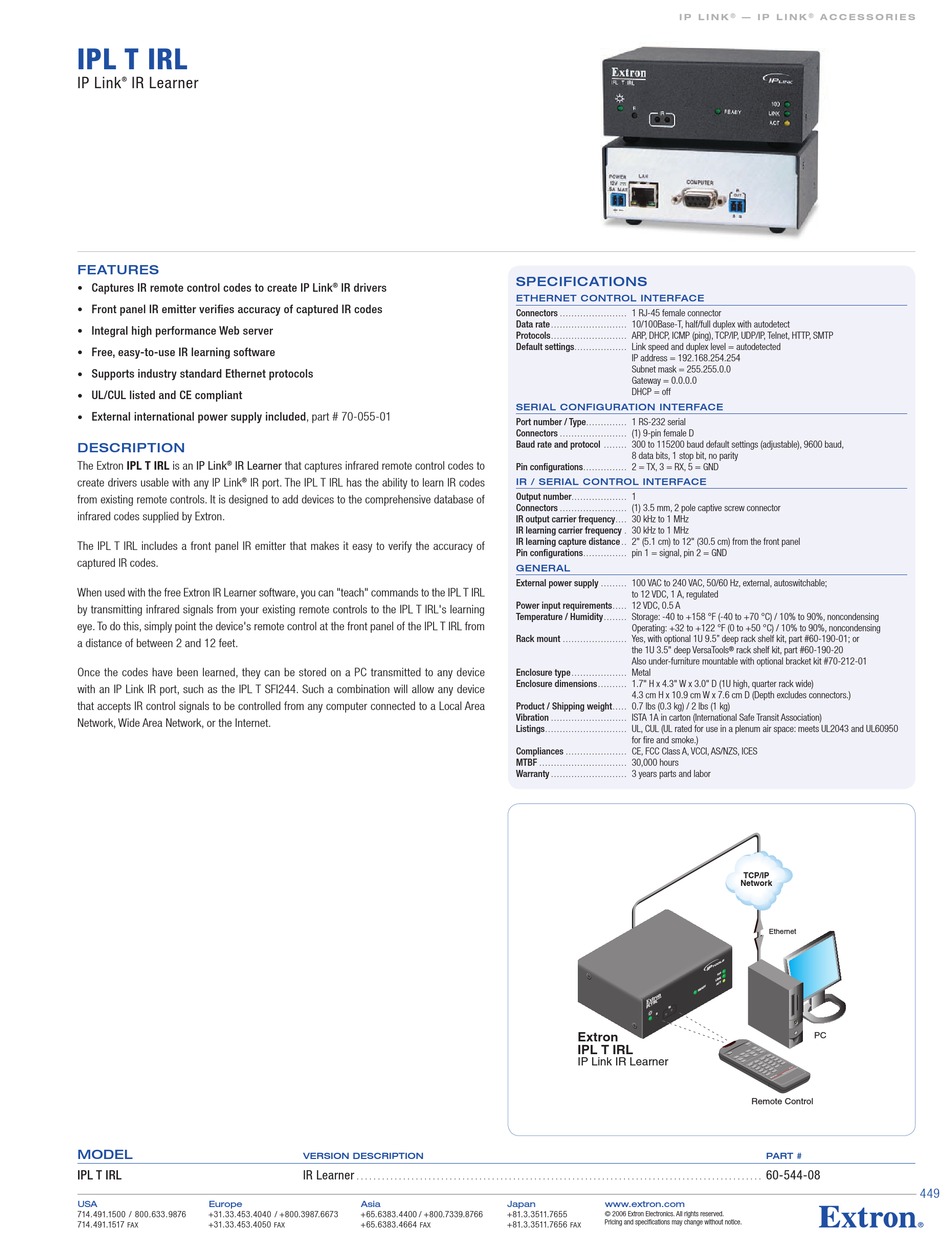

Extron electronics IP Link IR Learner IPL T IRL Specification Sheet

IPL T IRL
IP Link IR Learner
®

fEAturEs

Captures IR remote control codes to create IP Link
•
Front panel IR emitter verifies accuracy of captured IR codes
•
Integral high performance Web server
•
Free, easy-to-use IR learning software
•
Supports industry standard Ethernet protocols
•
UL/CUL listed and CE compliant
•
External international power supply included, part # 70-055-01
•

dEscrIPtIon

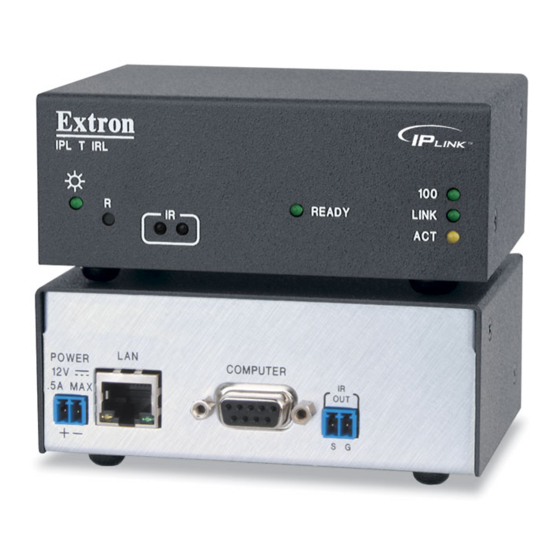

The Extron IPL T IRL is an IP Link
IR Learner that captures infrared remote control codes to
®
create drivers usable with any IP Link ® IR port. The IPL T IRL has the ability to learn IR codes
from existing remote controls. It is designed to add devices to the comprehensive database of
infrared codes supplied by Extron.
The IPL T IRL includes a front panel IR emitter that makes it easy to verify the accuracy of
captured IR codes.
When used with the free Extron IR Learner software, you can "teach" commands to the IPL T IRL
by transmitting infrared signals from your existing remote controls to the IPL T IRL's learning
eye. To do this, simply point the device's remote control at the front panel of the IPL T IRL from
a distance of between 2 and 12 feet.
Once the codes have been learned, they can be stored on a PC transmitted to any device
with an IP Link IR port, such as the IPL T SFI244. Such a combination will allow any device
that accepts IR control signals to be controlled from any computer connected to a Local Area
Network, Wide Area Network, or the Internet.

modEL

IPL T IRL
USA USA Europe Europe
714.491.1500 / 800.633.9876 714.491.1500 / 800.633.9876 +31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673
714.491.1517 714.491.1517 +31.33.453.4050 +31.33.453.4050
FAX FAX
IR drivers
®
VErsIon dEscrIPtIon
IR Learner
.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 +65.6383.4664
FAX FAX FAX FAX
I P L I n k

sPEcIfIcAtIons

EtHErnEt controL IntErfAcE
Connectors.. . . . . . . . . . . . . . . . . . . . . . . . 1 RJ-45 female connector
Data rate.. . . . . . . . . . . . . . . . . . . . . . . . . . . 10/100Base-T, half/full duplex with autodetect
Protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . ARP, DHCP, ICMP (ping), TCP/IP, UDP/IP, Telnet, HTTP, SMTP
Default settings. . . . . . . . . . . . . . . . . . . . Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Gateway = 0.0.0.0
DHCP = off
sErIAL confIGurAtIon IntErfAcE
Port number / Type. . . . . . . . . . . . . . . . 1 RS-232 serial
Connectors.. . . . . . . . . . . . . . . . . . . . . . . . (1) 9-pin female D
Baud rate and protocol .. . . . . . . . . 300 to 115200 baud default settings (adjustable), 9600 baud,
8 data bits, 1 stop bit, no parity
Pin configurations. . . . . . . . . . . . . . . . . 2 = TX, 3 = RX, 5 = GND
Ir / sErIAL controL IntErfAcE
Output number. . . . . . . . . . . . . . . . . . . . . 1
Connectors.. . . . . . . . . . . . . . . . . . . . . . . . (1) 3.5 mm, 2 pole captive screw connector
IR output carrier frequency. . . . . . 30 kHz to 1 MHz
IR learning carrier frequency.. . 30 kHz to 1 MHz
IR learning capture distance.. . . 2" (5.1 cm) to 12" (30.5 cm) from the front panel
Pin configurations. . . . . . . . . . . . . . . . . pin 1 = signal, pin 2 = GND

GEnErAL

External power supply.. . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, external, autoswitchable;
to 12 VDC, 1 A, regulated
Power input requirements. . . . . . . 12 VDC, 0.5 A
Temperature / Humidity. . . . . . . . . . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Rack mount.. . . . . . . . . . . . . . . . . . . . . . . Yes, with optional 1U 9.5" deep rack shelf kit, part #60-190-01; or
the 1U 3.5" deep VersaTools
Also under-furniture mountable with optional bracket kit #70-212-01
Enclosure type.. . . . . . . . . . . . . . . . . . . . Metal
Enclosure dimensions. . . . . . . . . . . . 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)
4.3 cm H x 10.9 cm W x 7.6 cm D (Depth excludes connectors.)
Product / Shipping weight. . . . . . . 0.7 lbs (0.3 kg) / 2 lbs (1 kg)
Vibration.. . . . . . . . . . . . . . . . . . . . . . . . . . . ISTA 1A in carton (International Safe Transit Association)
Listings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL, CUL (UL rated for use in a plenum air space: meets UL2043 and UL60950
for fire and smoke.)
Compliances.. . . . . . . . . . . . . . . . . . . . . . CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 hours
Warranty.. . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor
