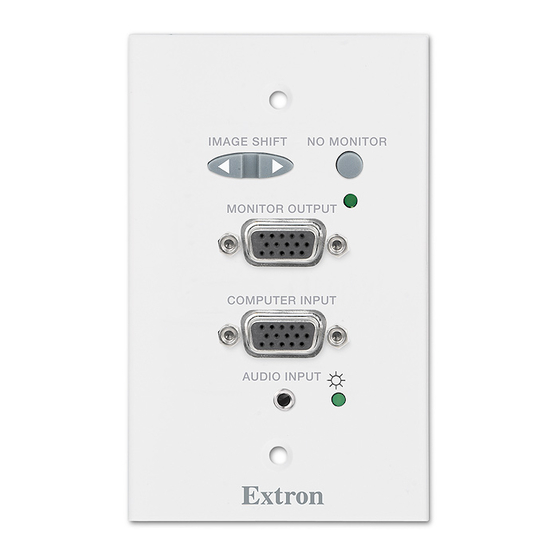

Extron electronics Architectural Interface CIA114 Specifications

Extron electronics Architectural Interface CIA114 Specifications

Extron electronics architectural interface specification sheet

Advertisement

Quick Links

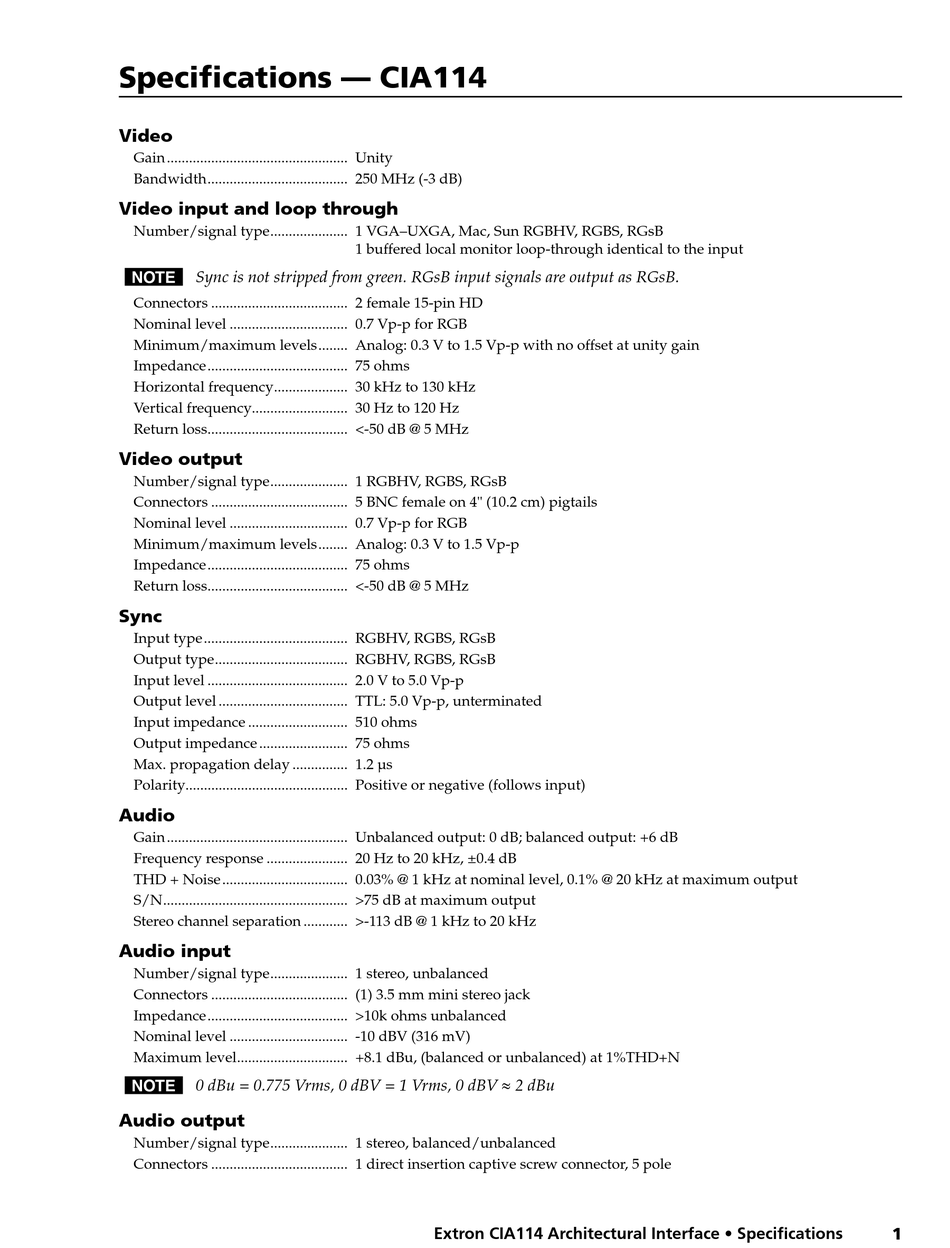

Specifications — CIA114

Video

Gain ������������������������������������������������� Unity
Bandwidth �������������������������������������� 250 MHz (-3 dB)

Video input and loop through

Number/signal type ��������������������� 1 VGA–UXGA, Mac, Sun RGBHV, RGBS, RGsB
N Sync is not stripped from green. RGsB input signals are output as RGsB.
Connectors ������������������������������������� 2 female 15-pin HD
Nominal level �������������������������������� 0�7 Vp-p for RGB
Minimum/maximum levels �������� Analog: 0�3 V to 1�5 Vp-p with no offset at unity gain
Impedance �������������������������������������� 75 ohms
Horizontal frequency �������������������� 30 kHz to 130 kHz
Vertical frequency �������������������������� 30 Hz to 120 Hz
Return loss �������������������������������������� <-50 dB @ 5 MHz

Video output

Number/signal type ��������������������� 1 RGBHV, RGBS, RGsB
Connectors ������������������������������������� 5 BNC female on 4" (10�2 cm) pigtails
Nominal level �������������������������������� 0�7 Vp-p for RGB
Minimum/maximum levels �������� Analog: 0�3 V to 1�5 Vp-p
Impedance �������������������������������������� 75 ohms
Return loss �������������������������������������� <-50 dB @ 5 MHz

Sync

Input type ��������������������������������������� RGBHV, RGBS, RGsB
Output type ������������������������������������ RGBHV, RGBS, RGsB
Input level �������������������������������������� 2�0 V to 5�0 Vp-p
Output level ����������������������������������� TTL: 5�0 Vp-p, unterminated
Input impedance ��������������������������� 510 ohms
Output impedance ������������������������ 75 ohms
Max� propagation delay ��������������� 1�2 µs
Polarity�������������������������������������������� Positive or negative (follows input)

Audio

Gain ������������������������������������������������� Unbalanced output: 0 dB; balanced output: +6 dB
Frequency response ���������������������� 20 Hz to 20 kHz, ±0�4 dB
THD + Noise ���������������������������������� 0�03% @ 1 kHz at nominal level, 0�1% @ 20 kHz at maximum output
S/N �������������������������������������������������� >75 dB at maximum output
Stereo channel separation ������������ >-113 dB @ 1 kHz to 20 kHz

Audio input

Number/signal type ��������������������� 1 stereo, unbalanced
Connectors ������������������������������������� (1) 3�5 mm mini stereo jack
Impedance �������������������������������������� >10k ohms unbalanced
Nominal level �������������������������������� -10 dBV (316 mV)
Maximum level ������������������������������ +8�1 dBu, (balanced or unbalanced) at 1%THD+N
N 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

Audio output

Number/signal type ��������������������� 1 stereo, balanced/unbalanced
Connectors ������������������������������������� 1 direct insertion captive screw connector, 5 pole
1 buffered local monitor loop-through identical to the input
Extron CIA114 Architectural Interface • Specifications
