Installation

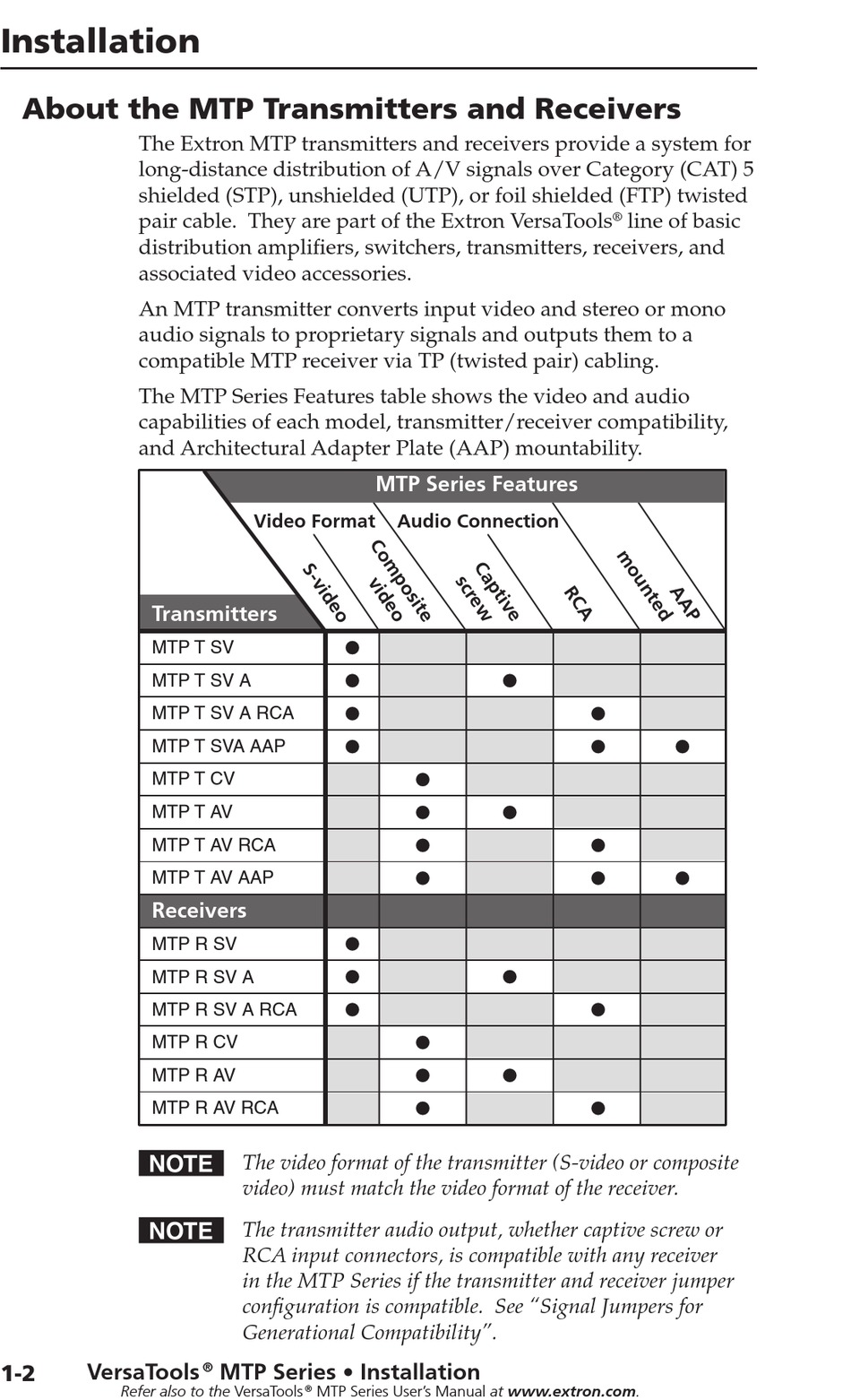

About the MTP Transmitters and Receivers
The Extron MTP transmitters and receivers provide a system for
long‑distance distribution of A/V signals over Category (CAT) 5
shielded (STP), unshielded (UTP), or foil shielded (FTP) twisted
pair cable. They are part of the Extron VersaTools
distribution amplifiers, switchers, transmitters, receivers, and
associated video accessories.
An MTP transmitter converts input video and stereo or mono
audio signals to proprietary signals and outputs them to a
compatible MTP receiver via TP (twisted pair) cabling.
The MTP Series Features table shows the video and audio
capabilities of each model, transmitter/receiver compatibility,
and Architectural Adapter Plate (AAP) mountability.
Transmitters
MTP T SV
MTP T SV A
MTP T SV A RCA
MTP T SVA AAP
MTP T CV
MTP T AV
MTP T AV RCA
MTP T AV AAP
Receivers
MTP R SV
MTP R SV A
MTP R SV A RCA
MTP R CV
MTP R AV
MTP R AV RCA
N
N
VersaTools
1-2
Refer also to the VersaTools
Video Format
The video format of the transmitter (S-video or composite
video) must match the video format of the receiver.
The transmitter audio output, whether captive screw or
RCA input connectors, is compatible with any receiver
in the MTP Series if the transmitter and receiver jumper
configuration is compatible. See "Signal Jumpers for
Generational Compatibility".
MTP Series • Installation
®
MTP Series User's Manual at www.extron.com.
®
MTP Series Features
Audio Connection
line of basic
®
