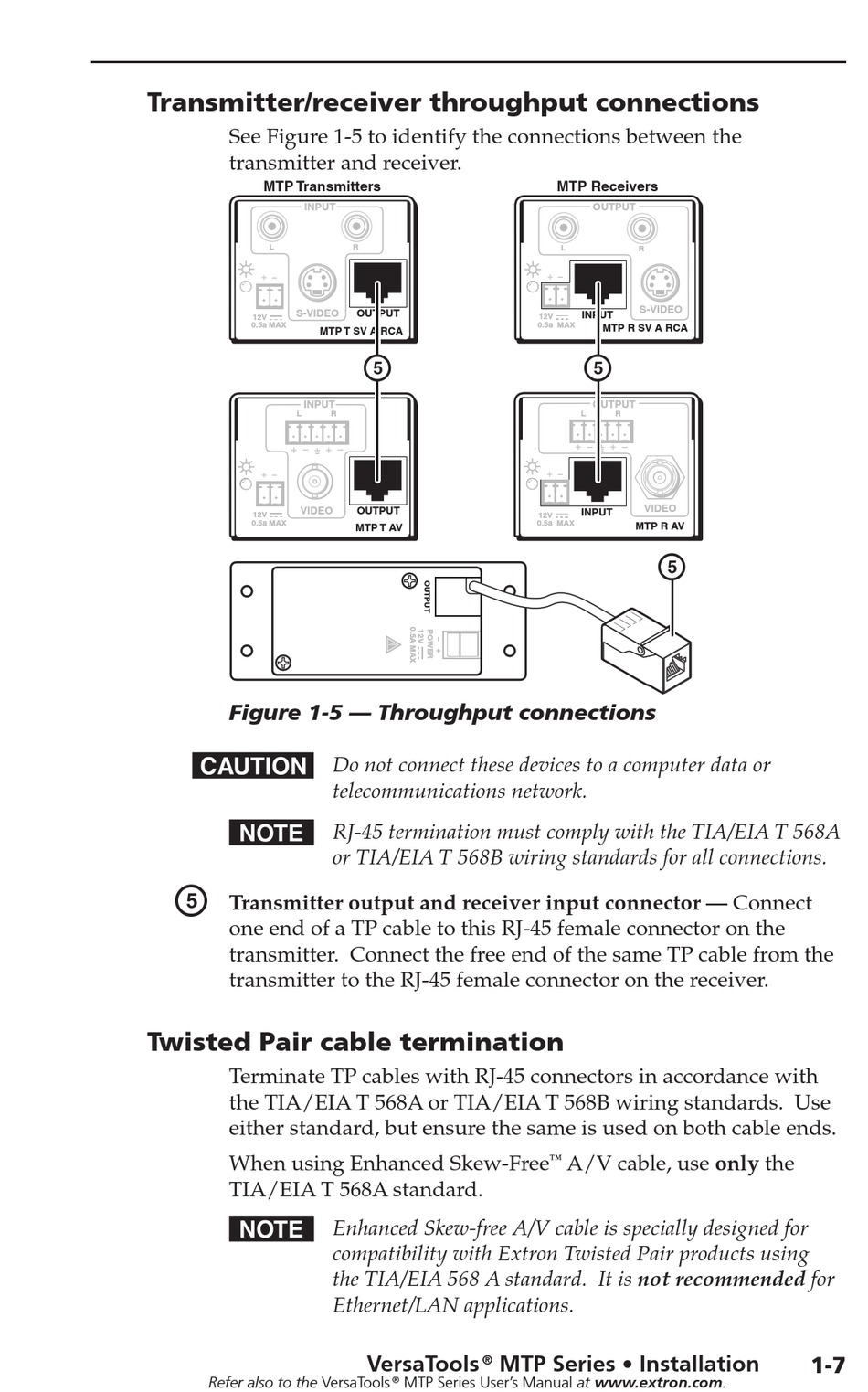

Transmitter/receiver throughput connections

See Figure 1‑5 to identify the connections between the
transmitter and receiver.
MTP Transmitters
INPUT
L
S-VIDEO
12V
0.5a MAX
INPUT
L
VIDEO
12V
0.5a MAX
Figure 1-5 — Throughput connections
C
N
e
Transmitter output and receiver input connector — Connect
one end of a TP cable to this RJ‑45 female connector on the
transmitter. Connect the free end of the same TP cable from the
transmitter to the RJ‑45 female connector on the receiver.

Twisted Pair cable termination

Terminate TP cables with RJ‑45 connectors in accordance with
the TIA/EIA T 568A or TIA/EIA T 568B wiring standards. Use
either standard, but ensure the same is used on both cable ends.
When using Enhanced Skew‑Free
TIA/EIA T 568A standard.
N
Refer also to the VersaTools
R
OUTPUT
MTP T SV A RCA
e
R
OUTPUT
MTP T AV
Do not connect these devices to a computer data or
telecommunications network.
RJ-45 termination must comply with the TIA/EIA T 568A
or TIA/EIA T 568B wiring standards for all connections.
Enhanced Skew-free A/V cable is specially designed for
compatibility with Extron Twisted Pair products using
the TIA/EIA 568 A standard. It is not recommended for
Ethernet/LAN applications.
VersaTools
®
MTP Series User's Manual at www.extron.com.
®
MTP Receivers
OUTPUT
L
R
S-VIDEO
INPUT
12V
0.5a MAX
MTP R SV A RCA
e
OUTPUT
L R
VIDEO
INPUT
12V
0.5a MAX
MTP R AV
e
A/V cable, use only the
™
MTP Series • Installation
