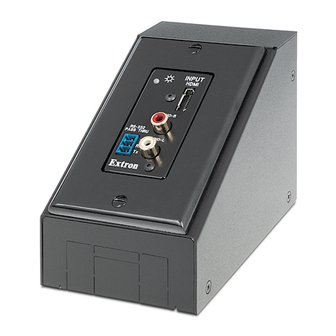

Extron electronics Surface Mount Boxes SMB 101 Specifications

Specifications — SMB 100 Series
General
Mounting ...................................... Surface mountable or mountable to furniture including lecterns and tabletops
Enclosure type .............................. Metal
Enclosure dimensions
SMB 101 ............................. 3.7" H x 3.1" W x 5.25" D (1 gang)
SMB 102 ............................. 3.7" H x 4.9" W x 5.25" D (2 gang)
SMB 103 ............................. 3.7" H x 6.7" W x 5.25" D (3 gang)
SMB 104 ............................. 3.7" H x 8.5" W x 5.25" D (4 gang)
SMB 105 ............................. 3.7" H x 10.3" W x 5.25" D (5 gang)
SMB 106 ............................. 3.7" H x 12.1" W x 5.25" D (6 gang)
SMB 107 ............................. 3.7" H x 13.9" W x 5.25" D (7 gang)
Number of accessible AAP openings
SMB 101/102/103 ............ 1 double-space (back), 1 double-space (bottom)
SMB 104/105 .................... 2 double-space (back), 2 double-space (bottom)
SMB 106/107 .................... 3 double-space (back), 3 double-space (bottom)
Included blank AAP plates
SMB 101/102/103 ............ 2 single-space
SMB 104/105 .................... 2 single-space, 1 double-space
SMB 106/107 .................... 2 single-space, 2 double-space
Bezel knockouts ........................... (2) 0.96" H x 0.66" W (2.4 cm H x 1.7 cm W) per box
Raceway knockouts
SMB 101 ............................. 1 small
All other models .............. 1 small, 1 large
Raceway knockout dimensions
Small knockouts ............... 0.48" H x 1.07" W (1.2 cm H x 2.7 cm W)
Large knockouts .............. 0.9" H x 2.0" W (2.3 cm H x 5.1 cm W)
Desk mounting holes .................. 2
Wall mounting slots .................... 3
Front angle .................................... 60 degrees from vertical, 30 degrees from horizontal
Product weight
SMB 101 ............................. 0.9 lbs (0.4 kg)
SMB 102 ............................. 1.2 lbs (0.5 kg)
SMB 103 ............................. 1.5 lbs (0.7 kg)
SMB 104 ............................. 1.8 lbs (0.8 kg)
SMB 105 ............................. 2.1 lbs (1.0 kg)
SMB 106 ............................. 2.3 lbs (1.0 kg)
SMB 107 ............................. 2.6 lbs (1.2 kg)
Shipping weight
SMB 101, SMB 102 ........... 2 lbs (1 kg)
SMB 103 ............................. 3 lbs (1 kg)
SMB 104 ............................. 3 lbs (2 kg)
SMB 105 ............................. 4 lbs (2 kg)
SMB 106 ............................. 7 lbs (3 kg)
SMB 107 ............................. 7 lbs (4 kg)
Vibration ....................................... ISTA/NSTA 1A in carton (International Safe Transit Association)
Warranty ....................................... 3 years parts and labor
1-2
Extron SMB 101/102/103/104/105/106/107 Surface Mount Boxes • Specifications
9.4 cm H x 7.9 cm W x 13.3 cm D
9.4 cm H x 12.4 cm W x 13.3 cm D
9.4 cm H x 17.0 cm W x 13.3 cm D
9.4 cm H x 21.6 cm W x 13.3 cm D
9.4 cm H x 26.2 cm W x 13.3 cm D
9.4 cm H x 30.7 cm W x 13.3 cm D
9.4 cm H x 35.3 cm W x 13.3 cm D
