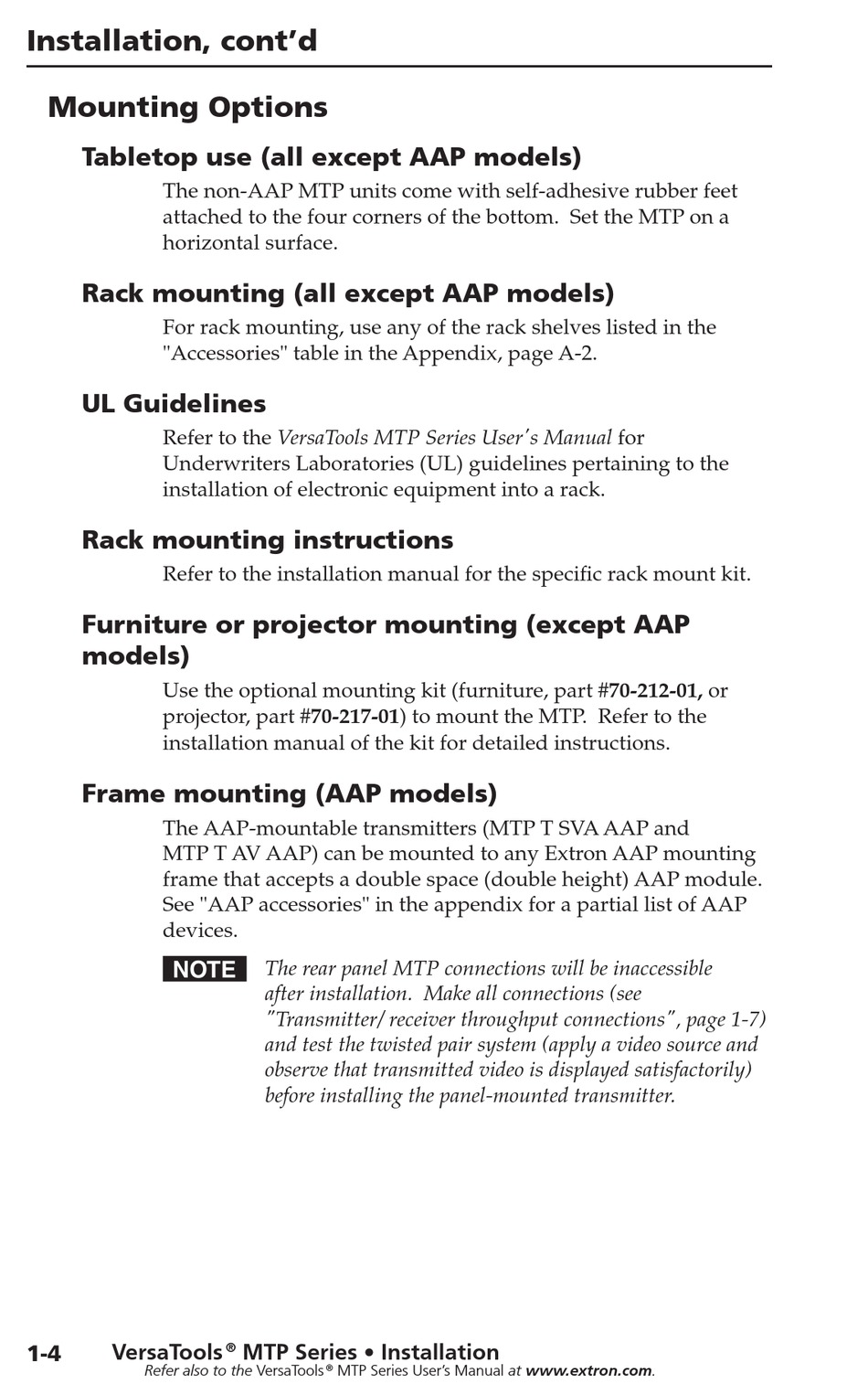

Installation, cont'd

Mounting Options

Tabletop use (all except AAP models)

The non‑AAP MTP units come with self‑adhesive rubber feet
attached to the four corners of the bottom. Set the MTP on a
horizontal surface.

Rack mounting (all except AAP models)

For rack mounting, use any of the rack shelves listed in the
"Accessories" table in the Appendix, page A‑2.

UL Guidelines

Refer to the VersaTools MTP Series User's Manual for
Underwriters Laboratories (UL) guidelines pertaining to the
installation of electronic equipment into a rack.

Rack mounting instructions

Refer to the installation manual for the specific rack mount kit.
Furniture or projector mounting (except AAP
models)
Use the optional mounting kit (furniture, part #70-212-01, or
projector, part #70-217-01) to mount the MTP. Refer to the
installation manual of the kit for detailed instructions.

Frame mounting (AAP models)

The AAP‑mountable transmitters (MTP T SVA AAP and
MTP T AV AAP) can be mounted to any Extron AAP mounting
frame that accepts a double space (double height) AAP module.
See "AAP accessories" in the appendix for a partial list of AAP
devices.
N
VersaTools
1-4
Refer also to the VersaTools
The rear panel MTP connections will be inaccessible
after installation. Make all connections (see
"Transmitter/ receiver throughput connections", page 1-7)
and test the twisted pair system (apply a video source and
observe that transmitted video is displayed satisfactorily)
before installing the panel-mounted transmitter.
MTP Series • Installation
®
MTP Series User's Manual at www.extron.com.
®
