Installation, cont'd
Receiver output connections

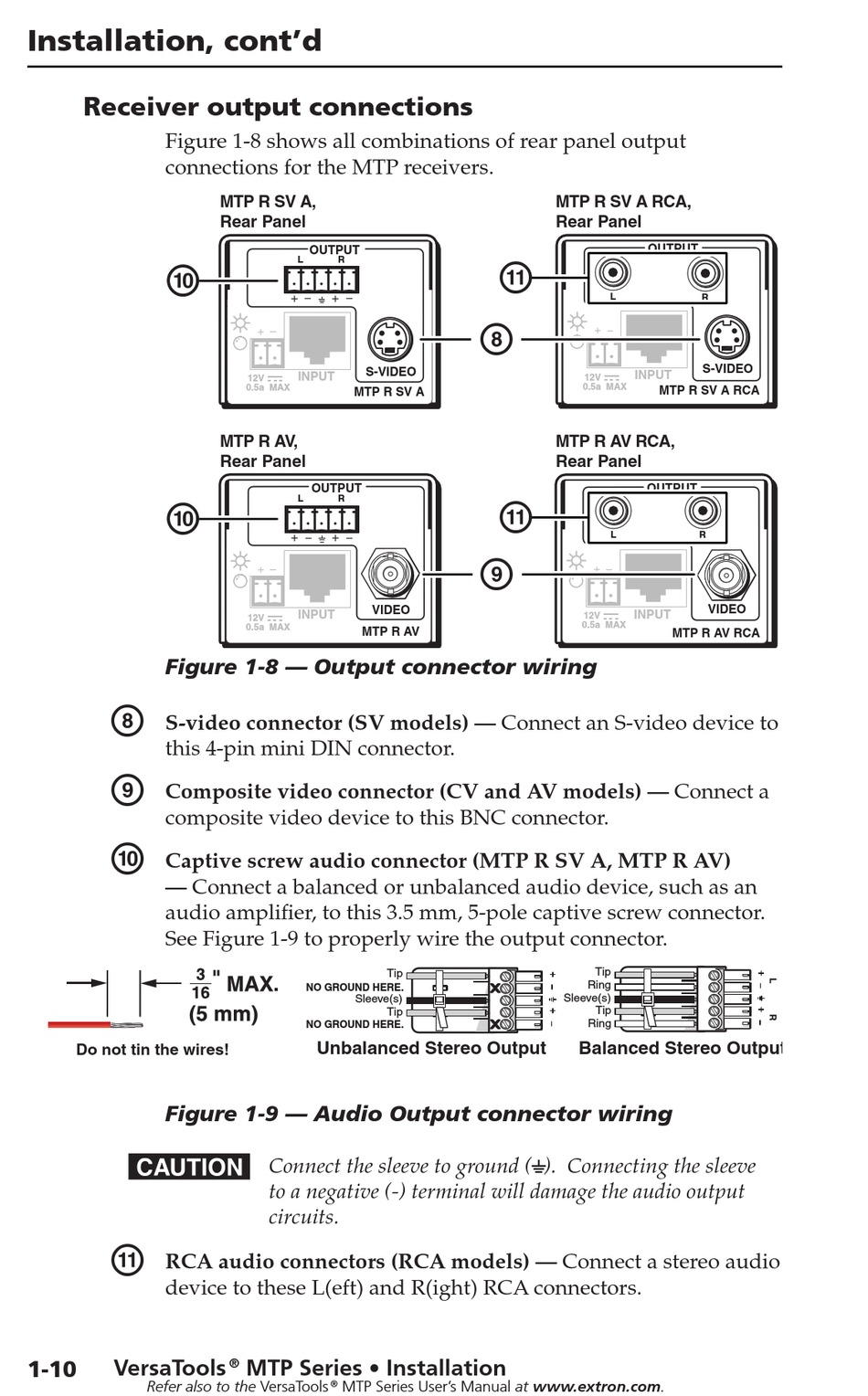

Figure 1‑8 shows all combinations of rear panel output
connections for the MTP receivers.
j
j
Figure 1-8 — Output connector wiring
h
S-video connector (SV models) — Connect an S‑video device to
this 4‑pin mini DIN connector.
i
Composite video connector (CV and AV models) — Connect a
composite video device to this BNC connector.
j
Captive screw audio connector (MTP R SV A, MTP R AV)
— Connect a balanced or unbalanced audio device, such as an
audio amplifier, to this 3.5 mm, 5‑pole captive screw connector.
See Figure 1‑9 to properly wire the output connector.
Do not tin the wires!
Figure 1-9 — Audio Output connector wiring
C
k
RCA audio connectors (RCA models) — Connect a stereo audio
device to these L(eft) and R(ight) RCA connectors.
VersaTools
1-10
Refer also to the VersaTools
MTP R SV A,
Rear Panel
OUTPUT
L R
S-VIDEO
INPUT
12V
0.5a MAX
MTP R SV A
MTP R AV,
Rear Panel
OUTPUT
L R
VIDEO
INPUT
12V
0.5a MAX
MTP R AV
NO GROUND HERE.
Sleeve(s)
NO GROUND HERE.
Unbalanced Stereo Output
Connect the sleeve to ground (_). Connecting the sleeve
to a negative (-) terminal will damage the audio output
circuits.
MTP Series • Installation
®
MTP Series User's Manual at www.extron.com.
®
k
h
k
i
Tip
Tip
MTP R SV A RCA,
Rear Panel
OUTPUT
L
R
S-VIDEO
INPUT
12V
0.5a MAX
MTP R SV A RCA
MTP R AV RCA,
Rear Panel
OUTPUT
L R
VIDEO
INPUT
12V
0.5a MAX
MTP R AV RCA
Tip
Ring
Sleeve(s)
Tip
Ring
Balanced Stereo Output
