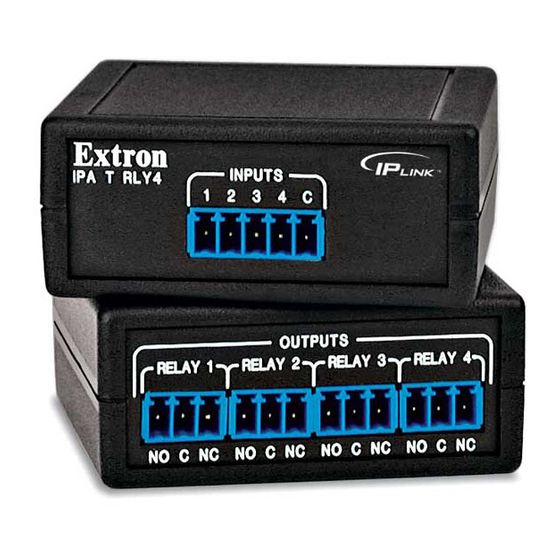

Extron electronics IP Link Accessory with Four Relays IPA T RLY4 Specifications

IPA T RLY4
IP Link Accessory with Four Relays
®

fEAturEs

Controls screens, projectors, lights, security gates, and more
•
• Provides four independent relays
Works independently or as an add-on to any IP Link
•

dEscrIPtIon

The Extron IPA T RLY4 is an IP Link
projectors, lights, security gates, and more. It provides four independent relays and can be used
as a free standing device or added on to any IP Link product with Flex I/O ports.
TCP/IP
Network
Ethernet
Remote User
Control &
Administrator
Monitoring
modEL
IPA T RLY4
486
product with Flex I/O ports
®
Accessory with Four Relays for controlling screens,
®
2
0 5
1 2
3 0
0 9
D #
U I I/ O
4
N
L A 3
2
1
R
W E
P O
V X
1 2 M A
.5 A
Extron
12V Power
Supply
VErsIon dEscrIPtIon
Four Relays
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USA West USA West
+1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX +1.714.491.1517 FAX

sPEcIfIcAtIons

rELAY controL

Relay control ports
number / Type . . . . . . . . . . . . . . . . . . . . 4 momentary
Relay control connectors . . . . . . (1) 3.5 mm captive screw connectors, 5 pole, for control input and power
Relay coil operating current . . . 0.015 A
Relay control contact rating . . . 24 V, 1 A

GEnErAL

Temperature / Humidity . . . . . . . . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Rack mount . . . . . . . . . . . . . . . . . . . . . . No
Enclosure type . . . . . . . . . . . . . . . . . . . Plastic
Enclosure dimensions . . . . . . . . . . 1.0" H x 2.4" W x 2.3" D 2.5 cm H x 6.1 cm W x 5.8 cm D
Product weight . . . . . . . . . . . . . . . . . . 0.1 lbs (<0.1 kg)
Shipping weight . . . . . . . . . . . . . . . . . 1 lb (1 kg)
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . ISTA 1A in carton (International Safe Transit Association)
Listings . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL, CUL
Compliances . . . . . . . . . . . . . . . . . . . . . CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 hours
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
Extron
IPL T SF24
Ethernet Control
Interface
1
M
C O
2
M
C O
M 2
C O
M 1
C O
R X
T X
R X
T X
IP A
T R
L Y
4
IN
1 P U
2 T S
3
4
C
Extron
Front
IPA T RLY4
®
IP Link
+12VDC
with Four Relays
(Common)
USA East USA East
+1.919.863.1794 / +800.633.9876 +1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX +1.919.863.1797 FAX
I P L I n k
(4) 3.5 mm captive screw connectors, 3 pole, NO & NC for configurable
relay outputs
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Y 4
L A
R E
Y 3
L A
R E
Y 2 N C
C
L A
R E N O
N C
Y 1
L A C
N O
R E
N C
C
N O
N C
C
N O
Rear
Accessory
Lighting System
PArt #
60-545-03
www.extron.com www.extron.com
© 2008 Extron Electronics. All rights reserved. © 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice. Pricing and specifications may change without notice.
A c c e s s o r I e s
®
