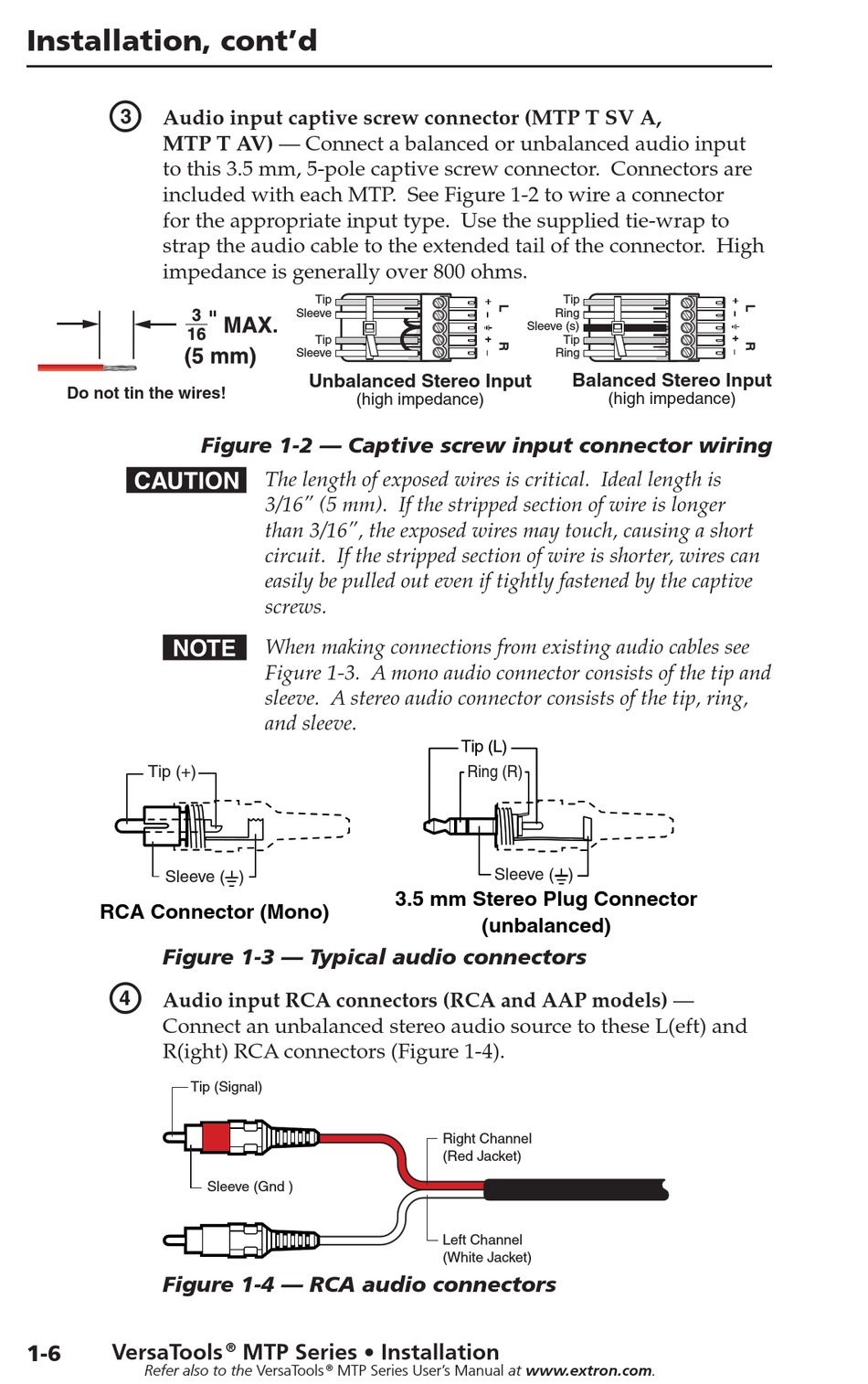

Installation, cont'd
c
Audio input captive screw connector (MTP T SV A,
MTP T AV) — Connect a balanced or unbalanced audio input
to this 3.5 mm, 5‑pole captive screw connector. Connectors are
included with each MTP. See Figure 1‑2 to wire a connector
for the appropriate input type. Use the supplied tie‑wrap to
strap the audio cable to the extended tail of the connector. High
impedance is generally over 800 ohms.
Do not tin the wires!
C
N
Tip (+)
Sleeve ( )
RCA Connector (Mono)
Figure 1-3 — Typical audio connectors
d
Audio input RCA connectors (RCA and AAP models) —
Connect an unbalanced stereo audio source to these L(eft) and
R(ight) RCA connectors (Figure 1‑4).
Figure 1-4 — RCA audio connectors
VersaTools
1-6
Refer also to the VersaTools
Tip
Sleeve
Tip
Sleeve
Unbalanced Stereo Input
Figure 1-2 — Captive screw input connector wiring
The length of exposed wires is critical. Ideal length is
3/16" (5 mm). If the stripped section of wire is longer
than 3/16", the exposed wires may touch, causing a short
circuit. If the stripped section of wire is shorter, wires can
easily be pulled out even if tightly fastened by the captive
screws.
When making connections from existing audio cables see
Figure 1-3. A mono audio connector consists of the tip and
sleeve. A stereo audio connector consists of the tip, ring,
and sleeve.
Tip (Signal)
Sleeve (Gnd )
MTP Series • Installation
®
MTP Series User's Manual at www.extron.com.
®
(high impedance)
Tip (L)
Ring (R)
Sleeve ( )
3.5 mm Stereo Plug Connector
(unbalanced)
Right Channel
(Red Jacket)
Left Channel
(White Jacket)
Tip
Ring
Sleeve (s)
Tip
Ring
Balanced Stereo Input
(high impedance)
