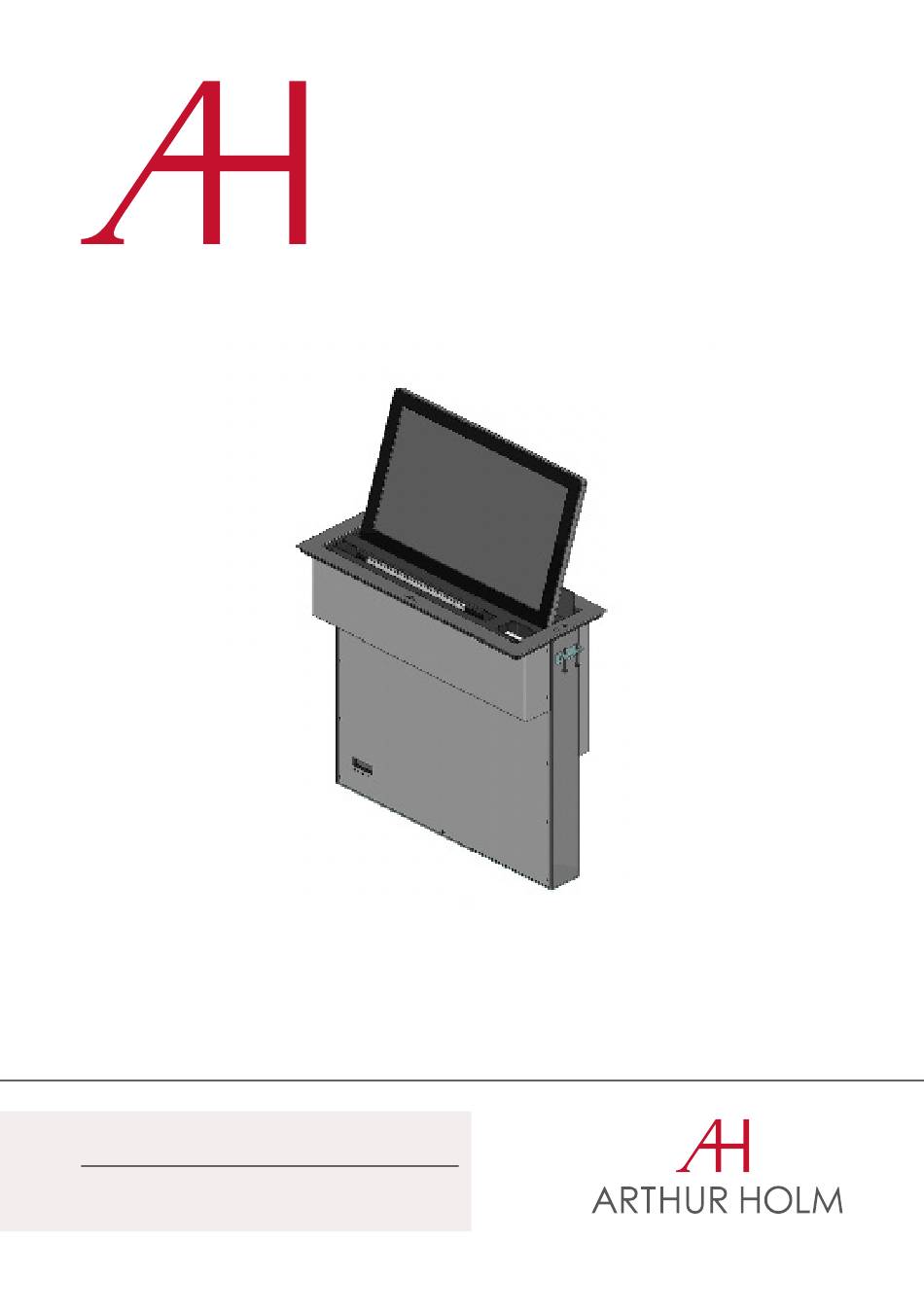

- Page 1 User Guide DynamicX2KM HDCP compliant aluminium retractable motorised monitor Technology Serving Design Danish craftmanship Mediterranean soul...
-
Page 2: Table Of Contents
TABLE OF CONTENTS REGULATIONS AND SECURITY SAFETY INSTRUCTIONS SYSTEM DESCRIPTION MAXIMUM KEYBOARD / MOUSE DIMENSIONS CONTROLS OSD MENU ISD MENU INPUT CONNECTORS AHnet PROTOCOL VIDEO SIGNALS AHLink INFORMATION ON DISPOSAL WARRANTY TERMS AND CONDITIONS... - Page 3 WELCOME Thank you very much for purchasing an Arthur Holm product. Please, read these installation and operating instructions carefully and keep them in a safe place for future consultations. We remain at your entire disposal if you have any suggestions.
- Page 4 ABOUT US The Company Arthur Holm has its origins in the Danish furniture designer Jorgen Alex Jensen, who was active during the sixties and the seventies. His design inspiration and his concept of ergonomics have been continued by his family, who is the design force behind Arthur Holm product range. The...
-
Page 5: Regulations And Security
REGULATIONS AND SECURITY ATTENTION: Do not disassemble or modify the device in any way. This symbol warns of the presence of dangerous un-insulated voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit. - Page 6 SAFETY INSTRUCTIONS Wiring connected to hazardous voltage requires installation by qualified personnel or the use of ready-made flexible cables. For your security, your equipment must be connected to an electrical outlet with grounding connection protection. Since the plug is used to disconnect the device, the operating electrical outlet must be in an easily accessible place.
-
Page 7: System Description
SYSTEM DESCRIPTION General DynamicX2 monitor combined with automated keyboard mouse, creating a motorised automation system that lifts the keyboard and mouse at the same time the monitor is being raised. This combination offers the best possible quality Full HD screen with an elegant keyboard and mouse storage that converts into a work station by the touch of a button. - Page 8 SYSTEM DESCRIPTION Available Models MODEL DESCRIPTION HDCP compliant vertically retractable aluminium 17,3" Full HD monitor with 20 degrees of automatic inclination. Single engine patented mechanism. Solid aluminium monitor natural anodisation finish featuring 3 mm. double sided anti reflective black edged glass.
- Page 9 SYSTEM DESCRIPTION Options AH17DX2KM AH22DX2KM TS170HDG TS2216G Projected capacitive multi-touch Projected capacitive multi-touch screen screen CL (Min.5 units) CL (Min.5 units) Laser engraved logo Laser engraved logo TSV (Min.10 units) TSV (Min.10 units) Touch sensor for Touch sensor for UnderCover UnderCover UCS (Min.10 units) UCS (Min.10 units)
- Page 10 SYSTEM DESCRIPTION Box Contents Before the installation of your retractable monitor, please check the contents of the shipping box, it must contain the following items: • Monitor • Power cord • Remote control (1 per 5 monitors) • Power supply 100-2 40Vac, 50-60Hz. Output 12V •...
-
Page 11: Maximum Keyboard / Mouse Dimensions
DX2KM MAXIMUM KEYBOARD/MOUSE DIMENSIONS DX2KM 17 Maximum Keyboard/Mouse dimensions... - Page 12 DX2KM MAXIMUM KEYBOARD/MOUSE DIMENSIONS DX2KM 22 Maximum Keyboard/Mouse dimensions...
-
Page 13: Controls
CONTROLS IR sensor The IR sensor is located on the lower right side of the screen. Monitor movement controls On the upper cover plate, there are two buttons to control the UP and DOWN monitor movements. 1. Raising the monitor: To rise up the monitor display, press the button (1) on the right hand side of the cover plate. - Page 14 CONTROLS Remote control POWER Switch ON/OFF the monitor MENU Activates the OSD menu on screen Control up on the OSD menu DOWN Control down on the OSD menu LEFT Control left on the OSD menu RIGHT Control right on the OSD menu Selects the function on the OSD menu.
-
Page 15: Osd Menu
OSD MENU Accessing the menu system • With the OSD off, push the MENU button to activate the main OSD menu. • Press the UP and DOWN buttons to move from one function to another. Please refer to the following sections below to view a complete list of all the functions available for the monitor. - Page 16 OSD MENU Noise Reduction: Adjusts the image noise filter ∙ Off ∙ Low ∙ Medium ∙ High ∙ Default Screen: (Only for analogue signals) ∙ Auto Adjust ∙ Horizontal Position ∙ Vertical Position ∙ Size ∙ Phase Backlight: Adjusts the backlight screen's level Colour Range: Adjusts the colour range ∙...
- Page 17 OSD MENU Option Language: OSD language selection Restore Factory Default: Adjusts the parameters to the initial factory parameters Blending: OSD window transparency ∙ Low ∙ Medium ∙ High ∙ Off OSD Duration: Adjusts the time that the OSD menu window remains on the screen Software Update (USB): Port to use for firmware's upgrade.
-
Page 24: Input Connectors
INPUT CONNECTORS 12V D.C. Power supply input connector. XLR-4 connector. - 1,2: Ground - 3,4: 12Vdc GPI: Monitor external contact close control. SubD9 female. 1. GPI1 + 2. GPI1 – 3. GPI2 + 4. GPI2 – 5. GPI3 – 6. GPI3 + 7. - Page 25 INPUT CONNECTORS DVI 1/ DVI A: DVI-I input signal. Connect a DVI (digital) input signal and select DVI 1 on the OSD monitor menu. Use a DVI to VGA adaptor to connect an ARGB (analogue) input signal and select DVI-A on the OSD monitor menu. DVI 2: DVI-D input signal.
-
Page 26: Ahnet Protocol
AHnet PROTOCOL Communications protocol COMMUNICATION RS422 CONNECTION RJ45 WIRING CAT-6 Speed and configuration BAUD RATE 38400 DATA BITS PARITY NONE STOP BITS Wiring Diagram 1. Data TX + 2. Data TX – 3. Data RX + 4. NC 5. NC 6 .Data RX –... - Page 27 AHnet PROTOCOL AHnet protocol Uses 5 bytes communication: BYTE 0 START BYTE BYTE 1 ADDRESS BYTE BYTE 2 COMMAND BYTE BYTE 3 VALUE 1 BYTE 4 VALUE 2 Commands COMMAND DESCRIPTION RESPONSE FA XX 01 01 00 GO UP FB XX 01 01 00 FA XX 01 00 00 GO DOWN FB XX 01 00 00...
- Page 28 AHnet PROTOCOL BITE CLOSED OPENED SCREEN ON SCREEN OFF DVI-A DVI 1-D DVI 2-D PROTECTION STOP MONITOR OK BITE BUTTON LOCK BUTTON UNLOCK...
- Page 29 AHnet PROTOCOL Picture Commands COMMAND DESCRIPTION RESPONSE FA XX 15 00 00 ASK FOR BACKLIGHT LEVEL FB XX 15 00 ZZ FA XX 16 00 00 ASK FOR CONTRAST LEVEL FB XX 16 00 ZZ FA XX 17 00 00 ASK FOR BRIGHTNESS LEVEL FB XX 17 00 ZZ Number of the monitor address.
-
Page 30: Video Signals
VIDEO SIGNALS RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070 Progressive 1024x768@75Hz 60.023 75.030 Progressive 1280x720@60Hz 44.697 59.915 Progressive 1360x768@60Hz 47.720 59.799 Progressive... -
Page 31: Ahlink
AHLink AHlink is used to control and set-up the unit. By default, the AHLink wireless signal is deactivated. To activate it, please press and hold the Open and Close buttons simultaneously on the cover plate for 5 seconds. You can also activate the AHlink signal with the LCD (Interactive Setup Display) - Page 32 AHLink your device does appear screen, AHLink signal might no longer be active. The AHLink name always begins with characters “AH” followed by the four last MAC AHLink address. You must select the AH device. After selecting the AH device, the first page will upload on your screen.
- Page 33 AHLink SERIAL Serial number of the unit Firmware version Controls the Up and Down monitor movements DISP: Turns the display ON or OFF DVIA, DVI1, DVI2: Input source selection BACKL: Backlight adjustments CONTR: Contrast adjustments BRIGHT: Brightness adjustments SAVE VALUES: Memorises the backlight, contrast and brightness values AHLINK OFF: Turns off the AHlink signal COMMAND: Information of the last AHnet...
-
Page 34: Information On Disposal
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT This symbol products and/or accompanying documents means that used electrical electronic products should not be mixed with general household waste. proper treatment, recovery recycling, please take these products designated collection points, where... -
Page 35: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS Albiral Display Solutions warrants this product against manufacturing defects and workmanship for a period of five (5) years from the date of purchase, subject to the conditions below. Mechanical parts: The engine and the product’s mechanical parts are warranted against manufacturing defects and workmanship for a period of five (5) years from the date of purchase. - Page 36 If you have any doubts concerning the terms of this warranty, please contact: business@albiral.com +34 938 502 376 Copyright © Nov. 2020. All rights reserved Albiral Display Solutions SL. Registered trademarks: Albiral, Arthur Holm...
- Page 37 Patents P27178ITEP P27178RUPC MU17180ES00 P27178USPC MU17301ES00 P27284DEEP MU17322ES00 P27284EPPC MU17413ES00 P27284ESEP MU17445ES00 P27284GBEP MU17854ES00 P27284RUPC MU17868DEPC P27284USPC MU17868RUPC P27715ESEP P24821DEEP P28089DEEP P24821ESEP P28089ESEP P24821GBEP Fàtima 25, Sant Hipòlit de Voltregà P28089ITEP P24821USPC 08512 Barcelona – Spain P28089USPC P27178DEEP tel: +34 93 850 23 76 / 23 83 P28090EP00 P27178EPDV01 fax: +34 93 850 25 50 / 23 72...
