ARTHUR HOLM DynamicX2Talk User Manual

Hdcp compliant aluminium retractable motorised monitors with integrated independent microphone lift system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
DynamicX2Talk
HDCP compliant aluminium retractable motorised monitors
with integrated independent microphone lift system
Technology Serving Design
Danish craftmanship
Mediterranean soul

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DynamicX2Talk and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ARTHUR HOLM DynamicX2Talk

Summary of Contents for ARTHUR HOLM DynamicX2Talk

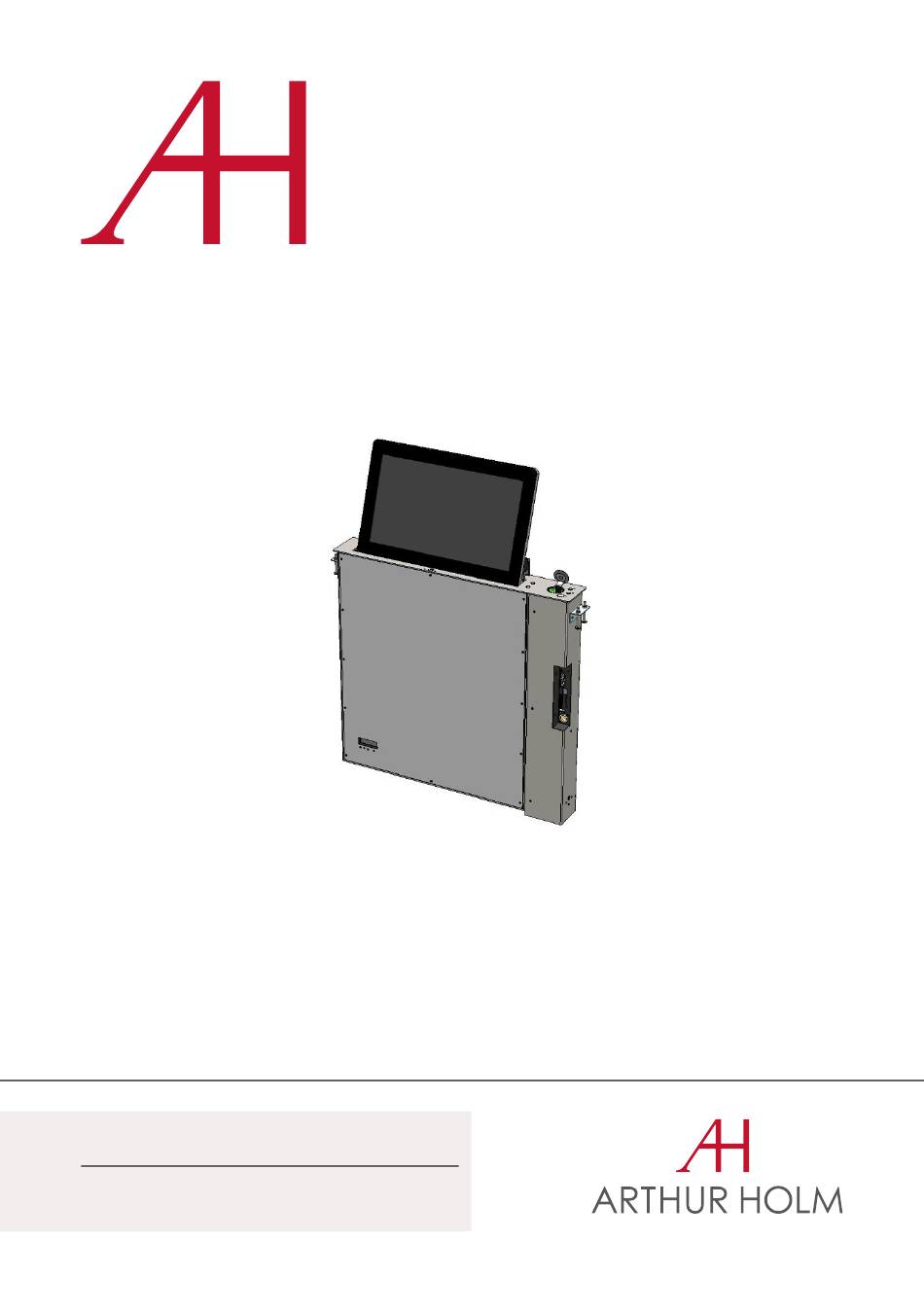

  • Page 1 User Guide DynamicX2Talk HDCP compliant aluminium retractable motorised monitors with integrated independent microphone lift system Technology Serving Design Danish craftmanship Mediterranean soul...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS REGULATIONS AND SECURITY SAFETY INSTRUCTIONS SYSTEM DESCRIPTION DYNAMICTALK HANDLING INPUT CONNECTORS CONTROLS OSD MENU MONITOR AHnet PROTOCOL DYNAMICTALK AHnet PROTOCOL VIDEO SIGNALS AHlink INFORMATION ON DISPOSAL WARRANTY TERMS AND CONDITIONS...
  • Page 4 WELCOME Thank you very much for purchasing an Arthur Holm product. Please, read these installation and operating instructions carefully and keep them in a safe place for future consultations. We remain at your entire disposal if you have any suggestions.
  • Page 5 ABOUT US The Company Arthur Holm has its origins in the Danish furniture designer Jorgen Alex Jensen, who was active during the sixties and the seventies. His design inspiration and his concept of ergonomics have been continued by his family, who is the design force behind Arthur Holm product range. The...

  • Page 6: Regulations And Security

    REGULATIONS AND SECURITY ATTENTION: Do not disassemble or modify the device in any way. This symbol warns of the presence of dangerous un-insulated voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit.
  • Page 7 SAFETY INSTRUCTIONS Wiring connected to hazardous voltage requires installation by qualified personnel or the use of ready-made flexible cables. For your security, your equipment must be connected to an electrical outlet with grounding connection protection. Since the plug is used to disconnect the device, the operating electrical outlet must be in an easily accessible place.

  • Page 8: System Description

    SYSTEM DESCRIPTION General Arthur Holm DynamicX2Talk is a motorised retractable monitor that includes an independent lift for gooseneck microphones. The system provides silent, reliable and harmonic movements using a patented solution with just one engine. The variable speed system raises, lowers and tilts the monitor 20°...
  • Page 9 SYSTEM DESCRIPTION Available Models MODEL DESCRIPTION HDCP compliant vertically retractable aluminium 17,3" Full HD monitor with 20 degrees of automatic inclination with an independent lift for “gooseneck” microphones. Single engine patented mechanism. AH17DX2HDGATalk Solid aluminium monitor in natural anodisation finish featuring 3 mm.
  • Page 10 SYSTEM DESCRIPTION Options AH17DX2HDGATalk AH22DX216GATalk CL (Min.5 units) CL (Min.5 units) Laser engraved logo Laser engraved logo UCS (Min.10 units) UCS (Min.10 units) UnderCover Stainless steel UnderCover Stainless steel UCV (Min.10 units) UCV (Min.10 units) UnderCover for veneer UnderCover for veneer TSV (Min.10 units) TSV (Min.10 units) Touch sensor for UnderCover...
  • Page 11 SYSTEM DESCRIPTION Options AH17DX2HDGATalk AH22DX216GATalk AC Power outlet AC Power outlet Audio mini-jack Audio mini-jack VGACP VGACP VGA passthrough VGA passthrough HDMICP HDMICP HDMI passthrough HDMI passthrough AHISBD2PT AHISBD2PT HDMI retractable HDMI retractable AHDL AHDL DynamicLoop DynamicLoop AHDSS AHDSS DynamicShare DynamicShare AHISBD2 AHISBD2...
  • Page 12 SYSTEM DESCRIPTION Box Contents Before the installation of your retractable monitor, please check the contents of the shipping box, it must contain the following items: • Monitor • Two power cords (one for the monitor and one for DynamicTalk) • Remote control (1 per 5 monitors) •...

  • Page 13: Dynamictalk Handling

    DYNAMICTALK HANDLING Please follow the figure below for a correct product usage of the DynamicTalk microphones. To avoid any product malfunctions, do not attempt to bend the microphone to the incorrect angle or outside the microphone's working area, as indicated on the picture below. Please note that ware to the microphone and pop screen surface can occur.

  • Page 14: Input Connectors

    INPUT CONNECTORS 12V D.C.: Power supply input connector. XLR-4 connector. - 1,2: Ground - 3,4: 12Vdc GPI: Monitor external contact close control. SubD9 female. 1 . GPI1 + 2. GPI1 – 3. GPI2 + 4. GPI2 – 5. GPI3 – 6.
  • Page 15 INPUT CONNECTORS MICROPHONE INPUT CONNECTORS AHnet: RJ45 CAT5 connector for addressable RS422 control. There is a loop through connector to use as signal RS422 output. You can connect up to 30 devices on the same RS422 bus. AHnet ADDRESS: Using the AHnet protocol, this is the number of the device into the RS422 addressable bus.
  • Page 16 INPUT CONNECTORS GPI/GPO external contact close connector: 1. GND. 2. Command microphone UP connecting to GND. Connecting to GND more than 2 seconds, activates the AHlink signal (5 beeps sounds when the AHlink signal is activated) 3. Command microphone DOWN connecting to GND. - Use a pulse signal to RISE and LOWER the microphone 4.

  • Page 17: Controls

    CONTROLS Remote control POWER Switch ON/OFF the monitor MENU Activates the OSD menu on screen Control up on the OSD menu DOWN Control down on the OSD menu LEFT Control left on the OSD menu RIGHT Control right on the OSD menu Selects the function on the OSD menu.
  • Page 18 CONTROLS IR sensor The IR sensor is located on the lower right side of the screen. Monitor movement controls On the upper cover plate, there are two buttons to control the UP and DOWN monitor movements and three buttons to control the DynamicTalk functions and to external control other devices (GPO).
  • Page 19 CONTROLS 3. Microphone UP/DOWN: Controls the UP and DOWM microphone lift movements. Press this button for 5 seconds to activate AHlink signal (5 beeps sounds when AHlink signal is activated) 4. Customized button: The central push button is used to control external devices.

  • Page 20: Osd Menu

    OSD MENU Accessing the menu system • With the OSD off, push the MENU button to activate the main OSD menu. • Press the UP and DOWN buttons to move from one function to another. Please refer to the following sections below to view a complete list of all the functions available for the monitor.
  • Page 21 OSD MENU Noise Reduction: Adjusts the image noise filter ∙ Off ∙ Low ∙ Medium ∙ High ∙ Default Screen: (Only for analogue signals) ∙ Auto Adjust ∙ Horizontal Position ∙ Vertical Position ∙ Size ∙ Phase Backlight: Adjusts the backlight screen's level Colour Range: Adjusts the colour range ∙...
  • Page 22 OSD MENU Option Language: OSD language selection Restore Factory Default: Adjusts the parameters to the initial factory parameters Blending: OSD window transparency ∙ Low ∙ Medium ∙ High ∙ Off OSD Duration: Adjusts the time that the OSD menu window remains on the screen Software Update (USB): Port to use for firmware's upgrade.

  • Page 23: Monitor Ahnet Protocol

    MONITOR AHnet PROTOCOL Communications protocol COMMUNICATION RS422 CONNECTION RJ45 WIRING CAT-6 Speed and configuration BAUD RATE 38400 DATA BITS PARITY NONE STOP BITS Wiring Diagram 1. Data TX + 2. Data TX – 3. Data RX + 4. NC 5. NC 6 .Data RX –...
  • Page 24 MONITOR AHnet PROTOCOL AHnet protocol Uses 5 bytes communication: BYTE 0 START BYTE BYTE 1 ADDRESS BYTE BYTE 2 COMMAND BYTE BYTE 3 VALUE 1 BYTE 4 VALUE 2 Commands COMMAND DESCRIPTION RESPONSE FA XX 01 01 00 GO UP FB XX 01 01 00 FA XX 01 00 00 GO DOWN...
  • Page 25 MONITOR AHnet PROTOCOL BITE CLOSED OPENED SCREEN ON SCREEN OFF DVI-A DVI 1-D DVI 2-D PROTECTION STOP MONITOR OK BITE BUTTON LOCK BUTTON UNLOCK...
  • Page 26 MONITOR AHnet PROTOCOL Picture Commands COMMAND DESCRIPTION RESPONSE FA XX 15 00 00 ASK FOR BACKLIGHT LEVEL FB XX 15 00 ZZ FA XX 16 00 00 ASK FOR CONTRAST LEVEL FB XX 16 00 ZZ FA XX 17 00 00 ASK FOR BRIGHTNESS LEVEL FB XX 17 00 ZZ Number of the monitor address.

  • Page 27: Dynamictalk Ahnet Protocol

    DYNAMICTALK AHnet PROTOCOL Communications protocol Speed and configuration BAUD RATE 38400 COMMUNICATION RS422 DATA BITS CONNECTION RJ45 PARITY NONE WIRING CAT-5 STOP BITS Wiring Diagram 1. Data TX + 2. Data TX – 3. Data RX + 4. NC 5. NC 6 .Data RX RJ-45 7.
  • Page 28 DYNAMICTALK AHnet PROTOCOL Commands COMMAND DESCRIPTION RESPONSE GO UP FA XX 01 01 00 FB XX 01 01 00 GO DOWN FA XX 01 00 00 FB XX 01 00 00 MUTE ON (Only in PA mode) FA XX 02 01 00 FB XX 02 01 00 MUTE OFF (Only in PA mode) FA XX 02 00 00 FB XX 02 00 00 BUTTON LOCK FA XX 04 00 00 FB XX 04 00 00 BUTTON UNLOCK FA XX 04 01 00 FB XX 04 01 00 INQUIRY CONTROL BYTE FA XX 14 00 00 FB XX 14 CB1 CB2 Number of the DynamicTalk address.

  • Page 29: Video Signals

    VIDEO SIGNALS AH17DX2HDGATALK/ AH22DX216GATALK RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070 Progressive 1024x768@75Hz 60.023 75.030 Progressive 1280x720@60Hz 44.697 59.915 Progressive 1360x768@60Hz 47.396...

  • Page 30: Ahlink

    AHlink AHlink is used to control and set-up the unit. By default, the AHLink wireless signal is deactivated. To activate it for the DynamicX2, please press and hold the Open and Close buttons simultaneously on the cover plate for 5 seconds. To activate the AHlink signal for the DynamicTalk, press during 2 seconds the Up and Down microphone button located on cover plate, or contact close GPI2 pin to GND during 2 seconds.
  • Page 31 AHlink If your AH device does not appear screen, AHLink signal might no longer be active. The AHLink name always begins with characters “AH” followed by the four last MAC AHLink address. You must select the AH device. After selecting the AH device, the first page will upload on your screen.
  • Page 32 AHlink DynamicX2 SERIAL Serial number of the unit Firmware version Controls Down monitor movements DISP: Turns the display ON or OFF DVIA, DVI1, DVI2: Input source selection BACKL: Backlight adjustments CONTR: Contrast adjustments BRIGHT: Brightness adjustments SAVE VALUES: Memorises the backlight, contrast and brightness values AHLINK OFF: Turns off the AHlink signal COMMAND: Information of the last AHnet...
  • Page 33 AHlink DynamicTalk FIRST LINE, SHOWS THE MODEL NAME OF THE DEVICE SERIAL Serial number of the unit Firmware version Controls Down screen movements Controls the microphone on PA mode BEEP: Sounds Beep while pressing this button. Use this function to identify the unit connected BT OFF: Switch off the AHlink signal on the device.
  • Page 34 DYNAMICTALK AHlink DynamicTalk CONFIGURATION AHNET ADDRESS: Configuration of the AHnetaddress of the unit password MIC LENGHT: Microphone length configuration in steps. One step is aprox. one cm TERM: Configuration of the RS422 termination. Activate the RS422 termination only in the last unit of the RS422 Bus MODE: Dynamic Talk working mode.

  • Page 35: Information On Disposal

    INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to the designated collection points, where they will be accepted on a free of charge basis.

  • Page 36: Warranty Terms And Conditions

    WARRANTY TERMS AND CONDITIONS Albiral Display Solutions warrants this product against manufacturing defects and workmanship for a period of five (5) years from the date of purchase, subject to the conditions below. Mechanical parts: The engine and the product’s mechanical parts are warranted against manufacturing defects and workmanship for a period of five (5) years from the date of purchase.
  • Page 37 If you have any doubts concerning the terms of this warranty, please contact: business@albiral.com +34 938 502 376 Copyright © Nov. 2020. All rights reserved Albiral Display Solutions SL. Registered trademarks: Albiral, Arthur Holm...
  • Page 40 Patents P27178ITEP P27178RUPC MU17180ES00 P27178USPC MU17301ES00 P27284DEEP MU17322ES00 P27284EPPC MU17413ES00 P27284ESEP MU17445ES00 P27284GBEP MU17854ES00 P27284RUPC MU17868DEPC P27284USPC MU17868RUPC P27715ESEP P24821DEEP P28089DEEP P24821ESEP P28089ESEP P24821GBEP Fàtima 25, Sant Hipòlit de Voltregà P28089ITEP P24821USPC 08512 Barcelona – Spain P28089USPC P27178DEEP tel: +34 93 850 23 76 / 23 83 P28090EP00 P27178EPDV01 fax: +34 93 850 25 50 / 23 72...
