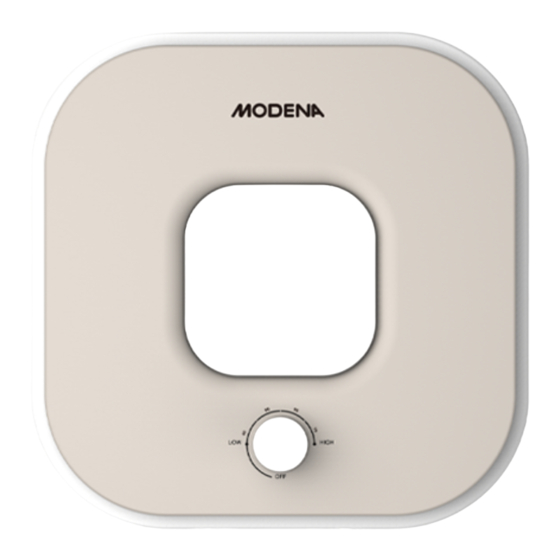

- Page 1 User Manual Book Electric Storage Water Heater Quadra Series ES 10IS, ES 15IS...
-
Page 2: Table Of Contents
Part 6: Troubleshooting Part 7: Disposal of Used Product Part 8: Specification Appendix: Wiring Diagram This manual book explains everything you need to know about your new product. Please contact our Customer Care should you need further assistance through www.modena.com. English 2... -
Page 3: Part 1: Important Safety Information
If the flexible power cord is damaged, a special power cord that is provided by manufacturer must be selected, and replaced by professional maintenance personnel. Contact MODENA Customer Care for help. • For the correct operation of the appliance, it is necessary to pay attention that the maximum inlet water pressure is 0.75 MPa, and the minimum inlet... - Page 4 The pressure relief hole shall not be blocked under any circumstances; otherwise, the water heater may get damaged or even resulting on accidents. If there is a large amount of water leak, please contact MODENA Customer Care for repair. •...
-
Page 5: Part 2: Product Introduction
PART 2: PRODUCT INTRODUCTION ES 10IS ES 15IS 324 mm 368 mm 324 mm 368 mm 315 mm 340 mm 66 mm 66 mm PART 3: INSTALLATION Installation Instruction • This water heater should be installed on a solid wall. If the strength of the wall cannot bear the load equal to twice bigger of the total weight of the water heater filled fully with water, it is then necessary to install a special support. -
Page 6: Plumbing Connection
of the expansion bolts that attached with the water heater. Then, insert the bolts, turn the hook upwards, tighten the nuts to fix firmly, and then hang the water heater on it. Expansion bolt with hook • Install the power socket in the wall. The requirements for the power socket are as follows: 250V/10A, single phase, and three electrodes. - Page 7 • To avoid the leakage when connecting the pipelines, the provided rubber seal must be installed by the end of the threads to ensure the connections are leak proof. • If the user wants to make a multi-ways supply system, refer to the method shown in figure below for connection of the plumbing.
-
Page 8: Part 4: How To Use
PART 4: HOW TO USE • First, open the outlet valve, and then open the inlet valve. The water heater gets filled with the water. When the water flows out of the outlet pipe, it implies that the water heater has been filled fully with water. Then, closes the outlet valve. -
Page 9: Part 5: Maintenance
Tank cleaning frequency depends on the hardness of the water in each location where this water heater is applied. Cleaning must be performed by MODENA or special maintenance services. Contact MODENA Customer Care if necessary. -
Page 10: Part 6: Troubleshooting
Manual Reset Button Manual Reset Button WARNING! Non-professionals are not allowed to disassemble the thermal switch to do reset. Please contact professionals of MODENA to maintain this water heater. Otherwise, MODENA will not take responsibility of any accidents. PART 6: TROUBLESHOOTING Problem... -
Page 11: Part 7: Disposal Of Used Product
PART 7: DISPOSAL OF USED PRODUCT This symbol on the product, or in its packaging, indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. -
Page 12: Appendix: Wiring Diagram
APPENDIX: WIRING DIAGRAM Thermal Thermostat Switch Brown Blue Power Indicator Yellow / Green Lamp English 12... - Page 13 03/21...
