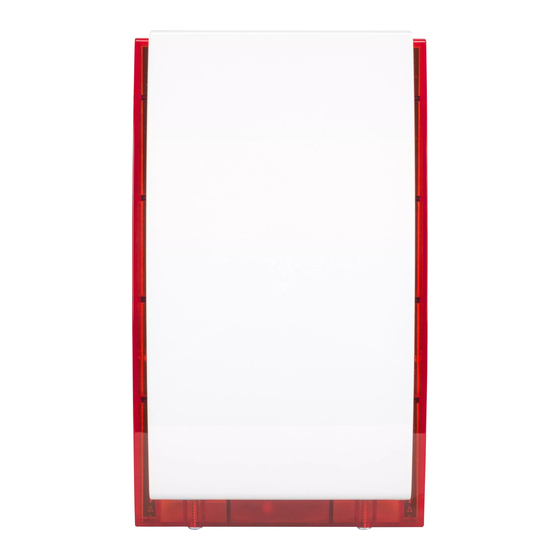

- Page 1 MSP-300 Wireless outdoor siren Firmware version 1.01 msp-300_en 11/21 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 13 August 2005). The device meets the technical regulations of the Eurasian Customs Union. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
- Page 3 CONTENTS Features ........................... 2 Description ........................2 Installation and start-up ....................4 Battery replacement ......................5 Specifications ........................6...
- Page 4 MSP-300 SATEL The MSP-300 siren provides information about alarm situations by means of optical and acoustic signaling. The siren is supported by: PERFECTA alarm control panels (WRL models), MTX-300 controller. 1. Features Acoustic signaling by means of sounder.
- Page 5 When the tamper signaling is blocked, the leftmost LED is flashing every 10 seconds. Power supply The siren is powered from a 3.6 V lithium thionyl chloride battery. It is a high-current battery, characterized by high capacity. The battery is offered by SATEL.
- Page 6 MSP-300 SATEL If you want to replace the low battery with a fresh one, follow the procedure described in the “Battery replacement” section (p. 5). Enclosure base Explanations for Fig. 2: mounting hole. mounting hole for tamper protection. 3. Installation and start-up Never shorten or deform the antenna.
- Page 7 SATEL MSP-300 The battery is to be connected just before installing the siren. 5. When the leftmost LED on the siren starts flashing every second, release the tamper switch. 6. Register the siren in the system (see: PERFECTA control panel installer manual / MTX-300 controller manual).
- Page 8 MSP-300 SATEL 5. Specifications Operating frequency band................ 433.05 ÷ 434.79 MHz Radio communication range (in open area) ............up to 400 m Battery....................ER34615 3.6 V / 13 Ah Battery life expectancy ..................up to 3 years Standby current consumption ..................0.6 mA Maximum current consumption ..................
