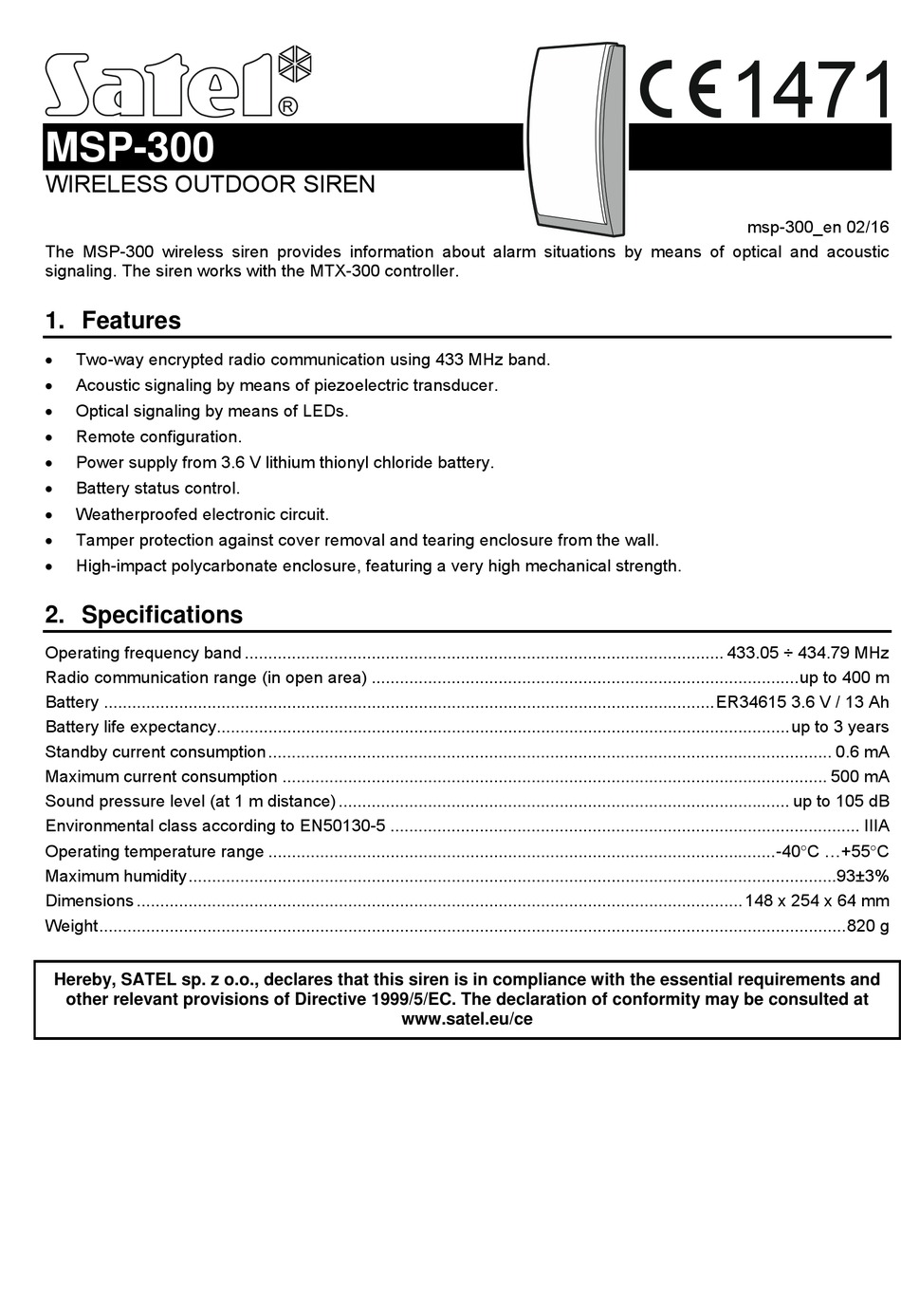

Satel MSP-300 Manual

MSP-300

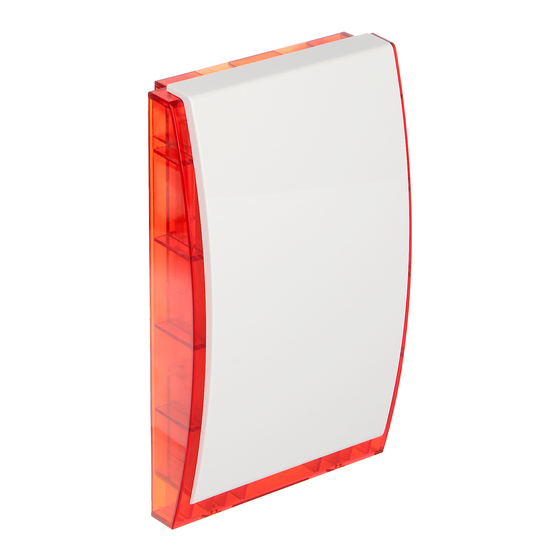

WIRELESS OUTDOOR SIREN
The MSP-300 wireless siren provides information about alarm situations by means of optical and acoustic
signaling. The siren works with the MTX-300 controller.

1. Features


Two-way encrypted radio communication using 433 MHz band.

Acoustic signaling by means of piezoelectric transducer.

Optical signaling by means of LEDs.

Remote configuration.

Power supply from 3.6 V lithium thionyl chloride battery.

Battery status control.

Weatherproofed electronic circuit.

Tamper protection against cover removal and tearing enclosure from the wall.

High-impact polycarbonate enclosure, featuring a very high mechanical strength.

2. Specifications

Operating frequency band ...................................................................................................... 433.05 ÷ 434.79 MHz
Radio communication range (in open area) ...........................................................................................up to 400 m
Battery ..................................................................................................................................ER34615 3.6 V / 13 Ah
Battery life expectancy..........................................................................................................................up to 3 years
Standby current consumption........................................................................................................................ 0.6 mA
Maximum current consumption .................................................................................................................... 500 mA
Sound pressure level (at 1 m distance) ................................................................................................ up to 105 dB
Environmental class according to EN50130-5 .................................................................................................... IIIA
Operating temperature range ............................................................................................................-40C ...+55C
Maximum humidity..........................................................................................................................................93±3%
Dimensions ................................................................................................................................. 148 x 254 x 64 mm
Weight...............................................................................................................................................................820 g
Hereby, SATEL sp. z o.o., declares that this siren is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at
www.satel.eu/ce
1471
msp-300_en 02/16
