Panel Installation

Panel Installation
DOOR PANEL
Typical panel dimensions are based on an 84"
ished height with 1/8" reveals. Placement of the template
(3)
must be adjusted for panels exceeding the typical dimen-
sions.
For tall models, the door panel should be installed first,
followed by the upper, then lower drawer panel.
Place the panel face down on a protected work surface.
Position the template flush with the top and sides of the
panel. Verify the correct side of the template is being used,
then mark and drill holes. Refer to the illustration below.
For tall models, align the notch in the template with the
bottom of the door panel, then mark and drill holes. Refer
to the illustration below.

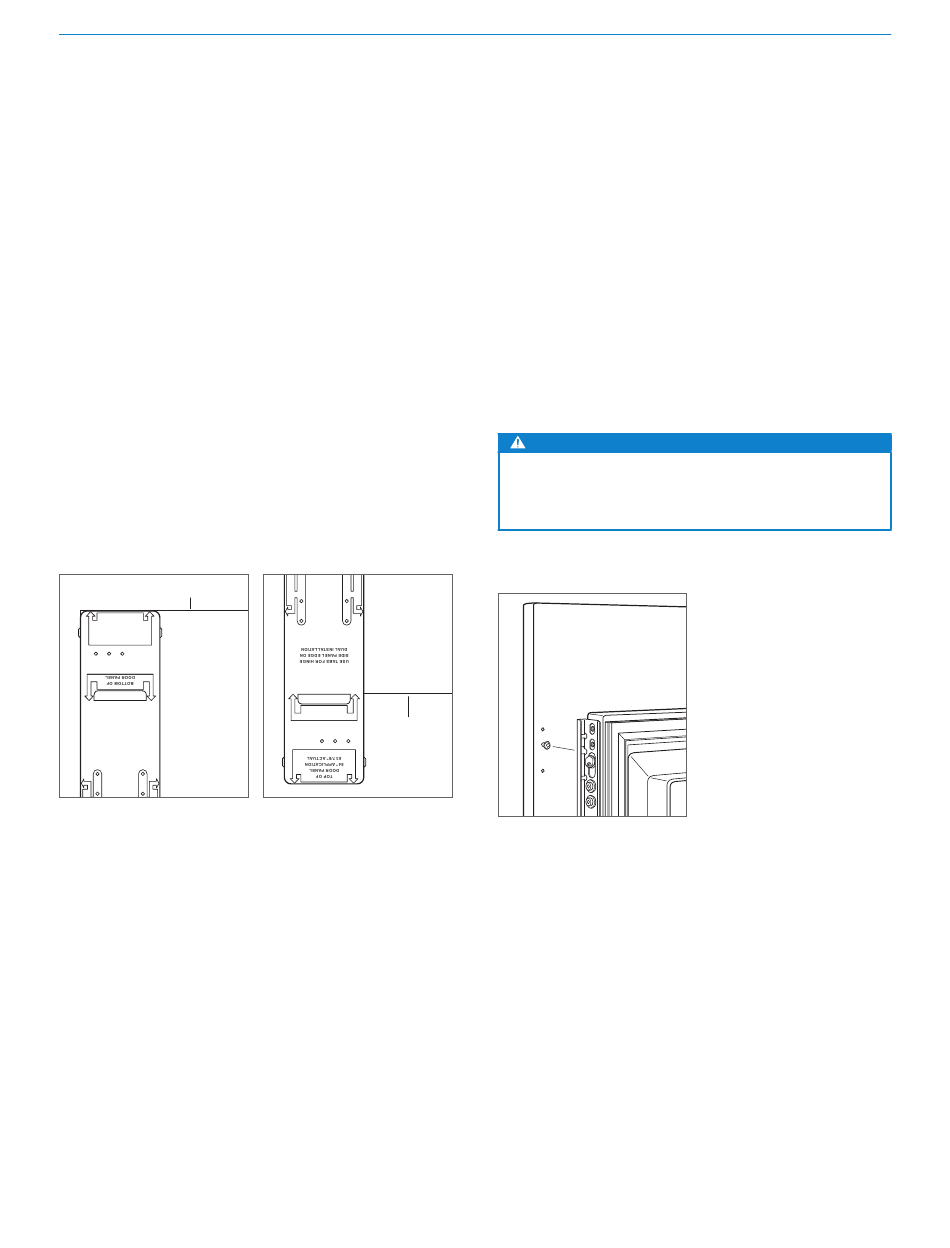

TOP OF DOOR PANEL
TOP OF
DOOR PANEL
84" APPLICATION
83 7/8" ACTUAL
USE TABS FOR HINGE
SIDE PANEL EDGE ON
DUAL INSTALLATION
Door panel template—top
12 | Sub-Zero Customer Care 800.222.7820
fin-
(2134)
BOTTOM OF
DOOR PANEL
BOTTOM OF
DOOR PANEL
Door panel template—bottom
(tall model)
Use a Torx drive to partially insert a #8 x 1/2" screw into the
second hole from the top on each side of the panel. The
screws should be approximately 3/16"
and will support the weight of the panel during installation.
Align the support screws on the back of the panel with the
slotted holes on both door mounting brackets. Refer to
the illustration below. Opening the door slightly may help
with alignment. Once the panel is supported by the screws,
partially insert a #8 x 1/2" screw into the second hole from
the bottom on each side of the panel, but do not tighten.
CAUTION
As reveals between cabinetry and the unit decrease,
severe finger pinching can occur while the door is
closing.
BACK OF
DOOR PANEL
Door panel mounting
proud of the panel
(4)
