Form Factor
Micro-ATX Industrial
Motherboard
I/O
PCIe/ PCI/ SATA/ USB/
COM/ DIO
Video
DVI-I/ DVI-D
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first at:
ftp://ftp.arbor.com.tw/pub/manual
Please do not hesitate to call or e-mail our customer service when you still can not find
out the answer.
http://www.arbor.com.tw
E-mail: info@arbor.com.tw
Copyright
2014 All Rights Reserved.
®
All manuals and user guides at all-guides.com

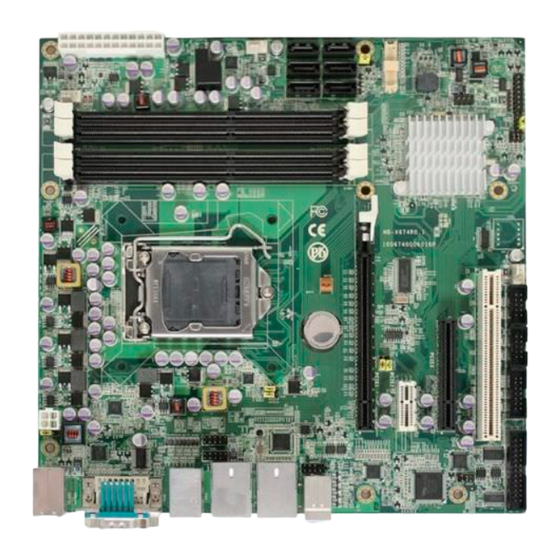

MB-i77Q0
Micro-ATX Industrial Motherboard
CPU
Intel® LGA1155 Socket
Processors
LAN
Intel® 82579LM
PCIe 10/100/1000
Base-T Ethernet,
Intel® 82583V PCIe
10/100/1000 Base-T
Ethernet
FOR HOME OR OFFICE USE
- 1 -
Quick Installation Guide
Chipset
Intel® Q77
Audio
Realtek ALC886 HD
Audio Codec
Tested to Comply
with FCC Standards
4042770001110P
Version 1.1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Arbor Technology MB-i77Q0
Summary of Contents for Arbor Technology MB-i77Q0
- Page 1 All manuals and user guides at all-guides.com MB-i77Q0 Micro-ATX Industrial Motherboard Quick Installation Guide Version 1.1 Form Factor Chipset Micro-ATX Industrial Intel® LGA1155 Socket Intel® Q77 Motherboard Processors Audio PCIe/ PCI/ SATA/ USB/ Intel® 82579LM Realtek ALC886 HD COM/ DIO...
-
Page 2: Specifications
All manuals and user guides at all-guides.com Specifications Form Factor Micro-ATX Industrial Motherboard 3rd generation Intel Core™ i7/i5/i3 processors in LGA1155 socket ® Chipset Intel PCH Q77 ® 4 x 240-pin DDR3 DIMM sockets, supporting 1333/1600MHz SDRAM System Memory up to 32GB Integrated Intel HD Graphics 4000 and HD Graphics 2500 ®... -
Page 3: Packing List
All manuals and user guides at all-guides.com Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x MB-i77Q0 Industrial Motherboard 1 x Driver CD 1 x Quick Installation Guide 1 x I/O Bracket If any of the above items is damaged or missing, contact your vendor immediately. -
Page 4: Recommended Cpu List
3.3GHz Core™ Processor G850 2.9GHz Pentium Dual Core Processor ® G540 2.5GHz Celeron Dual Core Processor ® Find Device Drivers on CD Windows 7 Driver Path Chipset \MB-i77Q0\CHIPSET\Win7 \MB-i77Q0\ME\MEI_allOS_8.0.4.1441_PV_5M \MB-i77Q0\GRAPHICS\Win7\Win32 Graphics \MB-i77Q0\GRAPHICS\Win7\Win64 \MB-i77Q0\ETHERNET\WIN_allos_Ver16.3 Audio \MB-i77Q0\AUDIO\Vista_Win7_R261-32_64 bit USB3.0 \MB-i77Q0\USB3.0 - 4 -... -
Page 5: Board Dimensions
All manuals and user guides at all-guides.com Board Dimensions 229.87 163.83 6.35 209.55 243.84 Unit: mm USB*4 KB/MS COM/DVI-D LAN/USB LAN/USB Line in/out/Mic 9.76 42.4 75.05 96.91 118.38 137.38 - 5 -... -
Page 6: Jumper / Connector Quick Reference
All manuals and user guides at all-guides.com Jumper / Connector Quick Reference Jumpers Connectors Label Description Label Description ATX12V1 ATX +12V connector JBIOS1 BIOS update port FAN1~3 Fan power connectors CMOS setup ATX1 ATX power connector Configures LVDS features SATA1~6 Serial ATA connectors Configures LVDS features JFRT1... -
Page 7: Jumper / Connector Locations
All manuals and user guides at all-guides.com Jumper / Connector Locations SATA2 SATA1 SATA3 SATA4 JP10 SATA5 SATA6 JP11 ATX1 LVDSBL1 JP14 JP10 JP11 JBIOS1 JP14 FAN2 LVDS1 JFRT1 FAN1 JLVDS1 JP12 JDIO1 FAN3 COM3 COM2 COM4 ATX12V1 USB2 JKBMS1 J80P1 USB1 COM1... - Page 8 All manuals and user guides at all-guides.com Jumpers Jumper Settings JP8, JP9, JP10, JP11: Configures LVDS The jumper is “short” (closed) when the jumper cap features (8) (9) (10) (11) is placed on pins. If not, that means the jumper is Connector type: 2.00mm pitch 1x3-pin header.
- Page 9 All manuals and user guides at all-guides.com Connectors ATX1: ATX Power Connector (14) ATX12V1: ATX +12V Connector (12) Connector type: 24-pin ATX power supply connector Connector type: 4-pin ATX 12V connector ATX12V1 supplies +12V for CPU operation. Pin Desc. Pin Desc. Desc.
- Page 10 All manuals and user guides at all-guides.com COM1, 2, 3: Serial Port Connectors (24, LAN1, 2: Ethernet Ports and Double-stacked 25, 27) USB Ports (31, 30) Connector type: 2.54mm pitch 2x5-pin box header Connector type: RJ-45 connector with LED/Stacked USB type A connector. Pin Desc.
- Page 11 All manuals and user guides at all-guides.com DVI2: DVI-I & DVI-D (35) JDIO1: Digital I/O Connector (37) Connector type: Female type DVI-D Supports 16-bit programmable Digital Input/Output connector+female type DVI-I connector Connector type: 2.00mm pitch 2x10-pin header Pin Desc. Pin Desc. DIO0 DIO1 DIO2...
