Form Factor
Micro-ATX Industrial
Motherboard
I/O
PCIe/ PCI/ SATA/ USB/
COM/ DIO
Video
DVI-I/ DVI-D

♦ Technical Support

If you have any technical difficulties, please consult the user's manual first at:
ftp://ftp.arbor.com.tw/pub/manual
Please do not hesitate to call or e-mail our customer service when you still can not find
out the answer.
http://www.arbor.com.tw
E-mail: info@arbor.com.tw
Copyright
2014 All Rights Reserved.
®

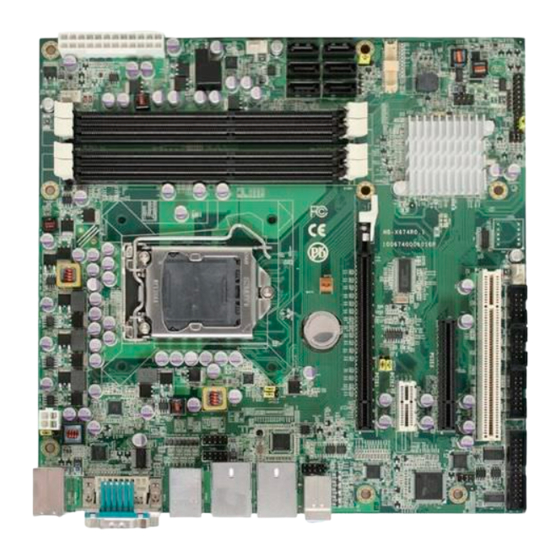

MB-i77Q0
Micro-ATX Industrial Motherboard
CPU
Intel® LGA1155 Socket
Processors
LAN
Intel® 82579LM
PCIe 10/100/1000
Base-T Ethernet,
Intel® 82583V PCIe
10/100/1000 Base-T
Ethernet
FOR HOME OR OFFICE USE
- 1 -
Quick Installation Guide
Chipset
Intel® Q77
Audio
Realtek ALC886 HD
Audio Codec
Tested to Comply
with FCC Standards
4042770001110P
Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MB-i77Q0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Arbor Technology MB-i77Q0

  • Page 1: Technical Support

    MB-i77Q0 Micro-ATX Industrial Motherboard Quick Installation Guide Version 1.1 Form Factor Chipset Micro-ATX Industrial Intel® LGA1155 Socket Intel® Q77 Motherboard Processors Audio PCIe/ PCI/ SATA/ USB/ Intel® 82579LM Realtek ALC886 HD COM/ DIO PCIe 10/100/1000 Audio Codec Base-T Ethernet, Intel® 82583V PCIe...
  • Page 2: Specifications

    Specifications Form Factor Micro-ATX Industrial Motherboard 3rd generation Intel Core™ i7/i5/i3 processors in LGA1155 socket ® Chipset Intel PCH Q77 ® 4 x 240-pin DDR3 DIMM sockets, supporting 1333/1600MHz SDRAM System Memory up to 32GB Integrated Intel HD Graphics 4000 and HD Graphics 2500 ®...
  • Page 3: Packing List

    Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x MB-i77Q0 Industrial Motherboard 1 x Driver CD 1 x Quick Installation Guide 1 x I/O Bracket If any of the above items is damaged or missing, contact your vendor immediately.
  • Page 4: Recommended Cpu List

    3.3GHz Core™ Processor G850 2.9GHz Pentium Dual Core Processor ® G540 2.5GHz Celeron Dual Core Processor ® Find Device Drivers on CD Windows 7 Driver Path Chipset \MB-i77Q0\CHIPSET\Win7 \MB-i77Q0\ME\MEI_allOS_8.0.4.1441_PV_5M \MB-i77Q0\GRAPHICS\Win7\Win32 Graphics \MB-i77Q0\GRAPHICS\Win7\Win64 \MB-i77Q0\ETHERNET\WIN_allos_Ver16.3 Audio \MB-i77Q0\AUDIO\Vista_Win7_R261-32_64 bit USB3.0 \MB-i77Q0\USB3.0 - 4 -...
  • Page 5: Board Dimensions

    Board Dimensions 229.87 163.83 6.35 209.55 243.84 Unit: mm USB*4 KB/MS COM/DVI-D LAN/USB LAN/USB Line in/out/Mic 9.76 42.4 75.05 96.91 118.38 137.38 - 5 -...
  • Page 6: Jumper / Connector Quick Reference

    Jumper / Connector Quick Reference Jumpers Connectors Label Description Label Description ATX12V1 ATX +12V connector JBIOS1 BIOS update port FAN1~3 Fan power connectors CMOS setup ATX1 ATX power connector Configures LVDS features SATA1~6 Serial ATA connectors Configures LVDS features JFRT1 Switches and indicators JP10 Configures LVDS features...
  • Page 7: Jumper / Connector Locations

    Jumper / Connector Locations SATA2 SATA1 SATA3 SATA4 JP10 SATA5 SATA6 JP11 ATX1 LVDSBL1 JP14 JP10 JP11 JBIOS1 JP14 FAN2 LVDS1 JFRT1 FAN1 JLVDS1 JP12 JDIO1 FAN3 COM3 COM2 COM4 ATX12V1 USB2 JKBMS1 J80P1 USB1 COM1 KBMUSB1 AUDIO3 DVI2 USB3 LAN1LAN2 AUDIO1 JRS2 - 7 -...
  • Page 8: Jumper Settings

    Jumpers Jumper Settings JP8, JP9, JP10, JP11: Configures LVDS The jumper is “short” (closed) when the jumper cap features (8) (9) (10) (11) is placed on pins. If not, that means the jumper is Connector type: 2.00mm pitch 1x3-pin header. “open”.
  • Page 9 Connectors ATX1: ATX Power Connector (14) ATX12V1: ATX +12V Connector (12) Connector type: 24-pin ATX power supply connector Connector type: 4-pin ATX 12V connector ATX12V1 supplies +12V for CPU operation. Pin Desc. Pin Desc. Desc. Desc. +3.3V +3.3V +3.3V -12V +12V +12V PS-ON...
  • Page 10 COM1, 2, 3: Serial Port Connectors (24, LAN1, 2: Ethernet Ports and Double-stacked 25, 27) USB Ports (31, 30) Connector type: 2.54mm pitch 2x5-pin box header Connector type: RJ-45 connector with LED/Stacked USB type A connector. Pin Desc. Desc. LAN (RJ-45) DCD1 RXD1 Pin Desc.
  • Page 11 DVI2: DVI-I & DVI-D (35) JDIO1: Digital I/O Connector (37) Connector type: Female type DVI-D Supports 16-bit programmable Digital Input/Output connector+female type DVI-I connector Connector type: 2.00mm pitch 2x10-pin header Pin Desc. Pin Desc. DIO0 DIO1 DIO2 DIO3 DIO4 DIO5 DIO6 DIO7 DIO8...
