User Manual
Form Factor
Micro-ATX Industrial
Motherboard
I/O
PCIe/ PCI/ SATA/ USB/
COM/ LPT
Video
DVI-I
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first at:
ftp://ftp.arbor.com.tw/pub/manual
Please do not hesitate to call or e-mail our customer service when you still can not
find out the answer.
http://www.arbor.com.tw
E-mail: info@arbor.com.tw
Copyright
2012 All Rights Reserved.
®

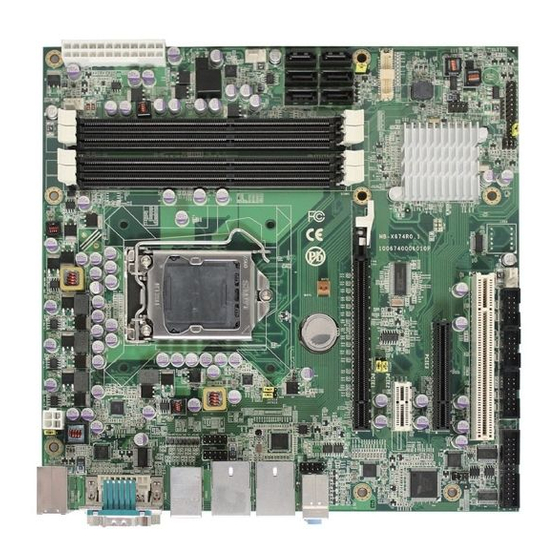

MB-i67Q0
Micro-ATX Industrial Motherboard
CPU
Intel® LGA1155 Socket
Processors
LAN
Intel® 82579LM
PCIe 10/100/1000
Base-T Ethernet,
Intel® 82583V PCIe
10/100/1000 Base-T
Ethernet
FOR HOME OR OFFICE USE
- 1 -
Quick Installation Guide
Chipset
Intel® Q67
Audio
Realtek ALC888 HD
Audio Codec
Tested To Comply
With FCC Standards
4042670000110P
Version 1.1
Advertisement
Table of Contents
Related Manuals for Arbor Technology MB-i67Q0
Summary of Contents for Arbor Technology MB-i67Q0
-
Page 1: Technical Support
MB-i67Q0 Micro-ATX Industrial Motherboard Quick Installation Guide Version 1.1 Form Factor Chipset Micro-ATX Industrial Intel® LGA1155 Socket Intel® Q67 Motherboard Processors Audio PCIe/ PCI/ SATA/ USB/ Intel® 82579LM Realtek ALC888 HD COM/ LPT PCIe 10/100/1000 Audio Codec Base-T Ethernet, Intel® 82583V PCIe... -
Page 2: Specifications
Specifications Form Factor Micro-ATX Industrial Motherboard Support Intel® Core™ i7/i5/i3/Pentium®/Celeron® processors in LGA1155 socket Intel ® Q67 Chipset 4 x 240-pin DDR3 DIMM Sockets, supporting 1066/1333MHz up to System Memory 32GB Integrated Intel® HD Graphics 1 x DVI-I connector supports either Analog RGB or DVI, Display resolution up to 2048 x 1536 for Analog RGB and 1920 x 1200 for TMDS... -
Page 3: Packing List
Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x MB-i67Q0 Industrial Motherboard 1 x Driver CD 1 x Quick Installation Guide 1 x I/O Bracket If any of the above items is damaged or missing, contact your vendor immediately. - Page 4 The Installation Paths of CD Driver V. 4.2A Windows XP Driver Path CHIPSET \CHIPSET\INF 9.2.0.1021 NET Framework \NET Framework\NET Framework 3.5 \ME\MEI_allOS_7.1.13.1088 GRAPHICS \GRAPHICS\INTEL_2K_XP_32\5391 \ETHERNET\INTEL\82583V\WINXP_32_Ver16 \ETHERNET\INTEL\82583V\WINXP_64_Ver16 AUDIO \AUDIO\REALTEK_HD\WDM_R267 Windows 7 Driver Path CHIPSET \CHIPSET\INF 9.2.0.1021 \ME\MEI_allOS_7.1.13.1088 GRAPHICS \GRAPHICS\Win7Vista_15221 \ETHERNET\INTEL\82583V\WIN7_32_Ver16 \ETHERNET\INTEL\82583V\WIN7_64_Ver16 AUDIO \AUDIO\REALTEK_HD\Vista_Win7_R262 - 4 -...
-
Page 5: Board Dimensions
Board Dimensions 229.87 163.83 6.35 209.55 243.84 Unit: mm 9.76 42.4 75.05 96.91 118.38 137.38 - 5 -... - Page 6 Jumpers/ Connectors Quick Reference Jumpers Connectors Label Description Label Description ATX12V1 ATX +12V Connector JBIOS1 BIOS Update Port FAN1~3 Fan Power Connectors JP12 Intel ME Mode Selection ATX1 ATX Power Connector CMOS Setup SATA1~6 Serial ATA Connectors JP16 AT/ATX Selection JFRT1 Switches and Indicators COM4 RS-232/422/485...
-
Page 7: Jumpers & Connectors Location
Jumpers & Connectors Location SATA2 SATA1 SATA3 SATA4 SATA5 SATA6 ATX1 FAN2 JBIOS1 JFRT1 FAN1 JP12 JDIO1 JP16 PCI1 FAN3 PCIE3 COM3 COM2 COM4 ATX12V1 JKBMS1 PCIE1 PCIE2 LPT1 KBMUSB1 AUDIO3 USB2 DVI1 USB3 LAN1 LAN2 AUDIO1 JRS2 USB1 Line in/out/Mic KB/MS USB*4 COM1/DVI-I... -
Page 8: Jumper Settings
Jumpers JKBMS1: KB/MS Power Source Selection (7) Jumper Settings Connector type: 2.54mm pitch 1x3-pin header. The jumper is “short” (closed) when the jumper cap is placed on pins. If not, that means the jumper is Voltage “open”. 5V (Default) Pin 1-2 short Pin 2-3 short Pin short Pin open... - Page 9 COM2, 3: Serial Port Connectors (21, 20) ATX1: ATX Power Connector (10) Connector type: 24-pin ATX Power Supply Connector type: 2.00mm pitch 2x5-pin box header. connector. Pin Desc. Desc. Pin Desc. Pin Desc. DCD1 RXD1 +3.3V +3.3V TXD1 DTR1 +3.3V -12V DSR1 RTS1...
- Page 10 LAN1, 2: RJ-45+USB Stacked Connectors DVI1: COM1 & DVI-I (31) Connector type: female type 9-pin D-SUB (27, 26) connector+female type DVI-I connector. Connector type: RJ-45 connector with LED/Stacked USB type A connector. LAN (RJ-45) COM1 Pin Desc. Pin Desc. A1 TCT VCC A2 M0+ A3 M0- A4 M1+...
- Page 11 JDIO1: Digital I/O Connector (33) Supports 16-bit programmable Digital Input/Output Connector type: 2.00mm pitch 2x10-pin headers Pin Desc. Pin Desc. DIO0 DIO1 DIO2 DIO3 DIO4 DIO5 DIO6 DIO7 DIO8 10 DIO9 11 DIO10 12 DIO11 13 DIO12 14 DIO13 15 DIO14 16 DIO15 17 VCC 18 GND...
- Page 12 This page is intentionally left blank. - 12 -...
