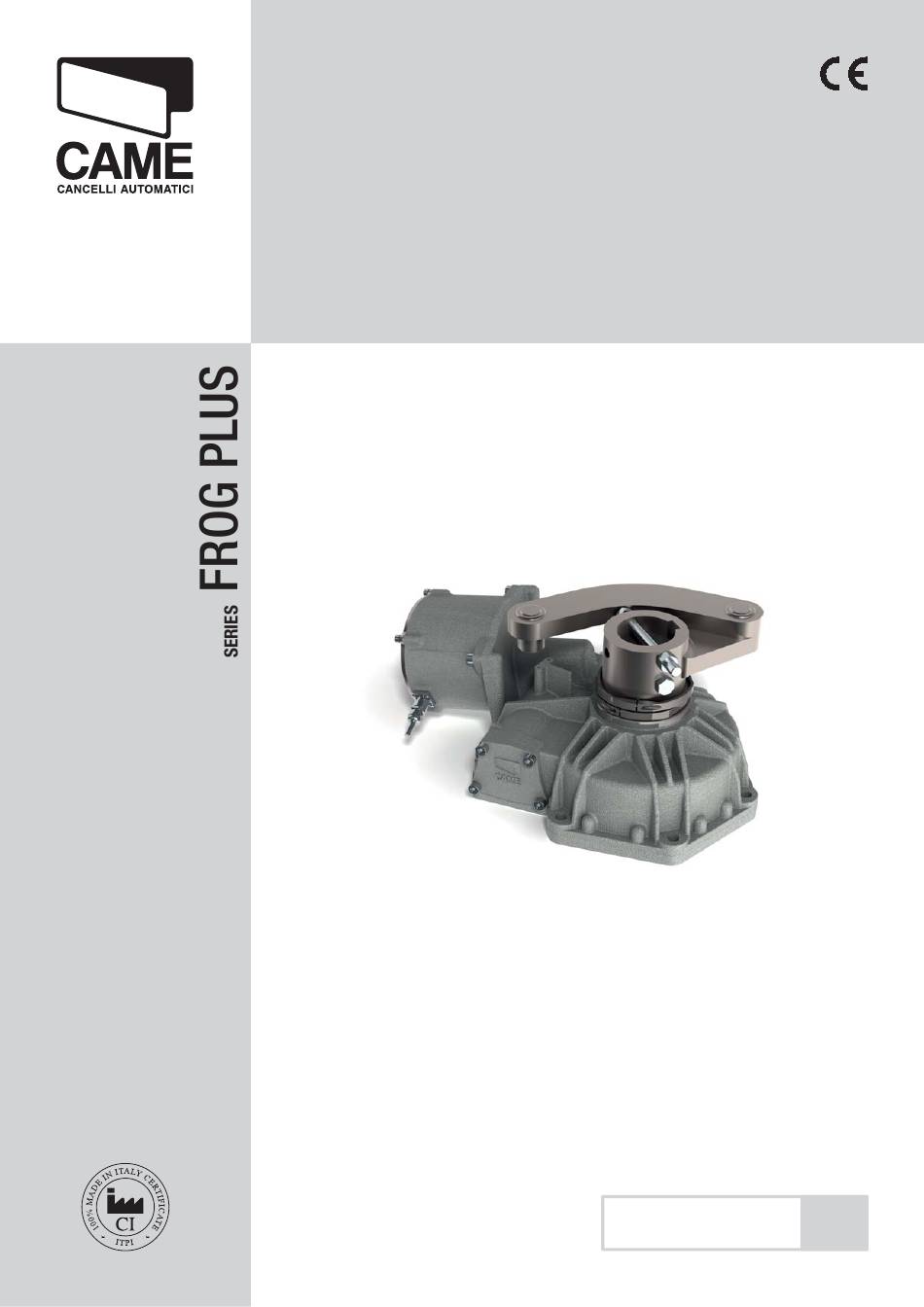

- Page 1 BELOW SURFACE SWING-GATE OPERATOR INSTALLATION MANUAL FROG-PM English...
- Page 2 Index Legend of symbols P. 4 Intended use and limits to use P. 4 Intended use P. 4 Limits to use P. 4 Description P. 4 Technical data P. 4 Dimensions P. 5 Description of parts P. 5 Installation P. 5 Preliminary checks P.
-
Page 3: Read Carefully
Warning Sings (e.g. gate plate). (i.e. that for which it was expressly built for). Any other use is Special instructions and to be considered dangerous. Came Cancelli Automatici S.p.A. advice for users is not liable for any damage resulting from improper, wrongful •... - Page 4 Intended use and limits to use Intended use The FROG-PM operator is engineered and built by Came Cancelli Automatici S.p.A. in compliance with current safety regulations, to automate residential and aparment building siwng-gates. Any installation and use other than that specified in this manual is forbidden.
-
Page 5: Preliminary Checks
Dimensions (mm) Description of parts 1) Gearmotor 2) Lever 3) Cams 4) Gate bracket 5) Anchoring lever 6) Sink box 7) Box cover 8) Optional limit switch assembly 9) Limit switch adjusting screw Installation Installation must be carried by skilled, qualified technicians in accordance with current regualtions. Preliminary checks Before beginning to install, the following is necessary: Set up a suitable omnipolar cut-off device, with distances greater than 3 mm between contacts, wit sectioned power source;... -
Page 6: Standard Installation
Tools and equipment Make sure you have all the tools and materials needed to carry out the installation in total safety and in accordance with current regulations. The figure shows some examples of the tools needed by installers. Types and thicknesses of cables Connection Cable type Cable length 1 <... - Page 7 Preparing the foundation box The following illustrations are also shown in the manual of the Frog-PC packaging, some exampels are shown, becasue the space for fastening the operator and accessories depends on the dimensions.It is up to the installer to choose the most suited solution.
- Page 8 Installing the operator N. B.: orientation of illustration:right hand inside view. Lubricate the foundation box pin, the anchoring lever and gate bracket pin. 10 - Mount the gate leaf by only inserting the upper hinge. Make sure the gate lead opens and closes fl awlessly. 11 - With proper screws or welding fasten the gate-leaf to the transmission arm.
-
Page 9: Left Side
Insert the adjusting screw into the motor-arm.How you insert the screw depends on how the operator is positioned (either on the right or the left of the gate).See drawing. LEFT SIDE RIGHT SIDE INSIDE VIEW Turn the gate leaf to ease mounting of the gearmotor.Insert the gearmotor into the box, fasten it via the threaded pins and lock it using the supplied screws. -
Page 10: Connecting To The Control Panel
Connecting to the control panel For electrical connections, check with the CAME control panel manual. Check the control panel manual. 1) Control panel 2) Left gear motor 3) Right gearmotor 4) Junction box 5) Junction pit Electrical connections of the gearmotors to the control panel... -
Page 11: Adjusting The Limit Switches
Adjusting the limit switches Adjusting the mechanical endstops Adjust the opening mechanical endstops.Max gate leaf aperture is 110°. N. B.: orientatation of illustration right hand inside view Turn the adjusting screw (1) of the motor arm (3).Open the gate leaf until it touches the opening strike plate, loosesn the adjusting screw (1) unti contact is made with the box. - Page 12 Completing assembly of the parts Mounting the cover After making the adjustments and electrical connections, rest the cover atop the foundation box and fasten it using the screws. N. B.: orientatation of illustration right hand inside view M8x25 UNI 5933 screw Manually releasing the gate leaf The manual release lets the gate leaves open and then re-attach to close in case of a power outage.
- Page 13 Insert the key into the manual release lock and turn it counter clockwise.Open the gate leaf until it touches the opening strike. Push the gate leaf to the closed position to re-attach it to the gearmotor.
-
Page 14: Safety Instructions
Safety instructions Important general safety instructions This product is only intended to be used for the purpose it was designed. Any other use is therefore improper and dangerous. The manufacturer is not liable for any damage caused by improper, wrongful or unreasonable use. Work well away from the gate hinges or mechanical moving parts.Stay out of the working range of the moving operator. -
Page 15: Troubleshooting
Check that there is no vegetation within range of the photocells, and that no objects interfere with the operation of the automated gate. Troubleshooting PROBLEMS POSSIBLE CAUSES CHECKS AND FIXES The gate neither No power supply Check power supply opens nor closes The gearmotor is released •... -
Page 16: Product Disposal
UNI EN ISO 14001 standard to ensure environmental protection. Please help us to safeguard the environment. At CAME we believe this to be one of the fundamentals in its market operations and development strategies. Just follow these short disposal instructions: DISPOSING OF THE PACKAGING The components of the packaging (i.e. - Page 17 Declaration...
