G O B O S & G O B O R E P L A C E M E N T
The gobo's featured in this unit are interchangable. Remember when changing these gobo's that they
are thin and easy to bend. Please do this process gently so you do not bend or damage gobo.
Caution! Never open the unit when in use. Always disconnect the main power before attempting to
change the gobos.
Locating the Gobo wheel: After disconnecting the main power, position the head with the lens facing
forward. Look through lens of the unit. When looking through the front lens, position the head so that the
gears are on the right side. When the gears are on the right side, the shell that needs to be unscrewed
is now facing up.
1. To change a gobo, unscrew the 4 screws that secure the shell to the unit. Gently lift and remove the
shell.
2. When you remove the shell you will be able to access the gobo wheel. Turn the wheel with your
hand until you come across the gobo you would like to change.
3. To change the gobo you have to remove the individual gobo frames. Gently push the gobo and gobo
frame (Not the wheel) away from the gobo wheel. You do not have to the push very hard. While you
are pushing the gobo frame away from the wheel, gently pull the the gobo frame up and out.
4. Once the gobo frame has been removed, you will notice that a retainer ring secures the gobo in
place. After the retainer ring is removed, your are able to remove the gobo.
5. Change the gobo and replace the retainer ring.
6. Insert the gobo frame back into the unit, positioning it in same way as the other gobo frames.
7. Reassemble the unit.

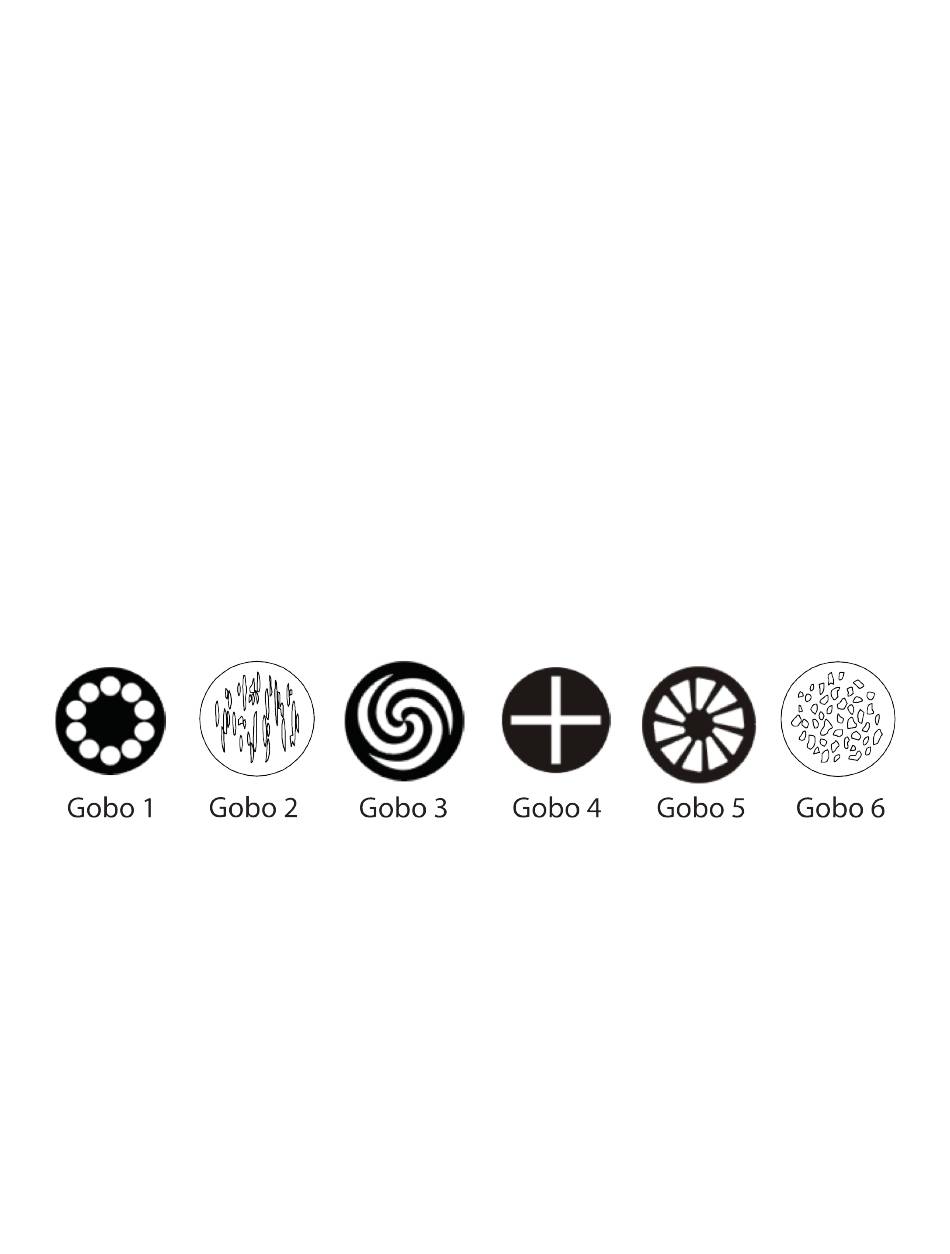

Inner Diameter: 19mm
Outer Diameter: 23mm
Thickness: 0.5mm
