ADJ FOCUS SPOT 4Z User Manual

Hide thumbs Also See for FOCUS SPOT 4Z:
Table of Contents

Advertisement

Quick Links

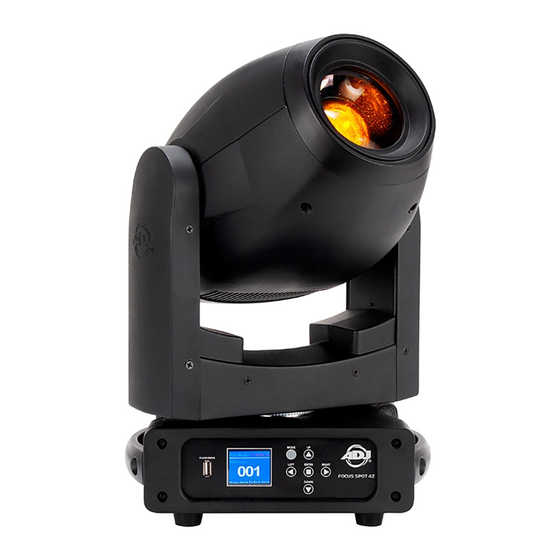

FOCUS SPOT 4Z
FOZUS SPOT 4Z PEARL
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOCUS SPOT 4Z and is the answer not in the manual?

Questions and answers

Related Manuals for ADJ FOCUS SPOT 4Z

Summary of Contents for ADJ FOCUS SPOT 4Z

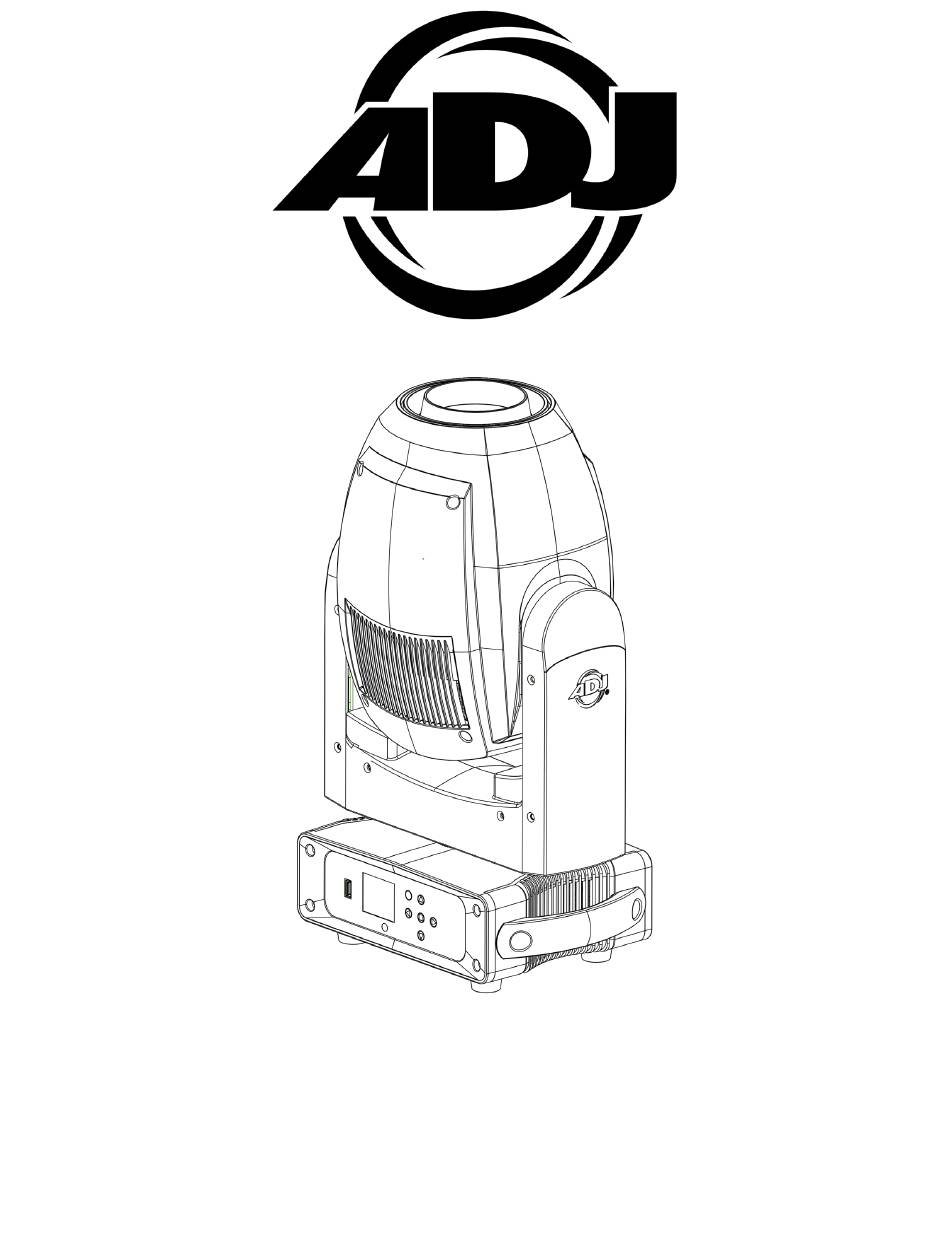

  • Page 1 FOCUS SPOT 4Z FOZUS SPOT 4Z PEARL User Guide...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Overview Installation Instructions Remote Device Management (RDM) Gobos & Gobo Replacement DMX Setup System Menu Dimming Curve DMX Channel Functions and Values Specifications Dimensional Drawings FCC Statement...

  • Page 4: General Information

    Please do NOT discard the outer shipping carton in the trash. Please recycle whenever possible. CUSTOMER SUPPORT: Contact ADJ Service for any product related service and support needs. Also forums.adj.com visit with questions, comments or suggestions.

  • Page 5: Limited Warranty (Usa Only)

    ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.

  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ is not responsible for injury and/ or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 LEDs. This issue is not specific only to ADJ lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.

  • Page 8: Maintenance Guidelines

    M A I N T E N A N C E G U I D E L I N E S DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE! CLEANING Frequent cleaning is recommended to insure proper function, optimized light output, and an extended life.

  • Page 9: Overview

    O V E R V I E W Positional Lenses Power Cable Out Power Cable In/Out Service Port Fuse: T3A/250V 3-Pin DMX Out LCD Display 3-Pin DMX In...

  • Page 10: Installation Instructions

    I N S TA L L AT I O N I N S T R U C T I O N S DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO! Fixture MUST be installed following all local, national, and country commercial electrical and construction codes and regulations.
  • Page 11 I N S TA L L AT I O N I N S T R U C T I O N S Screw one clamp via a M12 screw and nut into the Omega Bracket. Insert the quick-lock fasteners of the Omega Bracket into the respective holes of the fixture base.
  • Page 12 FIXTURE WILL NOT DROP IF THE CLAMP FAILS. The Focus Spot 4Z is fully operational in three different mounting positions, hanging upside-down, mounted sideways on trussing, or set on a flat level surface. Always use and install a safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails.

  • Page 13: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 14: Gobos & Gobo Replacement

    G O B O S & G O B O R E P L A C E M E N T The gobo’s featured in this unit are interchangable. Remember when changing these gobo’s that they are thin and easy to bend. Please do this process gently so you do not bend or damage gobo. Caution! Never open the unit when in use.

  • Page 15: Dmx Setup

    Pearl can be controlled via DMX-512 protocol. The Focus Spot 4Z/Focus Spot 4Z Pearl has 3 DMX channel modes. The DMX address is set on the front panel of the Focus Spot 4Z/Focus Spot 4Z Pearl. Your unit and your DMX controller require a standard 3-pin XLR connector for data input and data output (Figure 1).
  • Page 16 In the case of the Focus Spot 4Z/Focus Spot 4Z Pearl, when in 16 channel mode you should set the starting DMX address of the first unit to 1, the second unit to 17 (16 + 1), the third unit to 33 (17 + 16), and so on.

  • Page 17: System Menu

    SYSTEM MENU The fixture includes an easy to navigate system menu control panel display where all necessary settings and adjustments are made. (See image below) During normal operation, pressing the MODE button once will access the fixture’s main menu. Once in the main menu, you can navigate through the different functions and access the sub-menus with the UP and DOWN buttons.
  • Page 18 Last Time Total Running Time (Hours) Time.Info Timer PIN Last Time Clear: (Password=060) Clear Last ON/OFF Clear Total ON/OFF Temp.Info T:XXX Fan1:XXXX RPM Fan Speed Fan2:XXXX RPM Error. Info NONE/Pan, Tilt... Model. Info FOCUS SPOT 4Z 1U:VX.X.X Software.V 2U:VX.X.X 3U:VX.X.X...
  • Page 19 S Y S T E M M E N U MAIN MENU SUB MENU OPTIONS / VALUES (Default Settings in BOLD) DESCRIPTION Reset.Motor Pan & Tilt Color & Gobo Pan, Pan Fine, Tilt, Tilt Fine, ColorWheel, Gobo, RotGobo, Strobe, Dimmer, Dim Fine, Prism1, TestChannel Prism1Rot, Prism1 Fine, Prism2, Prism2Rot, Prism2Fine, Focus, Zoom, ZoomFine, DimMode,...
  • Page 20 S Y S T E M M E N U NO DMX MODE - Use this function to set 1 of 3 available modes with DMX signal loss. 1. Press the MODE button to access the main menu. Use the UP/DOWN buttons to scroll to “Function”, then press ENTER.
  • Page 21 S Y S T E M M E N U HIBERNATION - Use this function to turn off LEDs and step-motors without a DMX signal after 15 minutes (factory default). The fixture will reset with a reactivated DMX signal. 1. Press the MODE button to access the main menu. Use the UP/DOWN buttons to scroll to “Function”, then press ENTER.
  • Page 22 S Y S T E M M E N U BACKLIGHT. - Use this function to adjust the display LCD backlight time from 2-60 minutes. 1. Press the MODE button to access the main menu. Use the UP/DOWN buttons to scroll to “Function”, then press ENTER.
  • Page 23 4. Press the ENTER button to confirm your selection, or press the MODE button to exit. USB UPGRADE FILE - This submenu is used for any future software updates. Check www.adj.com and this units webpage for any software updates. Download the software update to a flash stick and plug the flash stick into the Service Port slot located on the front of the unit.
  • Page 24 S Y S T E M M E N U ERROR INFO - This submenu will display any function errors that may occur. Please contact ADJ customer support for additional information if any error warnings appear and there is any uncertainty about what action needs to be taken.
  • Page 25 S Y S T E M M E N U PRIMARY-SECONDARY This function will allows you to link units to run in a Primary-Secondary set-up. In a Primary-Secondary set up, one unit will act as the controlling unit and the others will react to the controlling units built-in programs.

  • Page 26: Dimming Curve

    D I M M I N G C U R V E The fixture includes 6 different dimming curve modes which can selected from either the system menu or via DMX. The graph below provides details on each dimming curve mode.

  • Page 27: Dmx Channel Functions And Values

    DMX CHANNELS / VALUES / FUNCTIONS Features subject to change without notice *Rotation direction (Clockwise/Counter-Clockwise) and control of effects depends on head orientation and Pan/Tilt settings* MODE / CHANNEL VALUE FUNCTION Basic Standard Extended PAN Movement 8-bit 000-255 Pan Movement by 630/540 PAN Fine 16-bit 000-255 Fine control Pan movement...
  • Page 28 DMX CHANNELS / VALUES / FUNCTIONS Features subject to change without notice *Rotation direction (Clockwise/Counter-Clockwise) and control of effects depends on head orientation and Pan/Tilt settings* MODE / CHANNEL VALUE FUNCTION Basic Standard Extended Prism 1 000-031 Open 032-255 6 Facet Circular Prism Prism 1 Indexing &...

  • Page 29: Specifications

    S P E C I F I C AT I O N S Light Source: 2x 110W Warm White CREE COB (Chip On Board) LEDs 2,700K Color Temperature (1,200K Tungsten Mode) 50-degree Beam Angle CRI: 81 12249 LUX @ 1M; 490 LUX @ 5M 50,000 Hour Average LED Life Features: Modular design to connect multiple fixtures together in a vertical or horizontal tray from a built-in rail...

  • Page 30: Dimensional Drawings

    D I M E N S I O N D R A W I N G S Dimensions not to scale...

  • Page 31: Fcc Statement

    FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &...
