I N S TA L L AT I O N I N S T R U C T I O N S

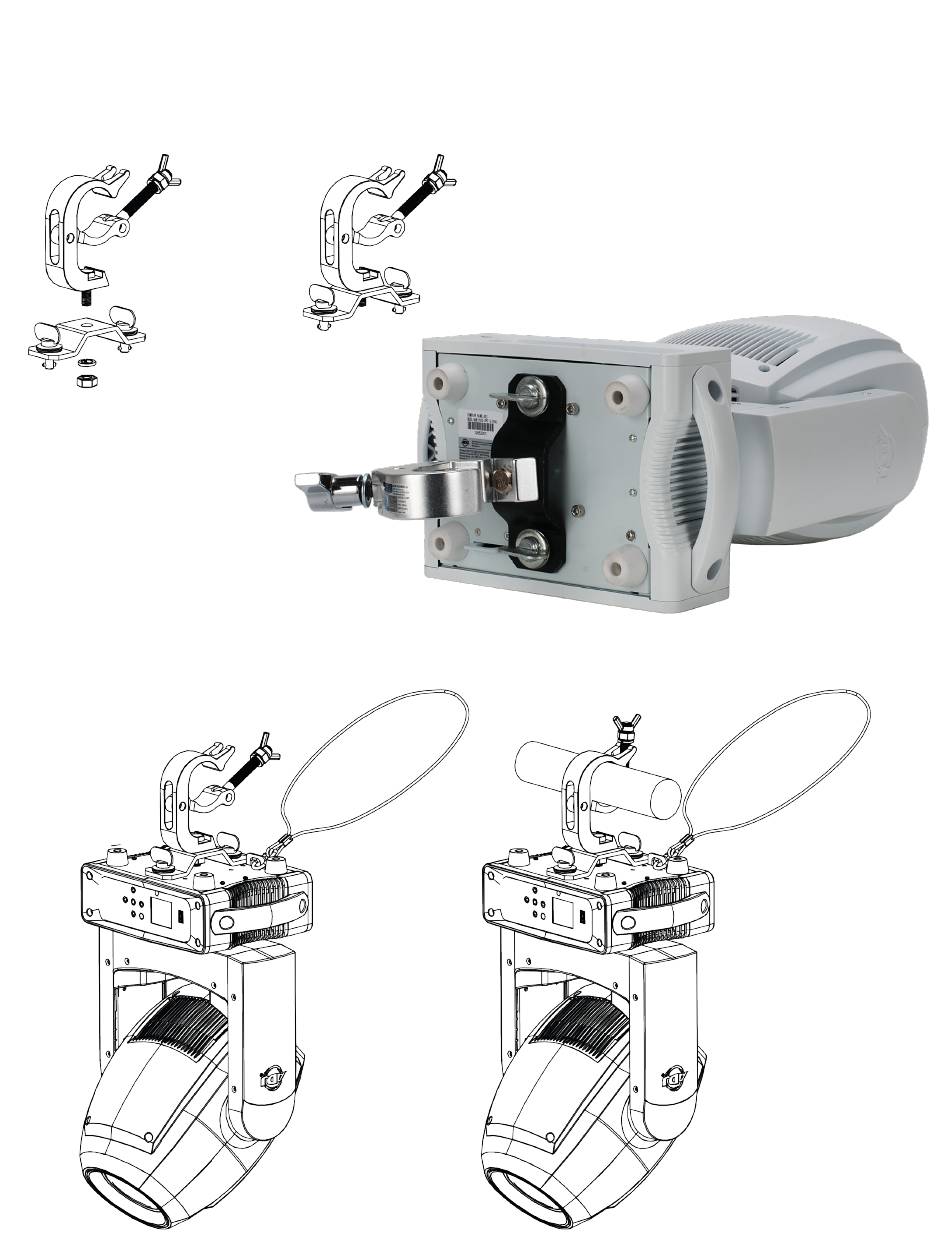

Screw one clamp via a M12 screw and nut into the Omega Bracket. Insert the quick-lock fasteners of the
Omega Bracket into the respective holes of the fixture base. NOTE: The clamp must be attached to the
Omega Bracket before attaching the bracket to the fixture.
Tighten the quick-lock fasteners fully clockwise. Pull the safety-cable through the opening located on the
bottom of the unit and over the trussing system or a safe fixation spot. Insert the end in the carabiner, and
tighten the safety screw.
