PAR Z MOVE
User Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR Z MOVE and is the answer not in the manual?

Questions and answers

Related Manuals for ADJ PAR Z MOVE

Summary of Contents for ADJ PAR Z MOVE

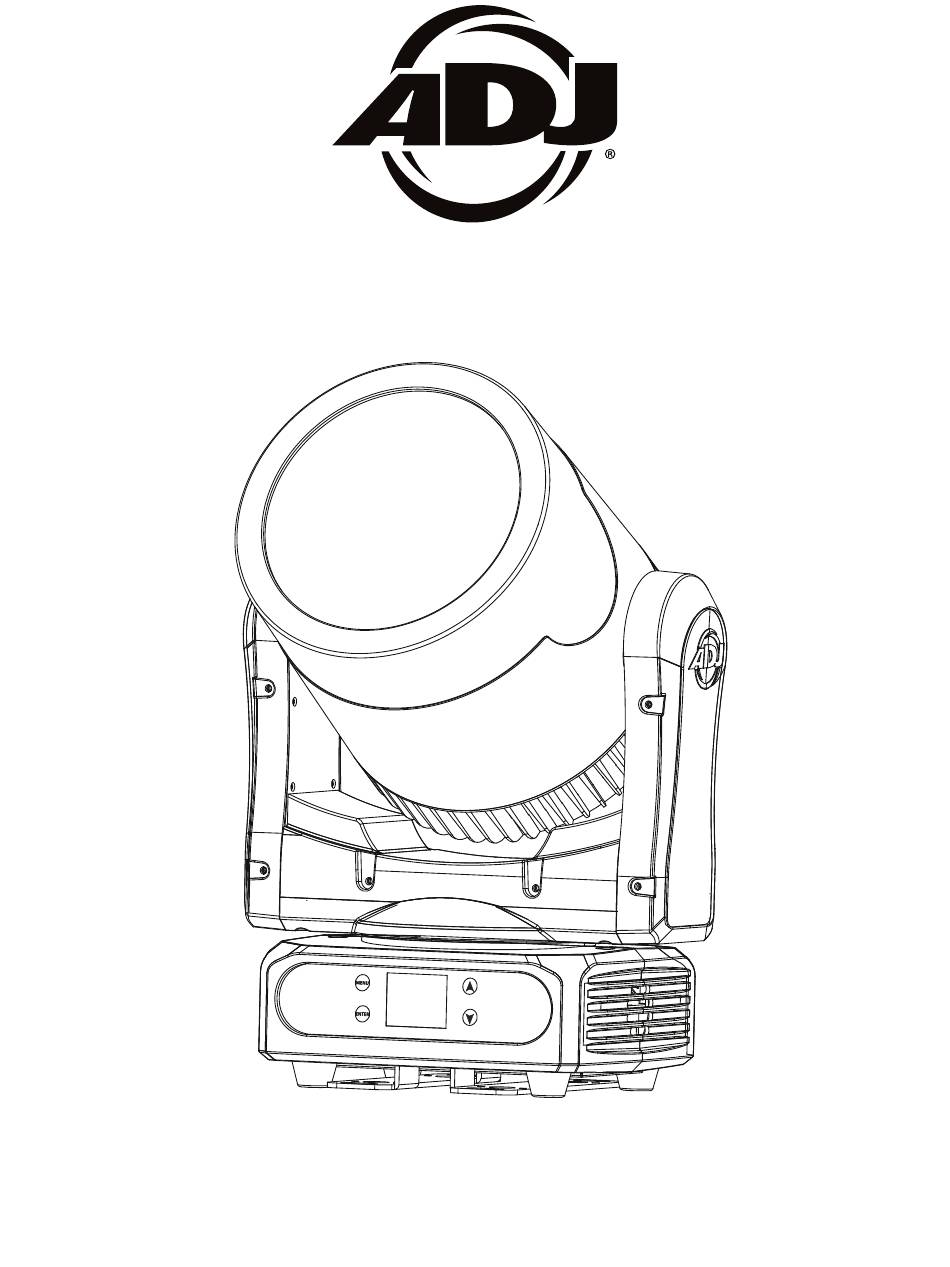

  • Page 1 PAR Z MOVE User Instructions...
  • Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    DMX Addressing DMX Channel Modes & Values System Menu Operating Instructions Dimmer Curve Chart Dimensional Drawings Power Linking I Trouble Shooting I Cleaning Limited Warranty Technical Specifications ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 2...

  • Page 4: Introduction

    Master/Slave configuration. The fixture comes equipped with motor- ized focus and zoom, 6 different dimming options The Par Z Move has 3 DMX channel modes; 7, 9, & 11. This product is intended to be used by professionally trained personnel only and is not suitable for private use.
  • Page 5 Par Z Move Warranty Registration The Par Z Move carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.

  • Page 6: Safety Precautions

    B. Objects have fallen, or liquid has been spilled into the fixture. C. The fixture does not appear to operate normally or exhibits a marked change in performance. D. The fixture has fallen and/or subjected to extreme handling. ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 5...

  • Page 7: Installation

    LEDs. This issue is not specific only to ADJ lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.
  • Page 8 These installaiton should be checked by a skilled person once a year. The Par Z Move is fully operational in three different mounting positions, hanging upside-down from a ceiling or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc.).
  • Page 9 Screw one clamp each via a M12 screw and nut into the Omega brackets. Insert the quick-lock fasteners of the Omega brackets into the respective holes on the bottom of the Par Z Move. Tighten the quick- lock fasteners fully clockwise. Pull a safety cable through the safety cable attachment points located on the base plate and over the trussing system or a safe fixation spot.

  • Page 10: Overview

    LED Display Service Port Mode Button 5-Pin XLR In Enter Button 3-Pin XLR In Up Button 5-Pin XLR Out Down Button 3-Pin XLR Out powerCON In powerCON Out ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 9...
  • Page 11 DMX-512 protocol. The Par Z Move has 3 DMX channel modes. The DMX address is set on the front panel of the Par Z Move. Your unit and your DMX controller require either a standard 3-pin or 5-pin XLR connector for data input and data output. We recommend Accu-Cable DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores).

  • Page 12: Dmx Set Up

    2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
  • Page 13 In the case of the Par Z Move, when in 7 channel mode you should set the starting DMX address of the first unit to 1, the second unit to 8 (7 + 1), the third unit to 15 (8 + 7), and so on. (See the chart be- low for more details.)
  • Page 14 000-069 NO FUNCTION 070-079 BLACKOUT WITH PAN/TILT MOVEMENT ENABLED 080-089 BLACKOUT WITH PAN/TILT MOVEMENT DISABLED 090-099 RESET ALL 100-109 RESET ZOOM 110-119 RESET PAN/TILT 120-255 NO FUNCTION ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 13...

  • Page 15: Dmx Addressing

    000~255 Tilt 000~255 Manual Control Tilt Fine 000~255 Manual Control Settings Shutter 000~255 Dimmer 000~255 Zoom 000~255 Special Functions 000~255 NOTE: Shaded options represent the default settings. ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 14...
  • Page 16 *Current Maximum Temperature - Maximum fixture temp. that has been recorded, before reset and after reset. **Maximum Temperature - Overall maximum fixture temp. that has been recorded. (Not Resettable) ***Normal Operating Temperature ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 15...
  • Page 17 “Manual Control” function. See “Manual Control” on page 20 for more information. 4. Once you have found your desired setting press ENTER to confirm. Press the MENU button to exit. ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 16...
  • Page 18 3. Use the UP or DOWN buttons to adjust pan/tilt movement speed. 4. Press the ENTER button to confirm your setting or press the MENU button to exit. ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 17...
  • Page 19 2. Use the UP or DOWN buttons to adjust the dimming frequency between 900hz, 1000hz, 1100hz, 1200hz, 1300hz, 1400hz, 1500hz, 6000hz, or 25000hz. 3. Press the ENTER button to confirm your setting or press the MENU button to exit. ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 18...
  • Page 20 To unlock the display press the MENU button for at least 5 seconds. 4. Once you have found your desired settings press the ENTER button to confirm. ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 19...
  • Page 21 Download the software update to a flash stick and plug the flash stick into the Flash Drive slot located on the front of the unit. Contact ADJ customer service for help when updating software.

  • Page 22: Operating Instructions

    3. Press the UP or DOWN buttons until “LED On Time” is highlighted and press ENTER. 4. The total power ON running time of the fixture will now be displayed. Press the MENU button to exit. ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 21...
  • Page 23 4. The hightest LED temperature will now be displayed. Press the UP or DOWN buttons to switch between farenheit and celsius. Press the MENU button to exit. ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 22...
  • Page 24 3. Use the UP or DOWN buttons to find the DMX channel you would like check and press ENTER. The current DMX value of that channel will now be displayed. Press the MENU button to exit. ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 23...
  • Page 25 1. Access the main menu and press the UP or DOWN buttons so that “Information” is highlighted then press ENTER. 2. Press the UP or DOWN buttons until “Software Version” is highlighted and press ENTER. 3. The current software version will now be displayed. ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 24...

  • Page 26: Dimmer Curve Chart

    Down Time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 1100 1660 Stage 2 ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 25...

  • Page 27: Dimensional Drawings

    Par Z Move Dimensional Drawing 8.22” / 209mm 12.05” / 306mm 8.6” / 218mm ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 26...
  • Page 28 3. Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog resi- due, dust, dew). ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 27...

  • Page 29: Limited Warranty

    ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.
  • Page 30 2 Year (730 days) Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ADJ Products, LLC - www.adj.com - Par Z Move User Manual Page 29...
