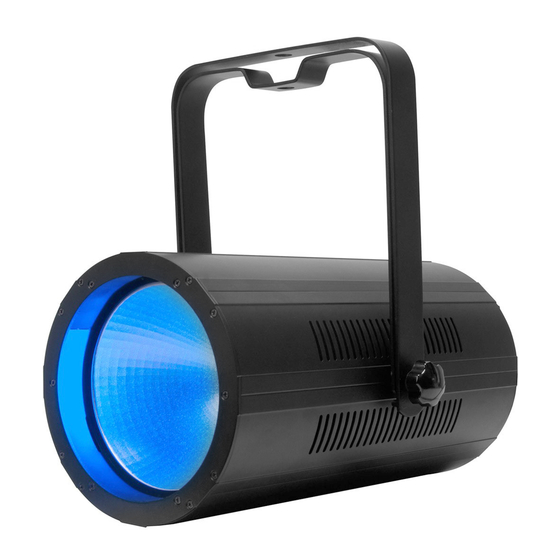

COB CANNON WASH
User Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COB CANNON WASH and is the answer not in the manual?

Questions and answers

Related Manuals for ADJ COB CANNON WASH

Summary of Contents for ADJ COB CANNON WASH

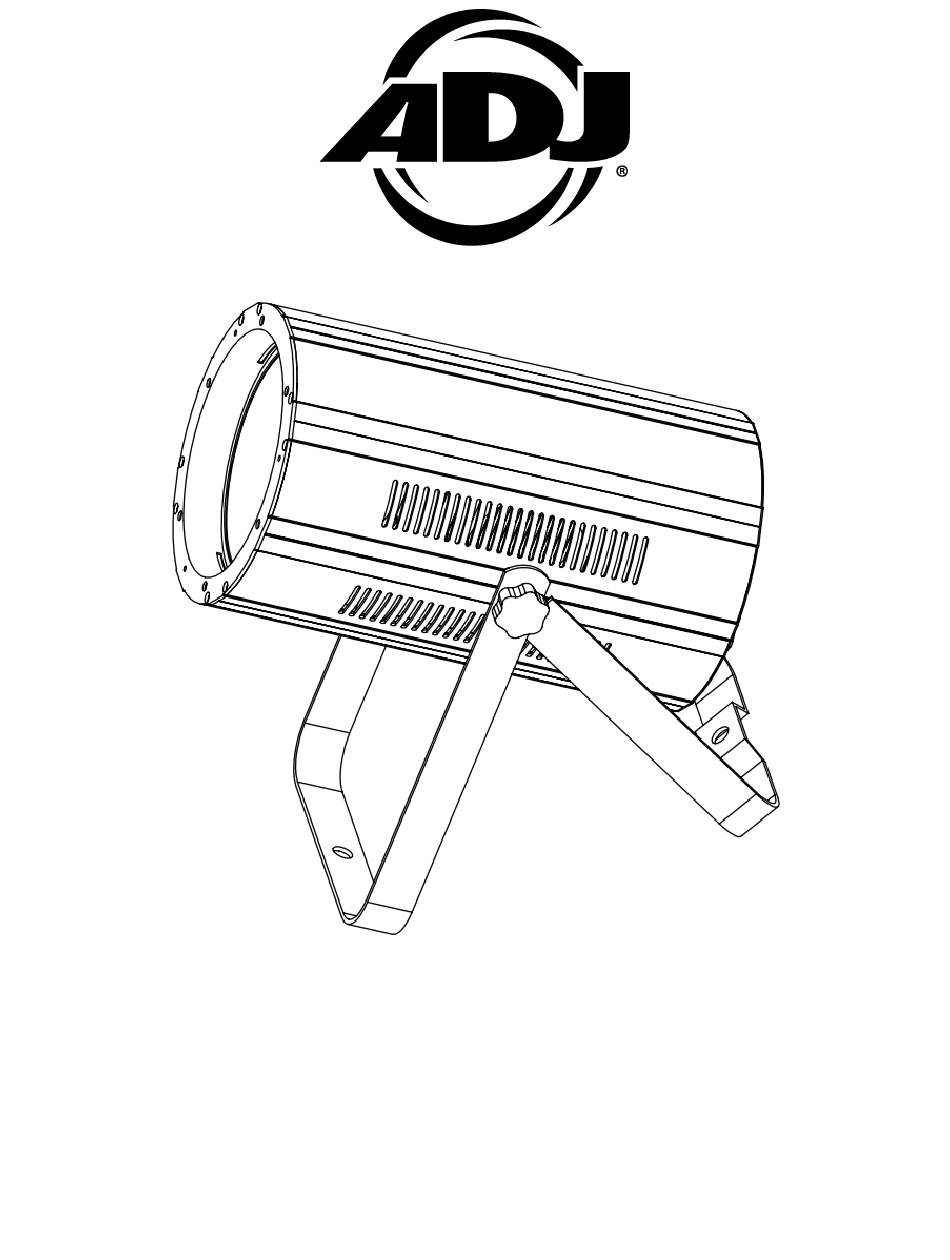

  • Page 1 COB CANNON WASH User Instructions...
  • Page 2 ©2021 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    CONTENTS General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Overview DMX Setup Installation Instructions System Menu DMX Traits: Channel Functions & Values Color Macro Chart Photometric Chart Dimmer Curve Chart UC IR Control and Airstream Control Multiple Unit Power Linking Primary / Secondary Setup Optional Lens / Fuse Replacement / Cleaning Troubleshooting Tips and FAQ...

  • Page 4: General Information

    GENERAL INFORMATION INTRODUCTION Please read and understand all instructions in this manual carefully and thoroughly before attempting to operate these products. These instructions contain important safety and use information. UNPACKING The products in this kit have been thoroughly tested and have been shipped in perfect operating condition.

  • Page 5: Limited Warranty (Usa Only)

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.
  • Page 6 To guarantee a smooth operation, it is important to follow all instructions and guidelines in this man- ual. ADJ PRODUCTS LLC is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual. Only qualified and/ or certified personnel should perform installation of these devices and only the original rigging parts included with these devices should be used for installation.
  • Page 7 SAFETY INSTRUCTIONS AND GUIDELINES DO NOT position devices close to any FLAMMABLE MATERIALS while operating. DO NOT attempt installation and/or operation of devices without knowledge how to do so. DO NOT permit operation by persons who are not qualified to operate these types of devices. DO NOT shake devices, avoid brute force when installing and/or operating.

  • Page 8: Maintenance Guidelines

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside these devices, please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 9: Overview

    OVERVIEW MENU To select the programming functions SET UP To go forward in the selected functions To go backward in the selected functions DOWN To go forward in the selected functions Menu Screen SETUP Button UP Button MODE Button DOWN Button SERVICE PORT POWER OUT POWER IN...

  • Page 10: Dmx Setup

    D M X S E T U P POWER SUPPLY The Cob cannon wash contains an automatic voltage switch, which will auto sense the voltage when it is plugged into the power source. With this switch there is no need to worry about the correct power voltage, this unit can be plugged in anywhere.
  • Page 11 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.

  • Page 12: Installation Instructions

    INSTALLATION INSTRUCTIONS INSTALLATION This unit should be mounted using a mounting clamp (not provided), affixing it to the mounting bracket that is provided with the unit. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support the weight of ten (10) times the unit’s weight and any mounting accessories.

  • Page 13: System Menu

    SYSTEM MENU MODES The COB Cannon Wash has 5 modes: DMX Mode, Manual Dimmer Color Mode, Sound Active Mode, Auto Run Program Mode and Static Color Select Mode. During operation, the display will lock after 30 seconds. To unlock the display, press and hold down the MODE button for 3 seconds to unlock.
  • Page 14 MODE man- SET UP UP/DOWN Instruction manual manual Mode select So01 ~ So16 Select the 16 built-in sound modes SOUND Sensitivity Adjust the sensitivity of the sound-active, SJ-1 is the MODE SJ-1 ~ SJ-8 select lowest level, SJ-8 is the highest level Color Fade AF01 ~ AF16 Select the 16 built-in dreaming mode Color...
  • Page 15 DMX Mode: Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. Press the MODE button to select the DMX mode. DMX Addressing and Channel Mode: This function will allow you to control each individual fixture’s traits with a standard DMX 512 controller.
  • Page 16 Sound Active Mode: In this mode the COB Cannon Wash will react to sound, and chase through the different colors. Press MODE button to select the Sound Active mode Sound Active mode will be displayed as “SoXX” with “XX” representing Sound Active mode (1-8).

  • Page 17: Dmx Traits: Channel Functions & Values

    DMX TRAITS: CHANNEL FUNCTIONS & VALUES DMX CHANNELS / VALUES / FUNCTIONS (11 DMX Channels) SUPPORTS SOFTWARE VERSION ≥ 1.0 MODE / CHANNEL VALUE FUNCTION CH03 CH04 CH05 CH06 CH07 CH09 CH10 COLOR MACROS Color Macro 01 Color Macro 02 9-12 Color Macro 03 13-16...
  • Page 18 DMX CHANNELS / VALUES / FUNCTIONS (11 DMX Channels) SUPPORTS SOFTWARE VERSION ≥ 1.0 MODE / CHANNEL VALUE FUNCTION CH03 CH04 CH05 CH06 CH07 CH09 CH10 129-132 Color Macro 33 133-136 Color Macro 34 137-140 Color Macro 35 141-144 Color Macro 36 145-148 Color Macro 37 149-152...
  • Page 19 DMX CHANNELS / VALUES / FUNCTIONS (11 DMX Channels) SUPPORTS SOFTWARE VERSION ≥ 1.0 MODE / CHANNEL VALUE FUNCTION CH03 CH04 CH05 CH06 CH10 0-255 0-100% GREEN 0-255 0-100% BLUE 0-255 0-100% AMBER 0-255 0-100% SHUTTER / STROBE 0-31 LED OFF 32-63 LED ON 64-95...
  • Page 20 DMX CHANNELS / VALUES / FUNCTIONS (11 DMX Channels) SUPPORTS SOFTWARE VERSION ≥ 1.0 MODE / CHANNEL VALUE FUNCTION CH03 CH04 CH05 CH06 CH07 CH09 CH10 COLOR CHANGE PROGRAMS 0-15 COLOR CHANGE 1 16-31 COLOR CHANGE 2 32-47 COLOR CHANGE 3 48-63 COLOR CHANGE 4 64-79...
  • Page 21 DMX CHANNELS / VALUES / FUNCTIONS (11 DMX Channels) SUPPORTS SOFTWARE VERSION ≥ 1.0 MODE / CHANNEL VALUE FUNCTION CH03 CH04 CH05 CH06 CH7 CH9 CH10 SOUND MODE 0-15 SOUND ACTIVE MODE 1 16-31 SOUND ACTIVE MODE 2 32-47 SOUND ACTIVE MODE 3 48-63 SOUND ACTIVE MODE 4 64-79...

  • Page 22: Color Macro Chart

    COLOR MACRO CHART RGBA Color Intensity RGBA Color Intensity Color Color Value Value Green Blue Amber Green Blue Amber Color1 Color34 129-132 (off) Color2 Color35 133-136 Color3 Color36 137-140 Color4 9-12 Color37 141-144 Color5 13-16 Color38 145-148 Color6 17-20 Color39 149-152 Color7 21-24 Color40 153-156...

  • Page 23: Photometric Chart

    PHOTOMETRIC CHART...

  • Page 24: Dimmer Curve Chart

    DIMMER CURVE CHART DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100 1540 1660...
  • Page 25 The ADJ RFC remote (sold separately) has many different functions and allows you to control your COB Cannon Wash from long distance. The ADJ RFC remote can control your system up to 150ft. To use the RFC you must first activate the fixtures receiver.

  • Page 26: Multiple Unit Power Linking

    “Primary” unit. OPTIONAL LENS CHANGE The COB Cannon Wash comes with an 80-degree lens already attached. Included in the box are optional 40 & 50-degree lenses. To switch lenses simply remove the retainer ring located in front of the current lens.
  • Page 27 4. How many fixtures can be daisy chained together? Up to 5 COB Cannon Wash units can be daisy chained together. (After 5 fixtures you will need to use a new power outlet. They must be the same fixtures. DO NOT mix fixtures!) Use caution when power linking other model fixtures as the power consumption of other model fixtures may exceed the max power output on this fixture.

  • Page 28: Specifications

    Locking power In & Out to daisy chain power (up to 5 fixtures) • 4-button digital DMX display on rear panel • Compatible with the ADJ RFC wireless remote control (sold separately) • Dual yoke allows fixture to be mounted on truss or set on the ground •...
  • Page 29 DIMENSIONS...

  • Page 30: Optional Accessories

    OPTIONAL ACCESSORIES Order Code Description AC5PDMX3 3’ DMX cable with 5-pin male to 5-pin female connection.* AC5PDMX3PRO Pro Series 3’ DMX cable with 5-pin male to 5-pin female connection.* S-Cable/60 Safety Cable with 60-pound weight rating O-CLAMP 360 degree clamp that wraps around truss tubing. PRO-CLAMP 360 degree aluminum clamp with a max rating of 1100 lbs.
