Summary of Contents for ADJ FOCUS SPOT 4Z

  • Page 1 FOCUS SPOT 4Z User Instructions...
  • Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    Operating Instructions Master-Slave Set Up Dimmer Curve Chart Dimensional Drawings Gobo Replacement & Gobos Fuse Replacement I Multiple Unit Power Linking Trouble Shooting I Cleaning Warranty Technical Specifications ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 2...

  • Page 4: Introduction

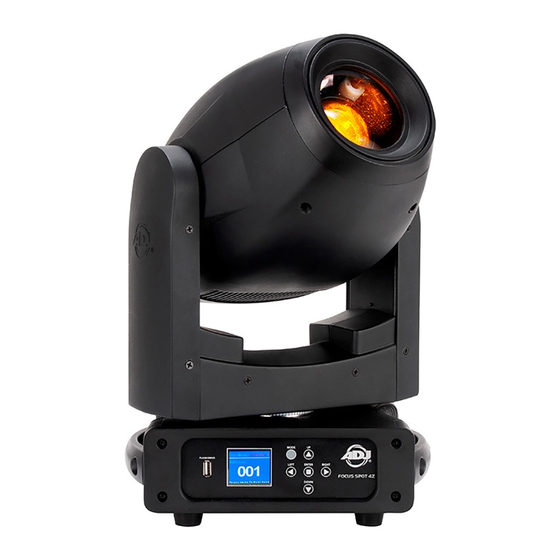

    Do not return this unit to your dealer without first contacting customer support. Introduction: The Focus Spot 4Z is a DMX intelligent, moviing head, LED fixture. This fixture can be used in a stand alone mode or connected in a Master/Slave configuration. The fixture comes equipped with motorized focus and zoom, 6 different dimming options The Focus Spot 4Z has 3 DMX channel modes;...

  • Page 5: Features I Warranty Registration I Installation

    Focus Spot 4Z Warranty Registration The Focus Spot 4Z carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre- paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package.

  • Page 6: Safety Precautions

    B. Objects have fallen, or liquid has been spilled into the fixture. C. The fixture does not appear to operate normally or exhibits a marked change in performance. D. The fixture has fallen and/or subjected to extreme handling. ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 5...

  • Page 7: Installation

    LEDs. This issue is not specific only to ADJ lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.
  • Page 8 These installaiton should be checked by a skilled person once a year. The Focus Spot 4Z is fully operational in three different mounting positions, hanging upside-down from a ceiling or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc.).
  • Page 9 Screw one clamp each via a M12 screw and nut into the Omega bracket. Insert the quick-lock fasteners of the Omega holder’s into the respective holes on the bottom of the Focus Spot 4Z. Tighten the quick- lock fasteners fully clockwise. Pull the safety cable through the openings located on the base plate and over the trussing system or a safe fixation spot.

  • Page 10: Overview

    Service Port powerCON In LED Display Fuse Holder Mode Button 3-Pin XLR Out Up Button 3-Pin XLR In Down Button powerCON Out Left Button Right Button Enter Button ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 9...

  • Page 11: Dmx Set Up

    Data Cable (DMX Cable) Requirements (For DMX Operation): The Focus Spot 4Z can be controlled via DMX-512 protocol. The Focus Spot 4Z has 3 DMX channel modes. The DMX address is set on the front panel of the Focus Spot 4Z. Your unit and your DMX controller require a standard 3-pin XLR connector...
  • Page 12 Pin 1 Data Compliment (- signal) Pin 2 Pin 2 Data True (+ signal) Pin 3 Pin 3 Not Used Do Not Use Not Used Do Not Use ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 11...

  • Page 13: Dmx Addressing

    In the case of the Focus Spot 4Z, when in 16 channel mode you should set the starting DMX address of the first unit to 1, the second unit to 17 (16 + 1), the third unit to 33 (17 + 16), and so on. (See the chart below for more details.)

  • Page 14: Dmx Channel Modes & Values

    Gobo Wheel Clockwise Rotation Fast-Slow 222-223 Nothing 224-255 Gobo Wheel Counter-Clockwise Rotation Slow-Fast Gobo rotation: 000-127 Gobo Rotation Indexing 128-191 Gobo Rotation Clockwise Fast-Slow 192-255 Gobo Rotation Counter-Clockwise Slow-Fast ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 13...
  • Page 15 Counter-Clockwise Rotation Slow-Fast 000-255 Prism 2 Indexing Fine 16-bit: Focus: 000-255 Continuous adjustment from far to near Zoom: 000-255 Zoom from min. to max.beam angle 000-255 Zoom Fine 16-bit: ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 14...
  • Page 16 240-255 No Function Focus Spot 4Z Gobos Inner Diameter: 19mm Outer Diameter: 23mm Thickness: 0.5mm Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 15...

  • Page 17: System Menu

    02~60m <05m> FlipDisplay ON/OFF LCD.Set Key Lock ON/OFF/ON1 Disp Flash ON/OFF Chan.Value PAN …… Disp.Set Slave Set Slave1,Slave2,Slave3 Auto.Prog Master / Alone USB Update OFF/ON DFSE ON/OFF ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 16...
  • Page 18 Program 3 Edit.Prog Program 1 Program Test Step 01=SCxxx PROGRAM Program 9 Step 64=SCxxx Edit.Scene Edit Scene 001 Pan,Tilt, …… ~ Edit Scene 250 Fade Time Secne Time ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 17...

  • Page 19: Operating Instructions

    4. Either “Hold” (Last DMX setting), “Black” (Blackout), or “Auto” (Auto Program) will be displayed, use the UP or DOWN buttons to scroll through the options. 5. Press the ENTER button to confirm your selection or press the MODE button to exit. ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 18...
  • Page 20 4. Either “Off” or “On” will be displayed. Use the UP or DOWN buttons to find your desired setting. 5. Press the ENTER button to confirm your selection or press the MODE button to exit. ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 19...
  • Page 21 3. Either “Celsius” or “Fahrenheit” will be displayed, use the UP or DOWN buttons to find your desired setting. 4. Press the ENTER button to confirm your selection or press the MODE button to exit. ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 20...

  • Page 22: Trouble Shooting I Cleaning

    4. “05m” (5 minutes) will be displayed, this is the default setting. Use the LEFT or RIGHT buttons to adjust the shutoff time between 02m-60m or “Off”. 5. Press the ENTER button to confirm your selection or press the MODE button to exit. ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 21...
  • Page 23 DMX channel that you would like to check. When you press ENTER the DMX value of that channel will displayed. 5. Press the MODE button to exit. ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 22...
  • Page 24 4. Press the ENTER button to confirm your selection or press the MODE button to exit. USB UPGRADE FILE - This submenu is used for any future software updates. Check www.adj.com and this units webpage for any software updates. Download the software update to a flash stick and plug the flash stick into the Service Port slot located on the front of the unit.
  • Page 25 2. Press the UP or DOWN buttons until “Fan Speed” is highlighted, then press ENTER. 3. The current fan speeds of “Fan1” and “Fan2” will now be displayed. 4. Press the ENTER or MODE button to exit. ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 24...
  • Page 26 ERROR INFO - This submenu will display any function errors that may occur. If any error warnings appear and you are not certain on what form of action needs to be taken, please contact ADJ customer support for more information.
  • Page 27 Edit.Scene – This function allows the user to edit or define the actual scenes that are stored in the user defined built-in programs that are accessed in the previous step. ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 26...

  • Page 28: Master-Slave Set Up

    • Either “Slave 1”, “Slave 2”, or “Slave 3” will be displayed. Use the UP or DOWN buttons to find your desired slave setting. 5. Press the ENTER button to confirm your selection. ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 27...

  • Page 29: Dimmer Curve Chart

    Down Time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 1100 1660 Stage 2 ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 28...

  • Page 30: Dimensional Drawings

    Focus Spot 4Z Dimensional Drawing 10.94” / 277.79mm 7.15” / 181.49mm 3.41” / 86.5mm 9.07” / 230.36mm 6.85” / 174mm 10.97” / 278.61mm 11.07” / 281.27mm ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 29...

  • Page 31: Gobo Replacement & Gobos

    7. Reassemble the unit. Focus Spot 4Z Gobos Inner Diameter: 19mm Outer Diameter: 23mm Thickness: 0.5mm Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 30...

  • Page 32: Fuse Replacement I Multiple Unit Power Linking

    3. Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog resi- due, dust, dew). ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 31...

  • Page 33: Warranty

    ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.

  • Page 34: Technical Specifications

    2 Year (730 days) Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 33...
