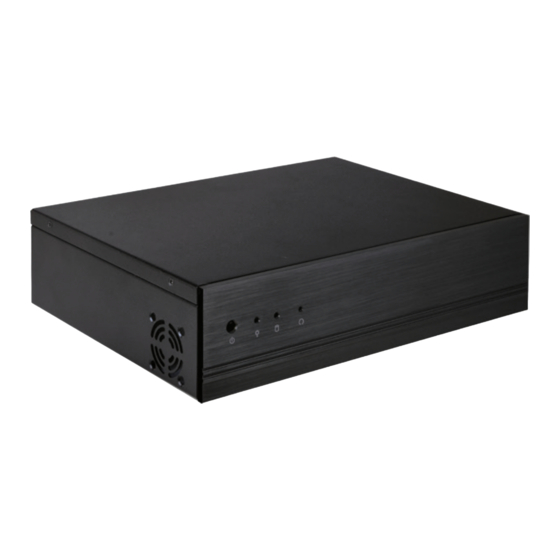

- Page 1 All manuals and user guides at all-guides.com DT122-SB Installation Guide Package Contents • 1 DT122-SB system unit • 1 HDD drive bay kit • 1 Quick Installation Guide • 1 CD disk includes: - Drivers/Manual Optional Items • Power Cord...
-
Page 2: Front View
All manuals and user guides at all-guides.com Front View Reset Button Power LED Power Button HDD LED Rear View PS/2 Mouse COM 2 Expansion slot LAN 1-2 USB 2.0 COM 1 Line-in DVI-I (DVI-D Signal) PS/2 KB Line-out Mic-in... -
Page 3: Key Features
All manuals and user guides at all-guides.com Key Features DT122-SB ® PROCESSOR 3rd/2nd Generation Intel Core processors ® CHIPSET Intel 2 LAN ports 2 COM ports DISPLAYS 1 DVI-I, 1 VGA 4 Type A USB 2.0/1.1 ports AUDIO Mic-in, Line-in, Line-out... -
Page 4: Removing The Chassis Cover
All manuals and user guides at all-guides.com Removing the Chassis Cover 1. Make sure the system and all other peripheral devices connected to it has been powered-off. 2. Disconnect all power cords and cables. 3. The 4 mounting screws on the sides of the system are used to secure the cover to the chassis. - Page 5 All manuals and user guides at all-guides.com 4. After removing the mounting screws, slide the cover backwards. Slide the Cover Backward 5. The DIMM sockets and SATA drive bay are readily accessible after removing the chassis cover. 2.5"/3.5" SATA drive bay DIMM socket...
- Page 6 All manuals and user guides at all-guides.com Installing a 2.5" or 3.5" SATA Drive lnstalling a 2.5" SATA Drive 1. Remove the 4 mounting screws that secure the drive bay to the system. Mounting screw Drive bay Mounting screw 2. Turn to the other side of the drive bay and remove the 4 mounting screws that secure the HDD brackets to the drive bay.
- Page 7 All manuals and user guides at all-guides.com 3. Align the mounting holes of the SATA drive with the mounting holes on the HDD bracket and then use the provided mounting screws to secure the drive in place. Mounting screw SATA drive Mounting screw HDD bracket...
- Page 8 All manuals and user guides at all-guides.com 4. Turn to the other side of the drive bay. Use the provided mounting screws from step 2 to secure the SATA drive (with HDD bracket) onto the drive bay. Drive bay Mounting screw Mounting screw 5.
- Page 9 All manuals and user guides at all-guides.com 6. Connect the SATA data cable and SATA power cable to the connectors on the SATA drive. SATA power SATA data cable cable...
- Page 10 All manuals and user guides at all-guides.com lnstalling a 3.5" SATA Drive 1. Remove the 4 mounting screws that secure the drive bay to the system. Mounting screw Drive bay Mounting screw 2. Insert the spacer into the anti-shock bumper. You will fi...
- Page 11 All manuals and user guides at all-guides.com 4. Use the provided mounting screws to secure the SATA drive onto the drive bay. Mounting screw Mounting screw Drive bay 5. Place the drive bay into the chassis. Secure the drive bay with the mounting screws you removed in step 1. Mounting screw Mounting screw 6.
- Page 12 All manuals and user guides at all-guides.com Installing the PCI or PCIe x16 Expansion Card Important: When inserting the riser card, please select a card within 175mm (as shown on the next picture). 1. The PCIe x16 slot on the motherboard is used to in- sert a TS200-1P and TS200-1E riser card.
- Page 13 All manuals and user guides at all-guides.com Bracket Mounting bracket and mounting screw T200-1P PCI slot T200-1E PCIe x16 slot...
- Page 14 All manuals and user guides at all-guides.com 2. Insert the Expansion card with a bracket into the PCI or PCIe x16 slot that is on the riser card. Replace the screw you removed in step 1 to secure the bracket in place.
-
Page 15: Board Layout And Jumper Settings
All manuals and user guides at all-guides.com Board Layout and Jumper Settings COM1(JP3), COM2(JP5): 3Gb/s 6Gb/s RS232/Power select System fan COM1(JP1), COM2(JP6): RS232/422/485 select PS/2 power select (J Mouse ATX power DIO power COM3 COM4 Battery Fintek F81217U Intel Power-on select ( Standby Front Power LED...
