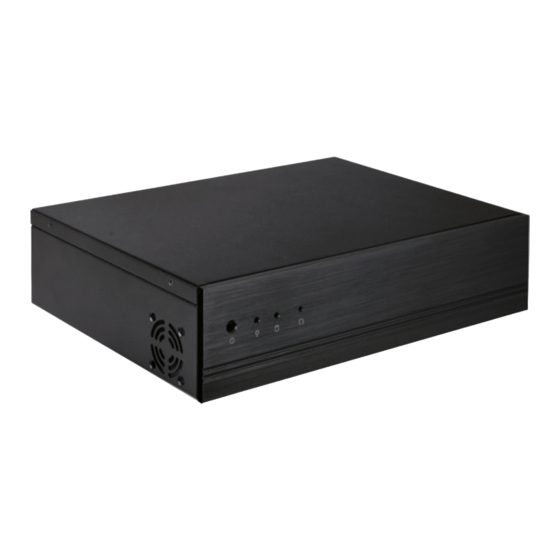

DT122-SB
Desktop Box PC
User's Manual
A25620342
1
Chapter 1 Introduction
www.dfi .com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT122-SB and is the answer not in the manual?

Questions and answers

Related Manuals for DFI DT122-SB

Summary of Contents for DFI DT122-SB

  • Page 1 DT122-SB Desktop Box PC User’s Manual A25620342 Chapter 1 Introduction www.dfi .com...

  • Page 2: Copyright

    Copyright FCC and DOC Statement on Class B This equipment has been tested and found to comply with the limits for a Class B digital This publication contains information that is protected by copyright. No part of it may be reproduced in any device, pursuant to Part 15 of the FCC rules.

  • Page 3: Table Of Contents

    Chapter 6 - Mounting Options .............. 30 Key Features ....................6 Specifications Wall Mount ....................7 ....................30 Getting to Know the DT122-SB .............. 8 Chapter 7 - BIOS Setup Mechanical Dimensions ................32 ................9 Motherboad Dimensions ................9 Overview .......................

  • Page 4: About This Manual

    About this Manual Static Electricity Precautions An electronic file of this manual is included in the CD. To view the user’s manual in the CD, in- It is quite easy to inadvertently damage your PC, system board, components or devices even sert the CD into a CD-ROM drive.

  • Page 5: About The Package

    • Unplug the power cord before removing the system chassis cover for installation or servic- ing. After installation or servicing, cover the system chassis before plugging the power cord. • 1 DT122-SB system unit • 1 HDD drive bay kit •...

  • Page 6: Chapter 1 - Introduction

    Chapter 1 Chapter 1 - Introduction Key Features Overview DT122-SB ® PROCESSOR 3rd/2nd Generation Intel Core processors ® CHIPSET Intel 2 LAN ports 2 COM ports DISPLAYS DVI-I (DVI-D Signal), 1 VGA 4 Type A USB 2.0/1.1 ports 2 Type A USB 2.0/1.1 ports (optional)

  • Page 7: Specifications

    Chapter 1 Specifications Processor System • Processors: I/O Ports • Front Panel ® - 1 Power button - 3rd generation Intel Core processors (22nm process technology) ® : Intel Core i5-3550S (6M Cache, up to 3.7GHz); 65W - 1 Reset button ®...

  • Page 8: Getting To Know The Dt122-Sb

    Chapter 1 Getting to Know the DT122-SB Front View Bottom View PS/2 Mouse Reset Button COM 2 Expansion slot Power LED LAN 1-2 USB 2.0 COM 1 Line-in DVI-I PS/2 KB Line-out Mic-in Power Button (DVI-D Signal) HDD LED Power Button VGA Port Press to power-on or power-off the system.

  • Page 9: Mechanical Dimensions

    Chapter 1 Mechanical Dimensions Motherboard Dimensions 10.16 10.16 Rear View 0.00 22.86 46.94 Left View Right View 300.00 Front View SB100 146.43 154.94 154.94 159.84 Chapter 1 Introduction www.dfi .com...

  • Page 10: Chapter 2 - Getting Started

    Chapter 2 Chapter 2 - Getting Started Preparing the System Before you start using the system, you need the following items: • SATA hard drive • AC power adapter • PS/2 or USB keyboard • PS/2 or USB mouse • CD-ROM drive (for installing software/drivers) •...

  • Page 11: Chapter 3 - Installing Devices

    Chapter 3 Chapter 3 - Installing Devices 5. The DIMM sockets and SATA drive bay are readily accessible after removing the chassis cover. 1. Make sure the system and all other peripheral devices connected to it has been powered-off. 2. Disconnect all power cords and cables. 3.

  • Page 12: Installing A 2.5" Or 3.5" Sata Drive

    Chapter 3 Installing a 2.5" or 3.5" SATA Drive 3. Align the mounting holes of the SATA drive with the mounting holes on the HDD bracket and then use the provided mounting screws to secure the drive in place. Installing a 2.5” SATA Drive 1.
  • Page 13 Chapter 3 4. Turn to the other side of the drive bay. Use the provided mounting screws from step 2 to 6. Connect the SATA data cable and SATA power cable to the connectors on the SATA drive. secure the SATA drive (with HDD bracket) onto the drive bay. Drive bay Mounting screw Mounting screw...

  • Page 14: Installing A 3.5" Sata Drive

    Chapter 3 lnstalling a 3.5" SATA Drive 4. Use the provided mounting screws to secure the SATA drive onto the drive bay. 1. Remove the 4 mounting screws that secure the drive bay to the system. Mounting screw Mounting screw Mounting screw Drive bay Drive bay...

  • Page 15: Installing The Pci And Pcie X16 Expansion Card

    Chapter 3 Installing the PCI or PCIe x16 Expansion Card Important: When inserting the riser card, Bracket please select a card within 175mm (as shown on the next Mounting bracket and picture). mounting screw 1. The PCIe x16 on the motherboard is used to insert a TS200-1P or TS200-1E riser card. T200-1P To install the expansion card, you need to remove the mounting bracket and the mounting PCI slot...
  • Page 16 Chapter 3 2. Insert the Expansion card with a bracket into the PCI or PCIe x16 slot that is on the riser card. Replace the screw you removed in step 1 to secure the bracket in place. Bracket Mounting bracket and mounting screw Expansion card...

  • Page 17: Chapter 4 - Jumper Settings

    Chapter 4 Chapter 4 - Jumper Settings PS/2 Power Select Clear CMOS 1-2 On: Normal 2-3 On: 1-2 On: +5V 2-3 On: (default) Clear CMOS Data (default) +5V_standby If you encounter the following, JP2 is used to select the power of the PS/2 keyboard and PS/2 mouse ports. Selecting +5V_ standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.

  • Page 18: Usb Power Select

    Chapter 4 USB Power Select Power-on Select 1-2 On: Power-on via power button (default) USB 2-5 (JP7) 2-3 On: USB 0-1/8-9 (JP4) Power-on via AC power; or Power-on via WOL after G3 1-2 On: +5V 2-3 On: (default) +5V_standby To power-on via WOL after G3: These jumpers are used to select the power of the USB ports.

  • Page 19: Com 1 / Com 2 Rs232/422/485 Select

    Chapter 4 COM 1/ COM 2 RS232/RS422/RS485 Select COM1/COM2 RS232/Power Select COM 2 COM 1 1-3 (RI), 2-4 (DCD) On: JP1 (for COM1) and JP6 (for COM2) are used to configure the COM ports to RS232, RS422 RS232 (default) (Full Duplex) or RS485. The pin function of the COM ports will vary according to the jumper’s setting.

  • Page 20: Chapter 5 - Ports And Connectors

    Chapter 5 Chapter 5 - Ports and Connectors Bottom Panel I/O Ports PS/2 Mouse and PS/2 Keyboard PS/2 Mouse PS/2 Mouse COM 2 LAN 1-2 PS/2 KB USB 2.0 COM 1 Line-in PS/2 KB DVI-I Line-out Mic-in (DVI-D Signal) The rear panel I/O ports consist of the following: •...

  • Page 21: Com (Serial) Ports

    Chapter 5 COM (Serial) Ports VGA Port COM 3 COM 4 COM 2 COM 1 COM 1 and COM 2: RS232/422/485 COM 3 and COM 4: RS232 The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port.

  • Page 22: Dvi-I Port

    Chapter 5 DVI-I Port RJ45 LAN Ports DVI-I (DVI-D signal only) LAN 1 LAN 2 The DVI-I port is used to connect an LCD monitor. This port supports DVI-D signal only. Features Connect the display device’s cable connector to the DVI-I port. After you plug the cable con- nector into the port, gently tighten the cable screws to hold the connector in place.

  • Page 23: Usb Ports

    Chapter 5 USB Ports Wake-On-USB Keyboard/Mouse The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function: • Jumper Setting JP4 and JP7 must be set to “2-3 On: +5V_standby”.

  • Page 24: Audio

    Chapter 5 Audio BIOS Setting Configure the onboard audio in the Chipset menu (“South Bridge” submenu) of the BIOS. Re- fer to chapter 7 for more information. Driver Installation Rear audio Install the audio driver. Refer to chapter 8 for more information. Mic-in Line-in Line-out...

  • Page 25: I/O Connectors

    Chapter 5 I/O Connectors Digital I/O Connector S/PDIF Connector DIO connector DIO power SPDIF out connector Ground SPDIF in The Digital I/O connector provides powering-on function to external devices that are connected to these connectors. The S/PDIF connector is used to connect an external S/PDIF port. Your S/PDIF port may be mounted on a card-edge bracket.

  • Page 26: Sata (Serial Ata) Connectors

    Chapter 5 SATA (Serial ATA) Connectors Cooling Fan Connectors SATA 3.0 6Gb/s SATA 2.0 3Gb/s SATA 4 SATA 0 Ground Sense Power System fan SATA 1 SATA 5 Speed Control Sense Power Ground CPU fan The fan connectors are used to connect cooling fans. The cooling fans will provide adequate airflow throughout the chassis to prevent overheating the CPU and system board components.

  • Page 27: Chassis Intrusion Connector

    Chapter 5 Power Connectors Chassis Intrusion Connector Ground Chassis signal +12V +12V Ground Ground The board supports the chassis intrusion detection function. Connect the chassis intrusion sensor cable from the chassis to this connector. When the system’s power is on and a chassis intrusion occurred, an alarm will sound.

  • Page 28: Standby Power Led

    Chapter 5 Standby Power LED Front Panel Connectors PWR-LED Standby HDD-LED Power LED PWR-BTN RESET-SW This LED will lit red when the system is in the standby mode. It indicates that there is power HDD-LED - HDD LED on the system board. Power-off the PC and then unplug the power cord prior to installing any devices.

  • Page 29: Expansion Slots

    Chapter 5 Expansion Slots Battery Battery PCI Express x16 The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source PCI Express x16 Slot of power when the main power is shut off. Install PCI Express x16 graphics card, that comply to the PCI Express specifications, into the Safety Measures PCI Express x16 slot.

  • Page 30: Chapter 6 - Mounting Options

    Chapter 6 Chapter 6 - Mounting Options 2. At the sides of the system, use the mounting screws removed in step 1 to secure the wall mount brackets on each side of the system. Wall Mount There are 2 types of wall mount brackets: Wall mount bracket •...
  • Page 31 Chapter 6 Type B wall mount kit include: • 2 type B wall mount brackets • Bracket screws 1. The 4 mounting holes on the sides of the system are used to mount the type B wall mount bracket. Ø8.50 R2.50 5.00 5.00...

  • Page 32: Chapter 7 - Bios Setup

    Chapter 7 Chapter 7 - BIOS Setup Legends Overview Keys Function The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. Right and Left arrows Moves the highlight left or right to select a menu.

  • Page 33: Ami Bios Setup Utility

    Chapter 7 AMI BIOS Setup Utility Advanced The Advanced menu allows you to configure your system for basic operation. Some entries are Main defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference. The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
  • Page 34 Chapter 7 ACPI Power Management Configuration PC Health Status This section is used to configure the ACPI Power Management. This section displays the SIO hardware health monitor. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Advanced Smart Fan Function...
  • Page 35 Chapter 7 Boundary 1 to Boundary 4 Trusted Computing (optional) The range is from 0-127. This section configures settings relevant to Trusted Computing innovations. Speed Count 1 to Speed Count 5 Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Advanced The range is from 1-100.
  • Page 36 Chapter 7 CPU Configuration SATA Configuration This section is used to configure the CPU. It will also display the detected CPU information. This section is used to configure SATA functions. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
  • Page 37 Chapter 7 If AHCI or RAID is selected in the SATA Mode field, it will display the following information: Intel TXT (LT) Configuration This section is used to configure the Intel Trusted Execution technology. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
  • Page 38 Chapter 7 AMT Configuration USB Configuration This section is used to configure the AMT function. This section is used to configure USB. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Advanced Intel AMT...
  • Page 39 Chapter 7 Second Super IO Configuration F71879 Super IO Configuration This section is used to configure the I/O functions supported by the onboard Super I/O chip. This section is used to configure the serial port functions. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.

  • Page 40: Chipset

    Chapter 7 Chipset Network Stack This section configures settings relevant to the network stack Configuration. This section is to configure relevant chipset functions. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Advanced Main Advanced...
  • Page 41 Chapter 7 South Bridge PCI Express Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset Chipset PCI Express Confi guration Enable/Disable LAN. Intel PCH RC Version 1.5.0.0 PCI Express Confi...
  • Page 42 Chapter 7 North Bridge Graphics Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset Chipset System Agent Bridge Name Sandy Bridge Check to enable VT-d Graphics Confi guration Select which of IGFX/ System Agent RC Version 1.5.0.0...
  • Page 43 Chapter 7 Memory Configuration NB PCIe Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset Chipset Memory Information NB PCIe Confi guration Confi gure PEG B0:D1:F0 Not Present Gen1-Gen3.

  • Page 44: Boot

    Chapter 7 Boot ME Subsystem Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Chipset Boot Security Save & Exit Boot Confi guration Number of seconds to Intel ME Subsystem Confi...

  • Page 45: Security

    Chapter 7 Security CSM Parameters Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Boot Password Description Set Setup Administrator Launch CSM [Enabled] This option controls if Password...

  • Page 46: Save & Exit

    Chapter 7 Save & Exit Updating the BIOS To update the BIOS, you will need the new BIOS file and a flash utility, AFUDOS.EXE. Please Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. contact technical support or your sales representative for the files. Main Advanced Chipset...

  • Page 47: Chapter 8 - Supported Software

    Chapter 8 Chapter 8 - Supported Software Intel Chipset Software Installation Utility The CD that came with the system board contains drivers, utilities and software applications The Intel Chipset Software Installation Utility is used for updating Windows ® required to enhance the performance of the system board. files so that the Intel chipset can be recognized and configured properly in the system.
  • Page 48 Chapter 8 Microsoft DirectX 9.0C (for Windows XP only) 3. Go through the readme document for system re- quirements and installation To install the utility, click “Microsoft DirectX 9.0C” on the main menu. tips then click Next. 1. Click “I accept the agreement”...
  • Page 49 Chapter 8 Microsoft .NET Framework 3.5 (for Windows XP only) 3. Click Exit. Note: Before installing Microsoft .NET Framework 3.5, make sure you have updated your Windows XP operating system to Service Pack 3. To install the driver, click “Microsoft .NET Framework 3.5” on the main menu. 1.
  • Page 50 Chapter 8 Intel Graphics Drivers (for Windows Vista) 2. Read the license agreement then click Yes. To install the driver, click “Intel Graphics Drivers” on the main menu. 1. Setup is now ready to install the graphics driver. Click Next. 3.
  • Page 51 Chapter 8 Intel Graphics Drivers (for Windows XP) 5. Click “Yes, I want to restart this computer now” then click Finish. To install the driver, click “Intel Graphics Drivers” on the main menu. Restarting the system will 1. Setup is ready to install the allow the new software graphics driver.
  • Page 52 Chapter 8 Audio Drivers 4. Setup is currently installing the driver. After installation has completed, click Next. To install the driver, click “Audio Drivers” on the main menu. 1. Setup is now ready to install the audio driver. Click Next. 2.
  • Page 53 Chapter 8 Intel LAN Drivers 4. Click Install to begin the installation. To install the driver, click “Intel LAN Drivers” on the main menu. 1. Setup is ready to install the driver. Click Next. 5. After completing installa- tion, click Finish. 2.
  • Page 54 Chapter 8 Intel Management Engine Interface 4. Setup is currently installing the driver. After installation To install the driver, click “Intel Management Engine Interface” on the main menu. has completed, click Next. 1. Setup is ready to install the driver. Click Next. 5.
  • Page 55 Chapter 8 MyGuard Hardware Monitor 7. Setup is currently installing the utility. 1. Locate for the MyGuard folder in the provided disc. 2. In the MyGuard folder, right-click on the “setup” file. 3. Select Run As Administrator. 4. Double-click Setup. Important: Perform steps 1-3 only when using Windows 7 or Windows...

  • Page 56: Adobe Acrobat Reader

    Chapter 8 F6 Floppy Configuration Utility Adobe Acrobat Reader 9.3 This is used to create a floppy driver diskette needed when you install Windows XP using the To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu. ®...
  • Page 57 Chapter 8 Infineon TPM Driver and Tool (optional) 4. Click “I accept the terms in the license agreement” and then click “Next”. To install the driver, click “Infineon TPM driver and tool (option)” on the main menu. 1. TPM requires installing the Microsoft Visual C++ pack- age prior to installing the driver.
  • Page 58 Chapter 8 7. Click Install. Click Yes to restart the system. Restarting the system will allow the new software installation to take effect. 8. The setup program is cur- rently installing the driver. 9. Click Finish. Chapter 8 Supported Software www.dfi...

  • Page 59: Chapter 9 - Raid

    Chapter 9 Chapter 9 - Raid Settings The system board allows configuring RAID on Serial ATA drives. It supports RAID 0, RAID 1, RAID 5 and RAID 10. To enable the RAID function, the following settings are required. RAID Levels 1.
  • Page 60 Chapter 9 Step 4: Install the RAID Driver During OS Installation Step 5: Install the Intel Rapid Storage Drivers The RAID driver must be installed during the Windows XP or Windows 2000 installation us- The Intel Rapid Storage Drivers can be installed from within Windows. It allows RAID volume ®...
  • Page 61 Chapter 9 5. Read the license agree- 8. Click “Yes, I want to restart ment then click Yes. my computer now” then click Finish. 6. Go through the readme document to view system requirements and installa- tion information then click Next.

  • Page 62: Chapter 10 - Intel Amt Settings

    Chapter 10 Chapter 10 - Intel AMT Settings Enable Intel AMT in the AMI BIOS ® Overview 1. Power-on the system then press <Del> to enter the main menu of the AMI BIOS. Intel Active Management Technology (Intel ® AMT) combines hardware and software solution to 2.

  • Page 63: Extension (Mebx) Screen

    Chapter 10 Enable Intel AMT in the Intel Management Engine BIOS 4. In the Save & Exit menu, select Save Changes and Reset then select OK. ® ® Extension (MEBX) Screen Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. 1.
  • Page 64 Chapter 10 3. Enter a new password in the space provided under Intel(R) ME New Password then press 4. You will be asked to verify the password. Enter the same new password in the space pro- Enter. The password must include: vided under Verify Password then press Enter.
  • Page 65 Chapter 10 6. Select Change Intel(R) ME Password then press Enter. Select Local FW Update then press Enter. Select Enabled then press Enter. You will be prompted for a password. The default password is “admin”. Enter the default password in the space provided under Intel(R) ME New Password then press Enter. Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Copyright(C) 2003-12 Intel Corporation.
  • Page 66 Chapter 10 In the Intel(R) ME Power Control menu, select Intel(R) ME ON in Host Sleep Select Previous Menu until you return to the Main Menu. Select Intel(R) AMT Con- States then press Enter. Select an option then press Enter. figuration then press Enter.
  • Page 67 Chapter 10 In the Intel(R) AMT Configuration menu, select SOL/IDER/KVM then press Enter. In the SOL/IDER/KVM menu, select SOL then press Enter. Select disabled then press Enter. Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Copyright(C) 2003-12 Intel Corporation.
  • Page 68 Chapter 10 Select Enabled then press Enter. In the SOL/IDER/KVM menu, select KVM then press Enter. Select disabled then press Enter. Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Copyright(C) 2003-12 Intel Corporation. All Rights Reserved. Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Copyright(C) 2003-12 Intel Corporation.
  • Page 69 Chapter 10 In the User Consent Configuration menu, select User Opt-in then press Enter. Select Select Previous Menu until you return to the Intel(R) AMT Configuration menu. Select None then press Enter. Password Policy then press Enter. You may choose to use a password only during setup and configuration or to use a pass- Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 word anytime the system is being accessed.
  • Page 70 Chapter 10 In the Intel(R) Network Setup menu, select Intel(R) ME Network Name Settings Select Domain Name then press Enter. Enter the computer’s domain name then press then press Enter. Enter. Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Copyright(C) 2003-12 Intel Corporation.
  • Page 71 Chapter 10 Select Dynamic DNS Update then press Enter. Select Enabled or Disabled then press In the TCP/IP Settings menu, select Wired LAN IPV4 Configuration then press Enter. Enter. Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Copyright(C) 2003-12 Intel Corporation.
  • Page 72 Chapter 10 In the Intel(R) AMT Configuration menu, select Unconfigure Network Access then In the Intel(R) Automated Setup And Configuration menu, select Current Provi- press Enter. Type Y then press Enter. sioning Mode then press Enter. Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Copyright(C) 2003-12 Intel Corporation.
  • Page 73 Chapter 10 Select Previous Menu until you return to the Intel(R) Automated Setup And Config- In the Intel(R) Remote Configuration menu, select Start Configuration then press uration menu. Select Provisioning Server IPV4/IPV6 then press Enter. Type server Enter. Type Y then press Enter. address then press Enter.
  • Page 74 Chapter 10 Select Previous Menu until you return to the Intel(R) Automated Setup And Con- In the Intel(R) Remote Configuration menu, select Set PID and PPS ** then press Enter. Type PID code then press Enter. figuration menu. Select TLS PKI then press Enter. Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Copyright(C) 2003-12 Intel Corporation.
  • Page 75 Chapter 10 In the Intel(R) Remote Configuration menu, select PKI DNS Suffix then press Select Previous Menu until you return to the Main Menu. Select Exit then press Enter. Enter. Type PKI DNS Suffix then press Enter. Type Y then press Enter. Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441 Copyright(C) 2003-12 Intel Corporation.

  • Page 76: Appendix A - Nlite And Ahci Installation Guide

    Appendix A Appendix A - NLITE and AHCI Installation Guide 4. Insert the XP installation disc into an optical drive. nLite 5. Launch nLite. The Welcome screen will appear. Click nLite is an application program that allows you to customize your XP installation disc by Next.
  • Page 77 Appendix A 7. Click Next. 9. Click Insert and then select Multiple driver folder to select the drivers you will integrate. Click Next. Select only the drivers ap- 8. In the Task Selection dialog propriate for the Windows box, click Drivers and version that you are using Bootable ISO.
  • Page 78 Appendix A If you are uncertain of The program is currently the southbridge chip used integrating the drivers on your motherboard, and applying changes to select all RAID/AHCI the installation. controllers and then click When the program is finished applying the changes, click Next.
  • Page 79 Appendix A To create an image, You have finished cus- select the Create Image tomizing the Windows mode under the General XP installation disc. Click section and then click Finish. Next. Enter the BIOS utility to configure the SATA con- troller to RAID/AHCI.
  • Page 80 Appendix A AHCI 5. In the Hardware Update Wizard dialog box, select “No, not this time” then The installation steps below will guide you in configuring your SATA drive to AHCI mode. click Next. 1. Enter the BIOS utility and configure the SATA controller to IDE mode. 2.
  • Page 81 Appendix A A warning message 8. Click “Have Disk”. appeared because the se- lected SATA controller did not match your hardware device. Ignore the warning and click Yes to proceed. Click Finish. 9. Select C:\AHCI\iaAHCI.inf and then click Open. The system’s settings have been changed.

  • Page 82: Appendix B - Watchdog Sample Code

    Appendix B Appendix B - Watchdog Sample Code ;Software programming example: ;--------------------------------------------- ;(1) Enter Super IO Confi guration mode ;--------------------------------------------- DX,2EH AL,87H DX,AL DX,AL ;------------------------------------------------------------------------------------------- ;(2) Confi guration Logical Device 7, register CRF5/CRF6 (WDT Control /WDT timer) ;------------------------------------------------------------------------------------------- DX,2EH AL,07H ;Ready to Program Logical Device DX,AL DX,2FH...

  • Page 83: Appendix C - System Error Message

    Appendix C Appendix C - System Error Message Hard Disk(s) fail (20) When the BIOS encounters an error that requires the user to correct something, either a beep HDD initialization error. code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in Hard Disk(s) fail (10) the information box at the bottom.

  • Page 84: Appendix D - Troubleshooting Checklist

    Appendix D Appendix D - Troubleshooting Checklist The picture seems to be constantly moving. Troubleshooting Checklist 1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync. 2. Move away any objects, such as another monitor or fan, that may be creating a magnetic This chapter of the manual is designed to help you with problems that you may encounter field around the display.

  • Page 85: Hard Drive

    Appendix D Hard Drive System Board 1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is Hard disk failure. loose, power off the system, re-install the card and power up the system. 1.
