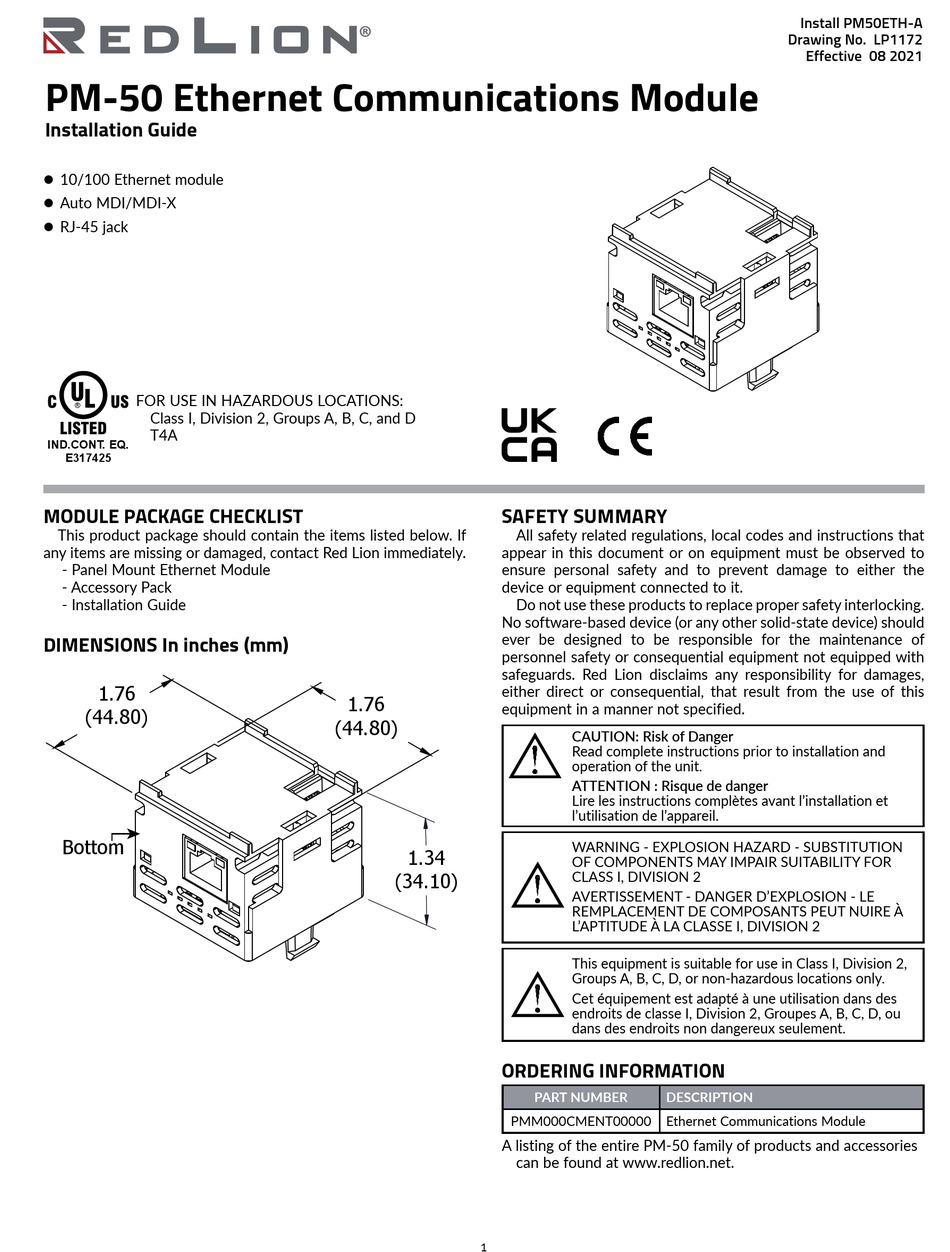

PM-50 Ethernet Communications Module
Installation Guide
z 10/100 Ethernet module
z Auto MDI/MDI-X
z RJ-45 jack
U L
FOR USE IN HAZARDOUS LOCATIONS:
C C
US
US
R
Class I, Division 2, Groups A, B, C, and D
LISTED
T4A
IND.CONT. EQ.
E317425

MODULE PACKAGE CHECKLIST

This product package should contain the items listed below. If
any items are missing or damaged, contact Red Lion immediately.
- Panel Mount Ethernet Module
- Accessory Pack
- Installation Guide
DIMENSIONS In inches (mm)
1.76
(44.80)
Bottom

SAFETY SUMMARY

appear in this document or on equipment must be observed to
ensure personal safety and to prevent damage to either the
device or equipment connected to it.
No software-based device (or any other solid-state device) should
ever be designed to be responsible for the maintenance of
personnel safety or consequential equipment not equipped with
safeguards. Red Lion disclaims any responsibility for damages,
either direct or consequential, that result from the use of this
1.76
equipment in a manner not specified.
(44.80)
1.34
(34.10)

ORDERING INFORMATION

PMM000CMENT00000
A listing of the entire PM-50 family of products and accessories
1
All safety related regulations, local codes and instructions that
Do not use these products to replace proper safety interlocking.
CAUTION: Risk of Danger
Read complete instructions prior to installation and
operation of the unit.
ATTENTION : Risque de danger
Lire les instructions complètes avant l'installation et
l'utilisation de l'appareil.
WARNING - EXPLOSION HAZARD - SUBSTITUTION
OF COMPONENTS MAY IMPAIR SUITABILITY FOR
CLASS I, DIVISION 2
AVERTISSEMENT - DANGER D'EXPLOSION - LE
REMPLACEMENT DE COMPOSANTS PEUT NUIRE À
L'APTITUDE À LA CLASSE I, DIVISION 2
This equipment is suitable for use in Class I, Division 2,
Groups A, B, C, D, or non-hazardous locations only.
Cet équipement est adapté à une utilisation dans des
endroits de classe I, Division 2, Groupes A, B, C, D, ou
dans des endroits non dangereux seulement.
PART NUMBER
DESCRIPTION
can be found at www.redlion.net.
Install PM50ETH-A
Drawing No. LP1172
Effective 08 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-50 and is the answer not in the manual?

Questions and answers

Summary of Contents for red lion PM-50

  • Page 1 I, Division 2, Groupes A, B, C, D, ou dans des endroits non dangereux seulement. ORDERING INFORMATION PART NUMBER DESCRIPTION PMM000CMENT00000 Ethernet Communications Module A listing of the entire PM-50 family of products and accessories can be found at www.redlion.net.
  • Page 2 Storage Temperature Range: -40 to 85 °C Vibration to IEC 68-2-6: Operational 5-500 Hz, 2 g Note: The PM-50 4.3 inch host accepts a maximum of 5 Shock to IEC 68-2-27: Operational 20 g modules while the 3.5 inch host accepts a maximum of 3.
  • Page 3 Once the latches are disengaged, pull on the module and remove it from the assembly. GREEN (ON) 100 BASE-TX Communications On the side label of each PM-50 Ethernet module is a unique 12-digit MAC address. LEDs LED/STATE...
  • Page 4 COPYRIGHT ©2021 Red Lion Controls, Inc. All rights reserved. Red Lion and the Red Lion logo are trademarks of Red Lion Controls, Inc. All other company and product names are trademarks of their respective owners. LIMITED WARRANTY (a) Red Lion Controls Inc. (the “Company”) warrants that all Products shall be free from defects in material and workmanship under normal use for the period of time provided in “Statement of Warranty Periods”...
