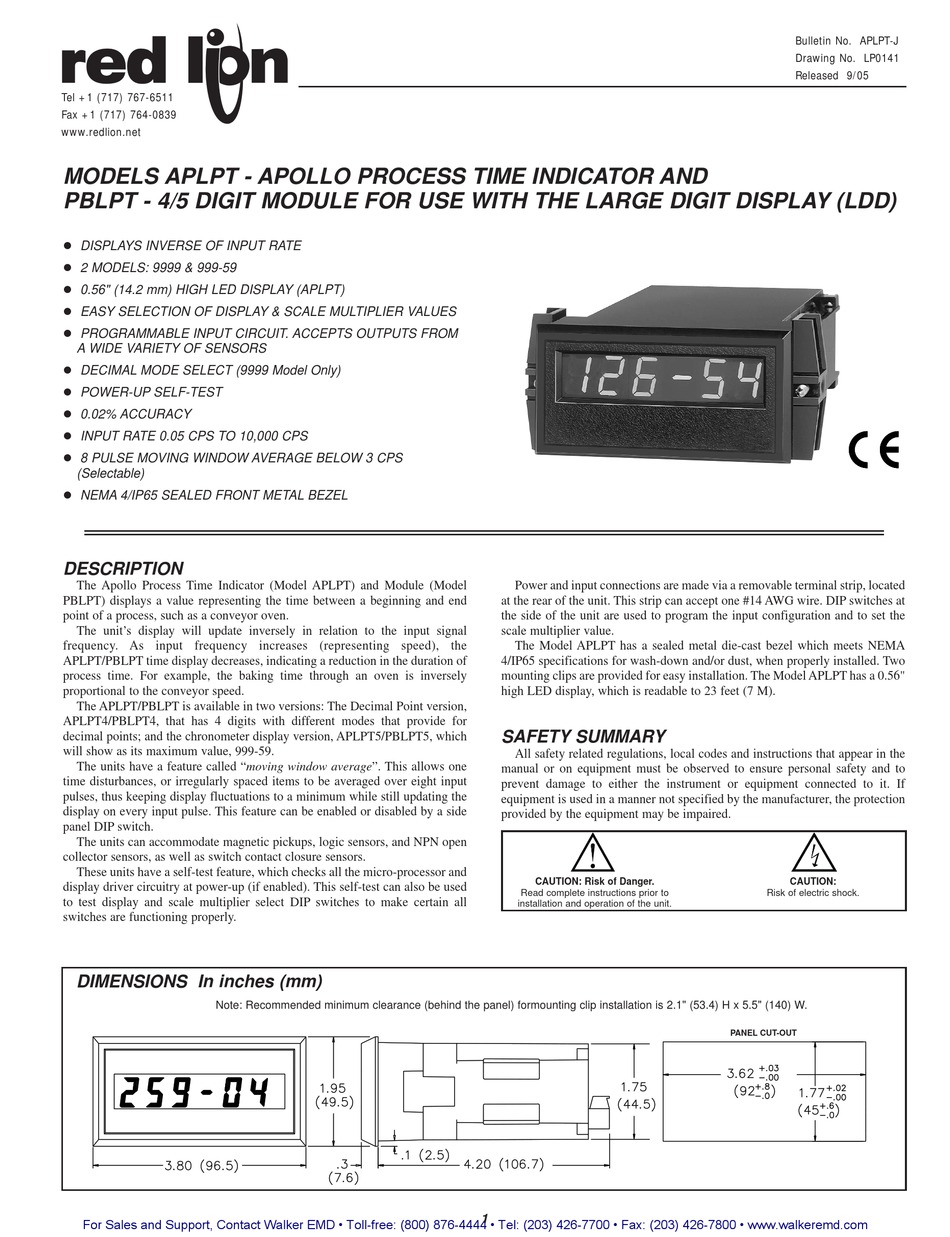

MODELS APLPT - APOLLO PROCESS TIME INDICATOR AND
PBLPT - 4/5 DIGIT MODULE FOR USE WITH THE LARGE DIGIT DISPLAY (LDD)
! DISPLAYS INVERSE OF INPUT RATE
! 2 MODELS: 9999 & 999-59
! 0.56" (14.2 mm) HIGH LED DISPLAY (APLPT)
! EASY SELECTION OF DISPLAY & SCALE MULTIPLIER VALUES
! PROGRAMMABLE INPUT CIRCUIT. ACCEPTS OUTPUTS FROM
A WIDE VARIETY OF SENSORS
! DECIMAL MODE SELECT (9999 Model Only)
! POWER-UP SELF-TEST
! 0.02% ACCURACY
! INPUT RATE 0.05 CPS TO 10,000 CPS
! 8 PULSE MOVING WINDOW AVERAGE BELOW 3 CPS
(Selectable)
! NEMA 4/IP65 SEALED FRONT METAL BEZEL
DESCRIPTION

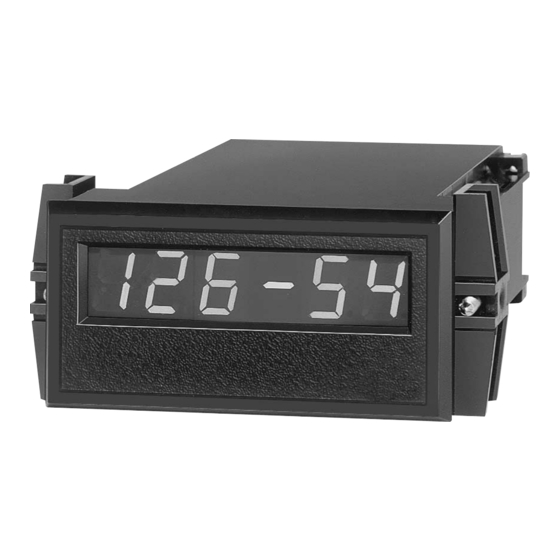

The Apollo Process Time Indicator (Model APLPT) and Module (Model
PBLPT) displays a value representing the time between a beginning and end
point of a process, such as a conveyor oven.
The unit's display will update inversely in relation to the input signal
frequency. As input frequency increases (representing speed), the
APLPT/PBLPT time display decreases, indicating a reduction in the duration of
process time. For example, the baking time through an oven is inversely
proportional to the conveyor speed.
The APLPT/PBLPT is available in two versions: The Decimal Point version,
APLPT4/PBLPT4, that has 4 digits with different modes that provide for
decimal points; and the chronometer display version, APLPT5/PBLPT5, which
will show as its maximum value, 999-59.
The units have a feature called "moving window average". This allows one
time disturbances, or irregularly spaced items to be averaged over eight input
pulses, thus keeping display fluctuations to a minimum while still updating the
display on every input pulse. This feature can be enabled or disabled by a side
panel DIP switch.
The units can accommodate magnetic pickups, logic sensors, and NPN open
collector sensors, as well as switch contact closure sensors.
These units have a self-test feature, which checks all the micro-processor and
display driver circuitry at power-up (if enabled). This self-test can also be used
to test display and scale multiplier select DIP switches to make certain all
switches are functioning properly.
DIMENSIONS In inches (mm)
Note: Recommended minimum clearance (behind the panel) formounting clip installation is 2.1" (53.4) H x 5.5" (140) W.
For Sales and Support, Contact Walker EMD • Toll-free: (800) 876-4444 • Tel: (203) 426-7700 • Fax: (203) 426-7800 • www.walkeremd.com
Power and input connections are made via a removable terminal strip, located
at the rear of the unit. This strip can accept one #14 AWG wire. DIP switches at
the side of the unit are used to program the input configuration and to set the
scale multiplier value.
The Model APLPT has a sealed metal die-cast bezel which meets NEMA
4/IP65 specifications for wash-down and/or dust, when properly installed. Two
mounting clips are provided for easy installation. The Model APLPT has a 0.56"
high LED display, which is readable to 23 feet (7 M).
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
1
Bulletin No. APLPT-J
Drawing No. LP0141
Released 9/05
CAUTION:
Risk of electric shock.
PANEL CUT-OUT
