Pedal Assist Mode LCD Screen

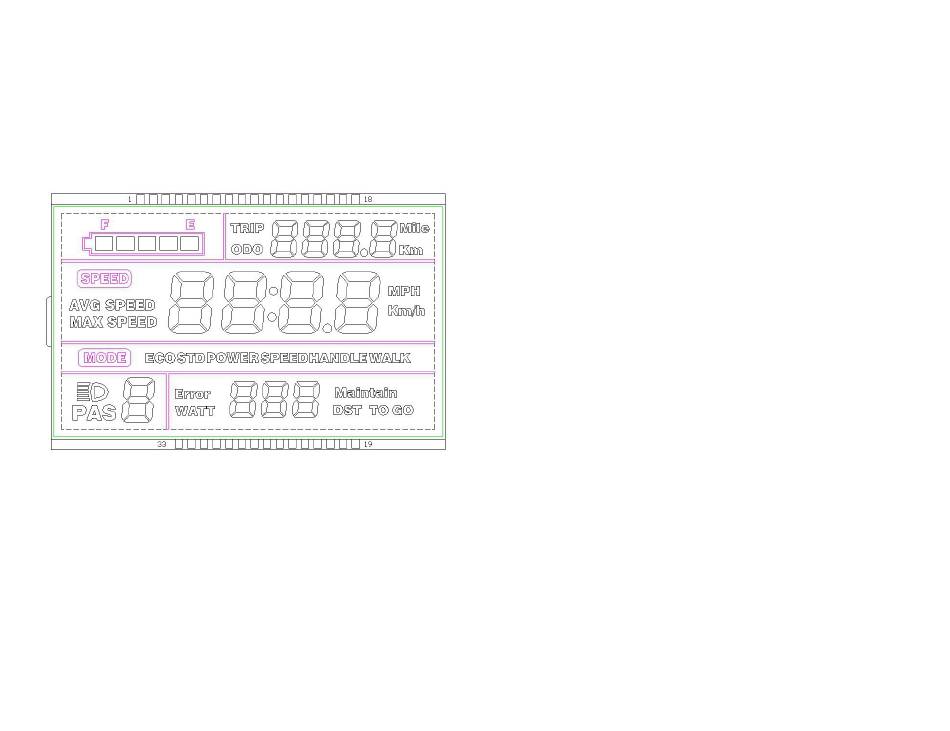

The LCD shows: Speed, Motor Power Ratio Disp l ay, Battery Leve l ,
Error Indication, Tota l Mi l eage, Sing l e trip mi l eage, Cruise Contro l ,
Sing l e Running Time, Light on. To tum the meter on, make sure the
battery is fully inserted into the bike and the on/off switch is in the on
"On" position.
Press the power button (M button) on the two button selector
located near the left grip on the handlebars to tum the meter on.
You can adjust the pedal assist power level to have more power by
hitting the [ UP arrow] and can move to a lower level power by hitting
the [DOWN arrow] button.
When not riding the bike, you can tum off the meter by holding down
the power button (M button) for several seconds.
1-Power On/Off
Press the M button to power on the display. To power off display and power
supply to the bicycle press and hold for 3 seconds
3-Riding Mode
The system has 5 PAS assistance modes , use the UP/DOWN buttons to
scroll between modes: Eco, Standard, Power, Speed, Walk and push.
4-Distance Display
Assistance-Level
Press the M button once to toggle between ODO/TRIP/ERROR CODE/
POWER WATTS/MAINTENACE INDICATOR/DISTANCE TO GO
5-Riding Time
The riding time will be saved up to 100 hours unless you reset it
6-Battery Level Indicator
Indicates battery level, there are 5 levels, each segment stands for 20% charge
7-Speed Indicator
Shows the speed either in MPH or KM/h. The speed section will show current
speed, maximum speed, average speed and measuring unit (MPH or KM/h)
8-PAS Level
assistance. Use the+ - b uttons to switch between PAS levels
9-Settings
Unit (0: KM; 1: MILE), P03: Voltage Class: 48V (default), P04:
Hibernation Time (0: never, other figures refer to the hibernation
time) Unit: minute
P05: Power Gear – 0/3 Gear Mode: Gear 1: 2V Gear 2: 3V Gear 3:
4V 1/5, P06: Wheel Diameter Unit: inch (Precision: 0.1)
P07: Magnet Steel Number for Speed Test Range: 1-100, P08:Speed
Limit
Display functions
Located on the bottom left section, it indicates the level of motor
P01: Back-light Brightness (1: darkest; 3: brightest), P02: Mileage
